Suzuki 2004 VL800 User Manual

--- -._- ---------- ---
--------. -- -
---------_..

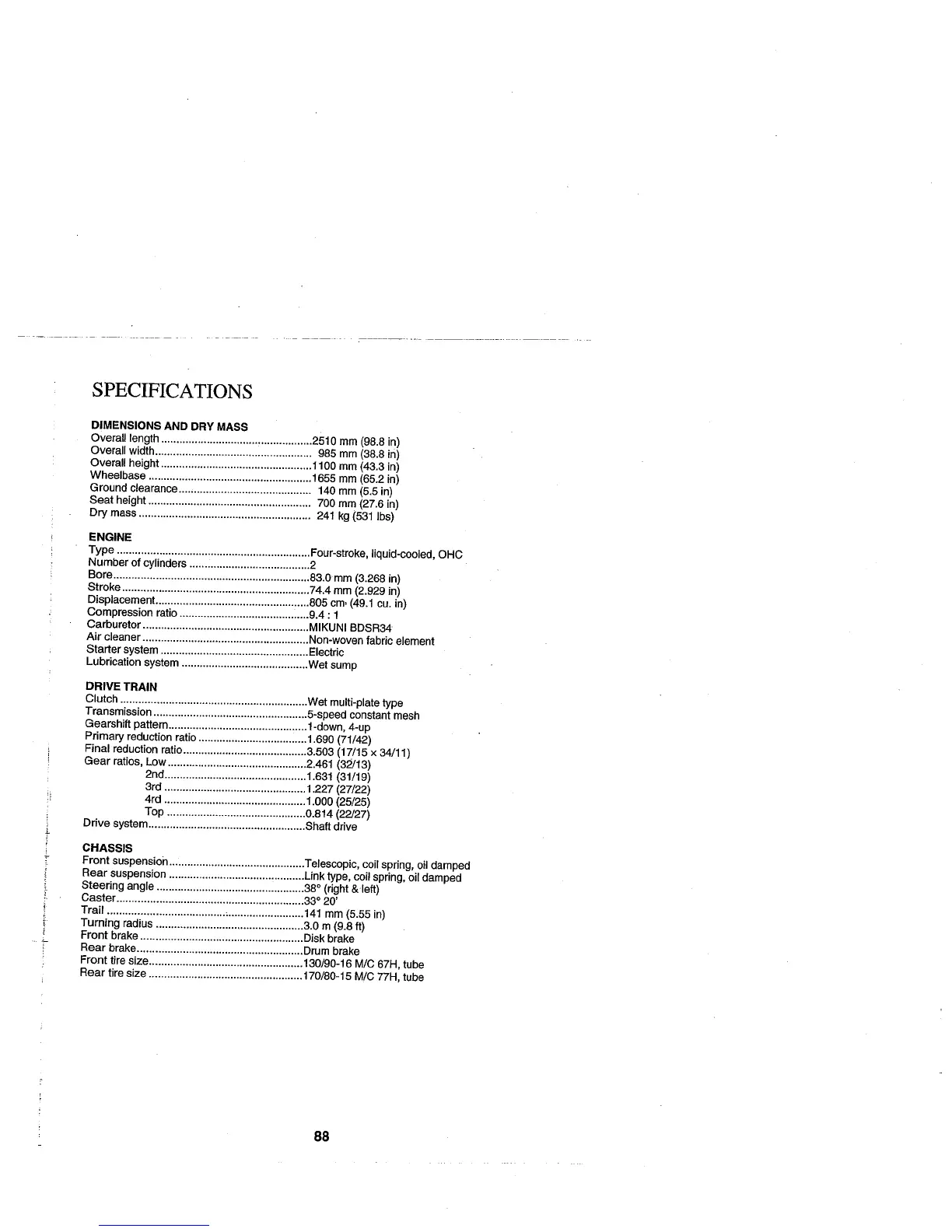

SPECIFICATIONS
DIMENSIONS AND DRY MASS
Overall length ................................,................2510 mm (98.8 in)
Overall width................................................... 985 mm (38.8 in)
Overall height...............................................1100 mm (43.3 in)
Wheelbase ...................................................1655 mm (65.2 in)
Ground clearance.......................................... 140 mm (5.5 in)
Seat height ..................................................... 700 mm (27.6 in)
Dry mass ..................................................... 241 kg (531 Ibs)
ENGINE
Type ........ """"" ................... ........................... Four-stroke, liquid-cooled, OHC
Number of cylinders .......................................2
Bore.............................................................83.0mm (3.268 in)
Stroke.............................................................74.4 mm (2.929 in)
Displacement.............................................805 em. (49.1 cu. in)
Compression ratio ........................................9.4 : 1
Carburetor """"".""""'.""'""""" ...................MIKUNI BDSR34
Air cleaner .....................................................Non-woven fabric element
Starter system................................................. Electric
Lubrication system ........................................Wet sump
DRIVE TRAIN
Clutch .............................................................Wet multi-plate type
Transmission ...... ...... .......................................5-speed constant mesh
Gearshift pattem.............................................1-down, 4-up
Primary reduction ratio .................................1.690 (71/42)
Final reduction ratio........................................3.503 (17/15 x 34/11)
Gear ratios, Low............................................2.461 (32/13)
2nd.............................................1.631 (31/19)
3rd ............................................1.227 (27/22)
4rd ...........................................1.000 (25/25)
Top .............................................0.814 (22/27)
Drive system....... """"".""'"'''''''''''''' .............Shaft drive
CHASSIS
Front suspensioii............................................Telescopic, coil spring, oil damped
Rear suspension ..........................................Link type. coil spring, oil damped
Steering angle ..............................................38° (right &
left)
Caster """"""""""'.""""""" ..........................33° 20'
Trail.......................................,.........................141 mm (5.55 in)
Turning radius ................................................3.0 m (9.8 ft)
Front brake ....................................................Disk brake
Rear brake...... ......... ..................... ...................Drum brake
Front tire size..................................................130/90-16 M/C 67H, tube
Rear tire size ................................................170/80-15 M/C 77H, tube
88
---

Suzuki 2004 VL800 Specifications

General

Manufacturer	Suzuki
Model	VL800
Year	2004
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Single disc brake
Rear Brakes	Drum brake
Front Tire	130/90-16
Rear Tire	170/80-15
Seat Height	700 mm (27.6 in)
Ground Clearance	140 mm (5.5 in)
Engine Type	4-stroke, liquid-cooled, 45° V-twin
Rear Suspension	oil damped
Overall Width	985 mm
Wheelbase	1, 655 mm
Curb Weight	246 kg
Category	Cruiser
