Suzuki 2004 VL800 User Manual

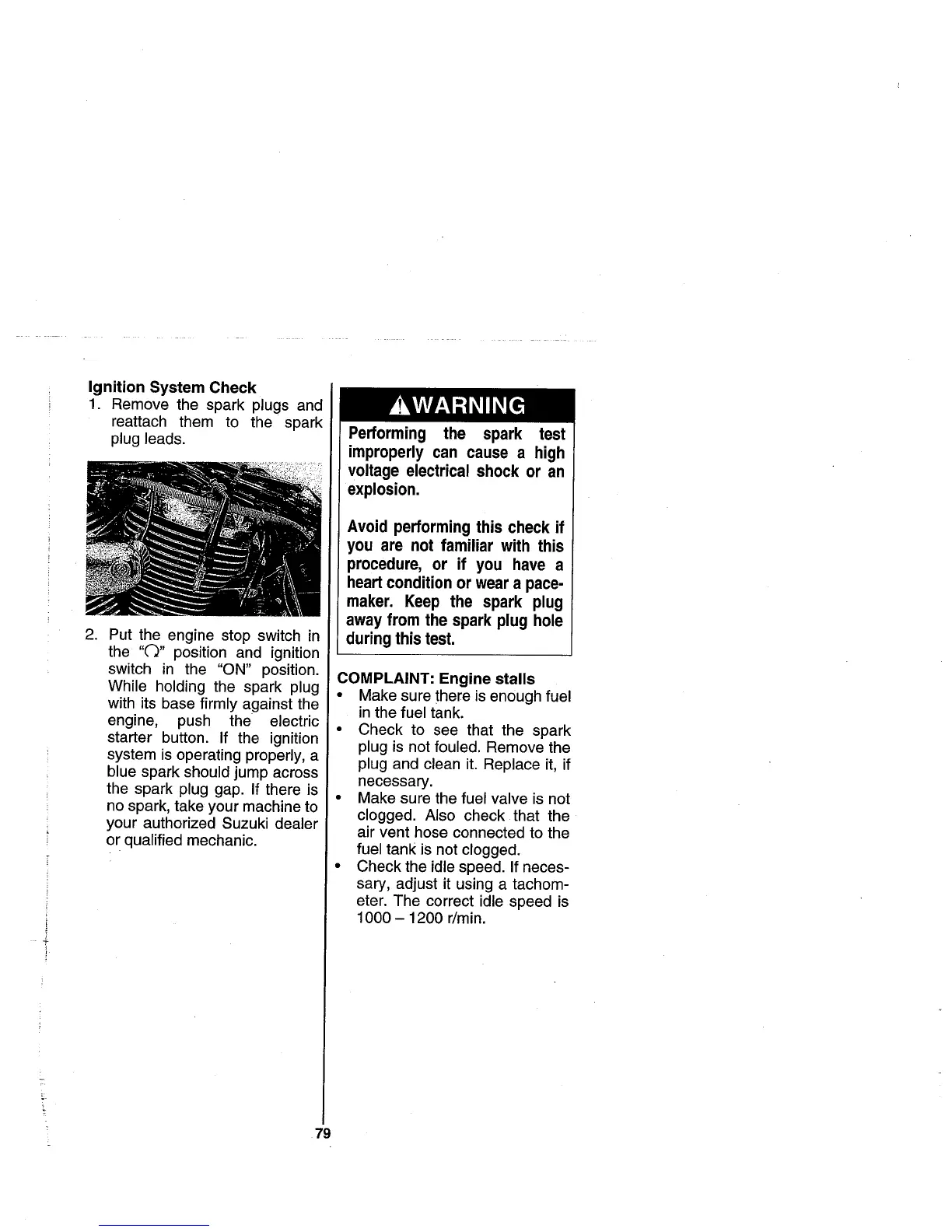

Ignition System Check
1. Remove the spark plugs and
reattach them to the spark
plug leads.
2. Put the engine stop switch in
the "0" position and ignition
switch in the "ON" position.
While holding the spark plug
with its base firmly against the
engine, push the electric
starter button. If the ignition
system is operating properly, a
blue spark should jump across
the spark plug gap. If there is
no spark, take your machine to
your authorized Suzuki dealer
or qualified mechanic.
.-
Performing the spark test
improperly can cause a high
voltage electrical shock or an
explosion.
Avoid performing this check if
you are not familiar with this
procedure, or if you have a
heart condition or wear a pace-
maker. Keep the spark plug
away from the spark plug hole
during this test.
COMPLAINT: Engine stalls
. Make sure there is enough fuel
in the fuel tank.
. Check to see that the spark
plug is not fouled. Remove .th~
plug and clean it. Replace it, if
necessary.
. Make sure the fuel valve is not
clogged. Also check that the
air vent hose connected to the
fuel tank is not clogged.
. Check the idle speed. If neces-
sary, adjust it using a tachorr-
eter. The correct idle speed is
1000 - 1200 r/min.
79

Suzuki 2004 VL800 Specifications

General

Manufacturer	Suzuki
Model	VL800
Year	2004
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Single disc brake
Rear Brakes	Drum brake
Front Tire	130/90-16
Rear Tire	170/80-15
Seat Height	700 mm (27.6 in)
Ground Clearance	140 mm (5.5 in)
Engine Type	4-stroke, liquid-cooled, 45° V-twin
Rear Suspension	oil damped
Overall Width	985 mm
Wheelbase	1, 655 mm
Curb Weight	246 kg
Category	Cruiser
