6-12
INSPECTION AND MAINTENANCE
52SS0-01E
Drive Belt
Check that the drive belt tension is correct
while the engine is stopped. If the belt is
too loose, insufficient battery charging,
engine overheating, poor air conditioning,
or excessive belt wear can result. When
you push the belt with your thumb midpoint
between the pulleys, there should be a
deflection according to the following chart.
The belts should also be examined to
ensure that they are not damaged.
If you need to replace or adjust the belt,
have it done by a SUZUKI dealer or a qual-
ified workshop.

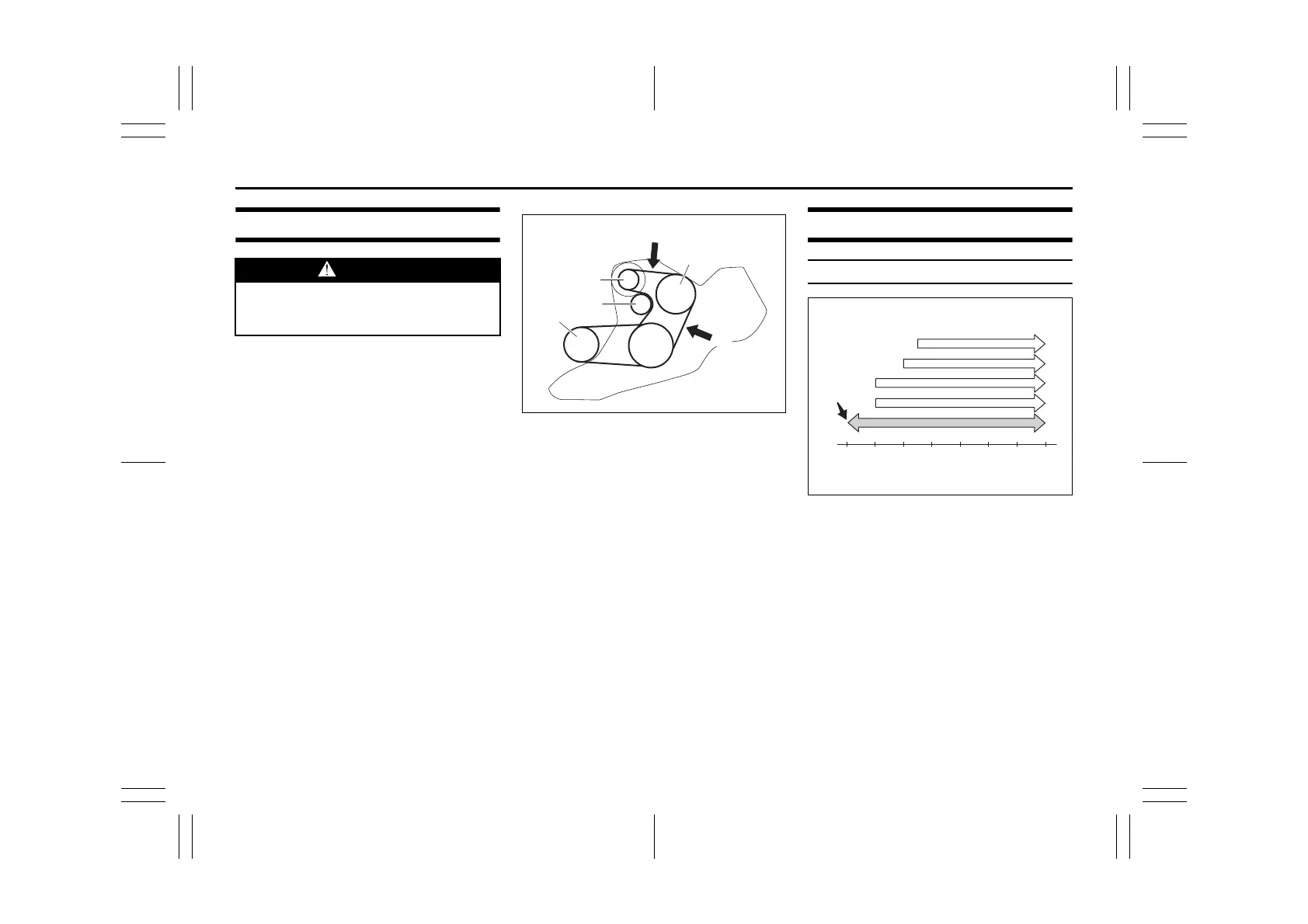

52SS60010
(1) Water pump
(2) Generator
(3) T
ensioner pulley
(4) Air conditioner compressor (if equipped)
Drive belt deflection
(100 N (10 kg, 22 lbs) press)
(a) New:
4.8 - 5.9 mm (0.19 - 0.23 in.)
Readjustment:
7.2 - 8.2 mm (0.28 - 0.32 in.)
(b) New:
4.0 - 5.0 mm (0.16 - 0.20 in.)
Readjustment:
6.1 - 7.1 mm (0.24 - 0.28 in.)
Engine Oil and Filter
Specified Oil
52SS60500
(1) Preferred
Check that the engine oil you use comes
under the quality classification of SG, SH,
SJ, SL, SM or SN. Select the appropriate
oil viscosity according to the above chart.
SAE 5W-30 (1) is the best choice for good
fuel economy and good startability in cold
weather.
NOTE:
We recommend that you use SUZUKI gen-
uine oil. To purchase it, visit a SUZUKI
dealer or a qualified workshop.
WARNING
When the engine is running, keep
hands, hair, clothing, tools, etc. away
from the moving fan and drive belts.
(2)
(b)
(1)
(4)
(3)
(a)
-30 -20 -10 0 10 20 30 40
-22 -4 14 32 50 68 86 104
20W-40
15W-40
10W-40
10W-30
5W-30
(1)
o
C
o
F
