6-21
INSPECTION AND MAINTENANCE
52SS0-01E

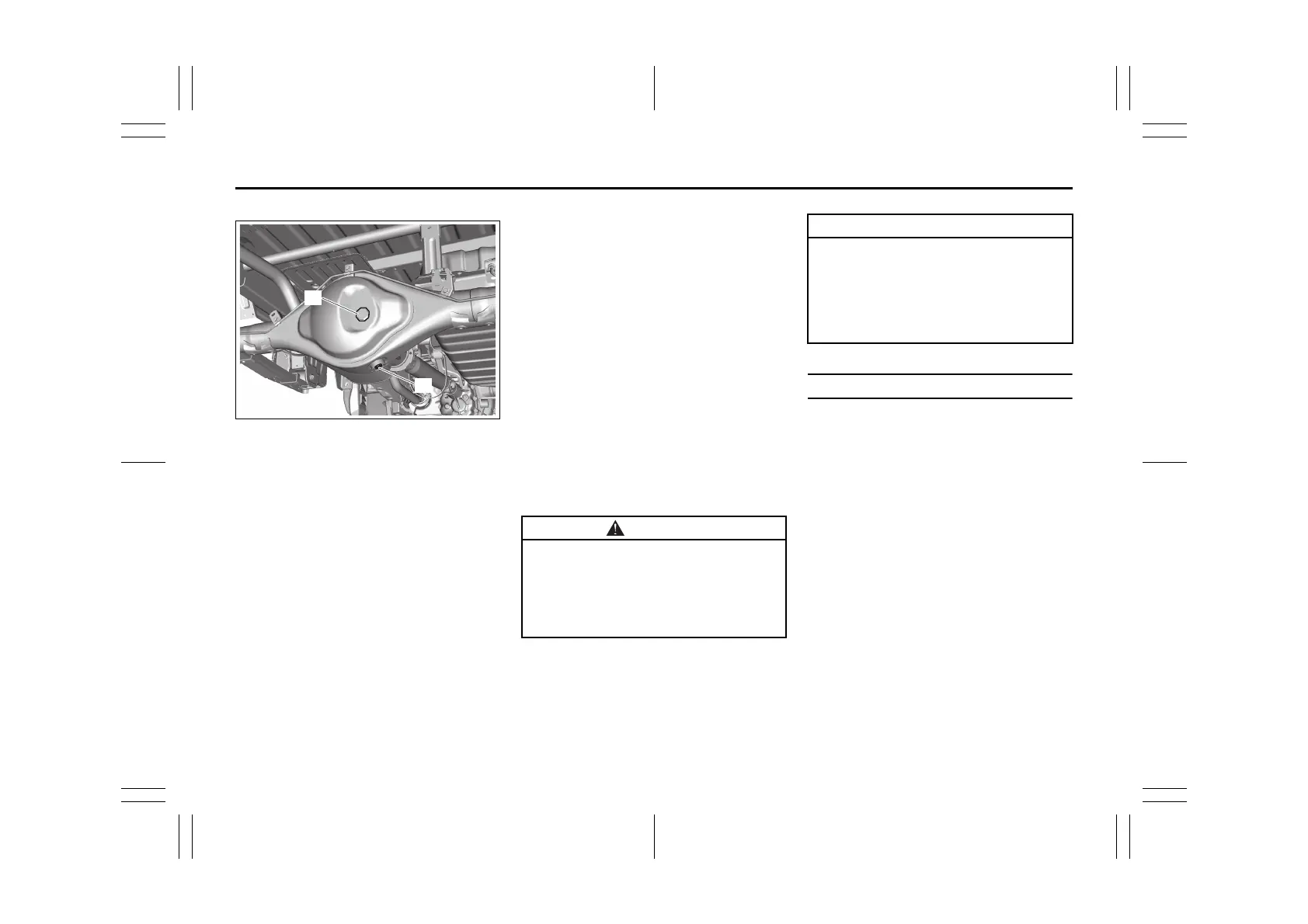

Rear differential
52SS60120
(3) Oil filler and level plug
(4) Oil drain plug
To check the gear oil level, use the follow-
ing procedure:
1) Park the vehicle on a level surface with
the parking brake applied. Then, stop
the engine.
2) Remove the oil filler and level plug (1)
or (3).
For the manual transmission;
3) If gear oil flows from the plug hole, the
oil level is correct. Reinstall the plug. If
gear oil does not flow from the plug
hole, add oil through the filler plug hole
until oil flows a little from the plug hole.
For the rear differential;
3) Check the inside of the hole with your
finger. If the oil level comes up to the
bottom of the plug hole, the oil level is
correct. If so, reinstall the plug with new
gasket.
4) If the oil level is low, add gear oil
through the oil filler and level plug hole
until the oil level reaches the bottom of
the filler hole, and then reinstall the plug
with new gasket.
Tightening torque for oil filler and
level plug
Manual transmission (1)(2):
23 Nm (2.3 kg-m, 16.6 lb-ft)
Rear differential (3)(4):
(3) 50 Nm (5.0 kg-m, 36.2 lb-ft)
(4) 55 Nm (5.6 kg-m, 40.5 lb-ft)
Gear Oil Change
Since special procedures, materials and
tools are required, ask a SUZUKI dealer or
a qualified workshop for this job.
(3)
(4)
CAUTION
After driving the vehicle, the gear oil
temperature may be high enough to
burn you. Wait until the oil filler and
level plug is cool enough to touch
with your bare hands before inspect-
ing gear oil level.
NOTICE
When tightening the plug of the man-
ual transmission, apply the following
sealing compound or equivalent to
the plug threads to prevent oil leak-
age.
SUZUKI Bond No. “1217G”
To Next Page
