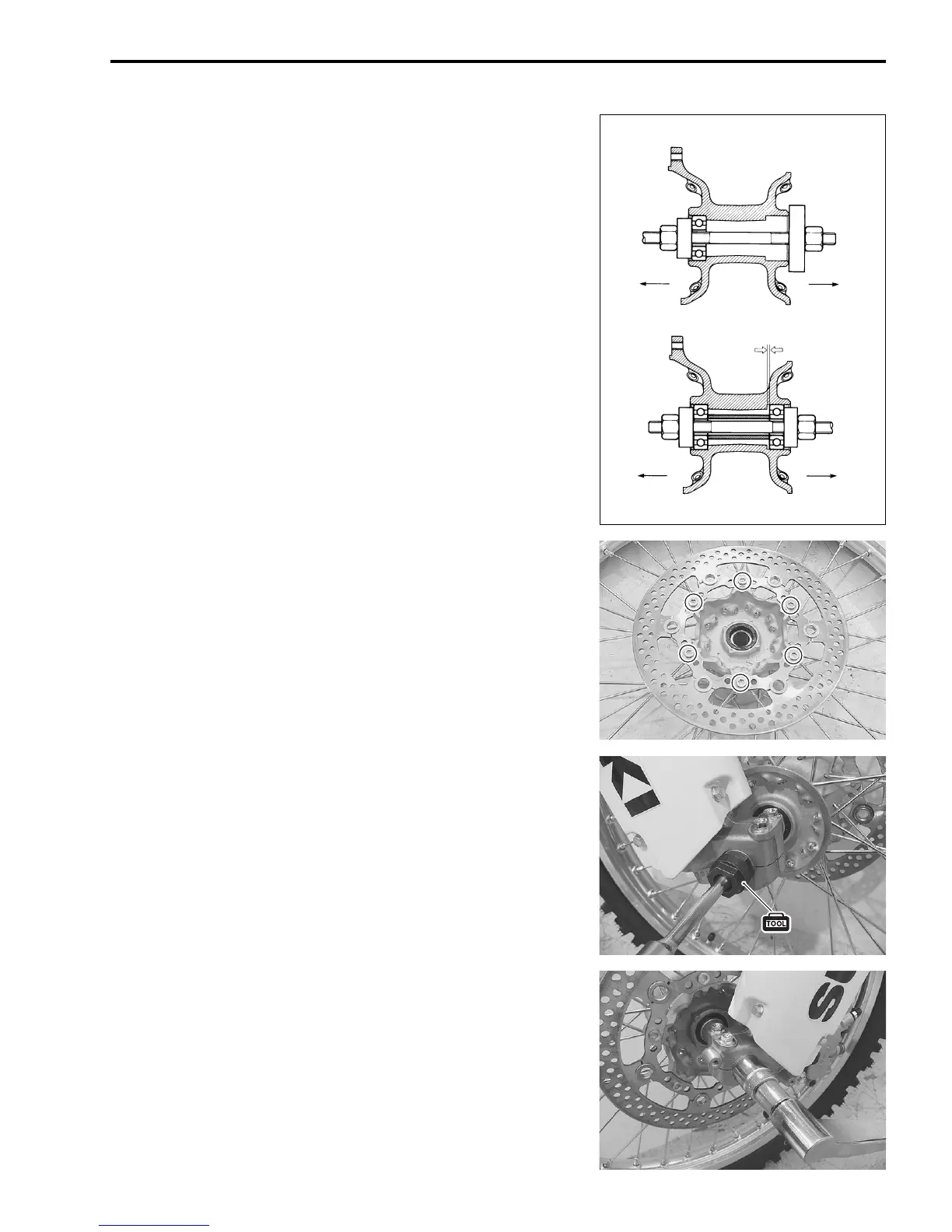

FRONT AND REAR WHEELS 14-5
• Reassemble the bearings with the special tools.
• Fit the dust seals and apply grease to their lips.
09941-34513: Steering race installer
09924-84521: Bearing installer set
99000-25010: SUZUKI SUPER GREASE “A”
(or equivalent grease)
NOTE:
* Install the left side (disc side) bearing first and then the right
side bearing.
* After installing the bearings, inspect the bearings for smooth
movement.
* When installing the dust seal, place the manufacturer’s code
indicated side of the dust seal outside.
DISC PLATE REPLACEMENT
• Remove the disc plate.
• Apply THREAD LOCK SUPER to the bolts.
99000-32110: THREAD LOCK SUPER “1322”
(or equivalent thread lock)
• Tighten the bolts to the specified torque.
Disc plate bolt: 10 N·m (1.0 kgf-m, 7.0 lb-ft)
INSTALLATION
• Hold the front axle shaft with the special tool and tighten the
front axle nut temporarily.
09940-34581: Attachment (F)
• Remove the block from under the chassis tube and move the
front forks up and down several times.
• Tighten the front axle nut to the specified torque.
Front axle nut: 35 N·m (3.5 kgf-m, 25.5 lb-ft)
• Tighten the left and right axle holder bolts to the specified
torque.
Axle holder bolt: 18 N·m (1.8 kgf-m, 13.0 lb-ft)
Left Right
Left Right
Clearance
