Suzuki VZR1800 Service Manual

10 VZR1800/ZL0 (’10-MODEL)
DRIVELINE/AXLE
SECONDARY GEAR SHIMS
ADJUSTMENT

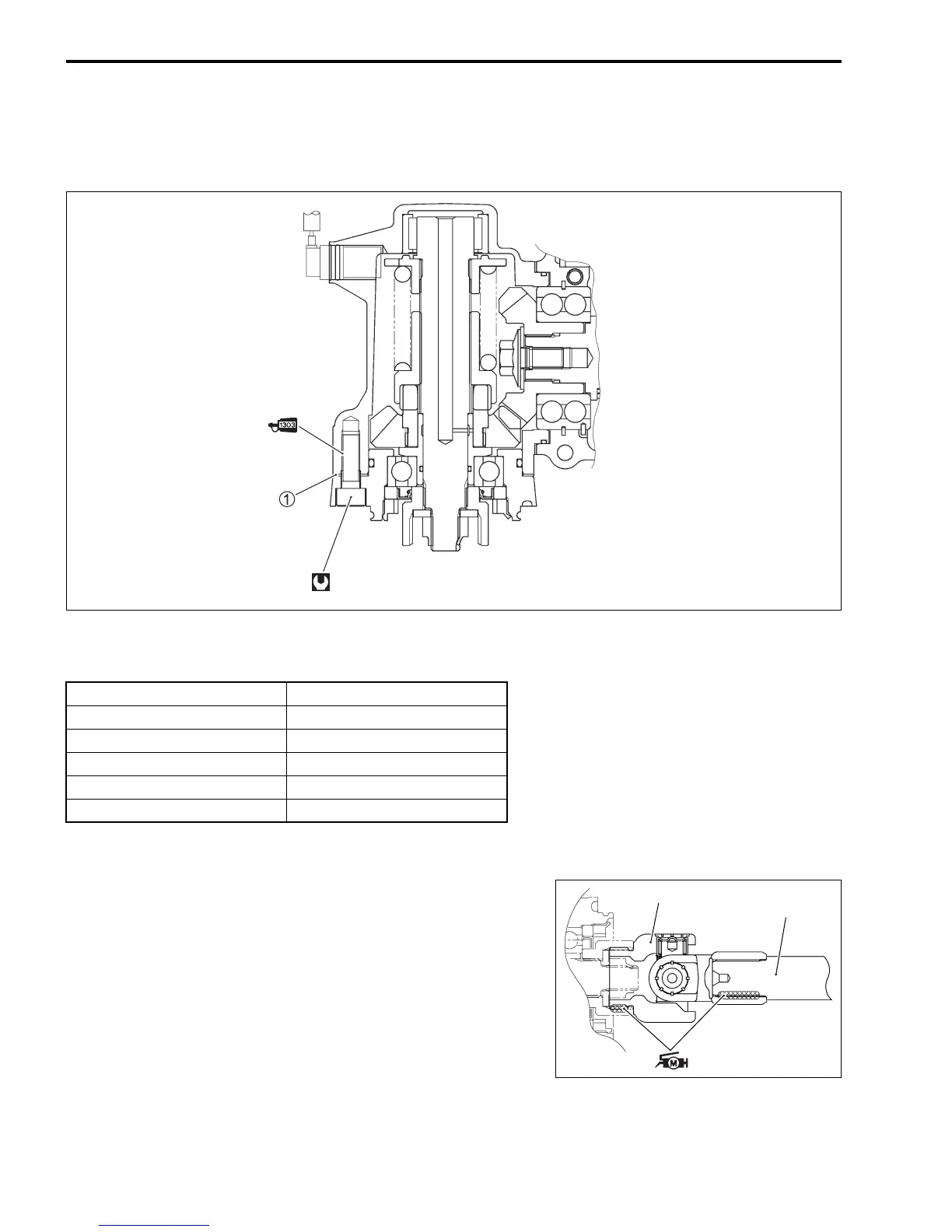

Adjust backlash and tooth contact by selecting shims. (Use two pieces of shims.)
Shim 1 size table
The shims 1 are available as a set (24945-48820).
UNIVERSAL JOINT INSTALLATION
• Apply Lithium Base Molybdenum grease (NLGI#2) to the uni-
versal joint spline.
Part number Thickness
24945-48G10-030 0.30 mm (0.012 in)
24945-48G10-035 0.35 mm (0.014 in)
24945-48G10-040 0.40 mm (0.016 in)
24945-48G10-050 0.50 mm (0.020 in)
24945-48G10-060 0.60 mm (0.024 in)
55 N
.
m
(5.5 kgf-m, 40.0 lbf-ft)
Propeller shaft
Universal joint

Suzuki VZR1800 Specifications

General

Engine Type	4-stroke, 2-cylinder, liquid-cooled, DOHC, 54-degree V-twin
Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire	130/70R18M/C 63H, tubeless
Ground Clearance	140mm (5.5 inches)
Seat Height	705 mm
Curb Weight	347 kg
Overall Height	1185 mm
