Suzuki VZR1800 Service Manual

VZR1800/ZL0 (’10-MODEL) 41

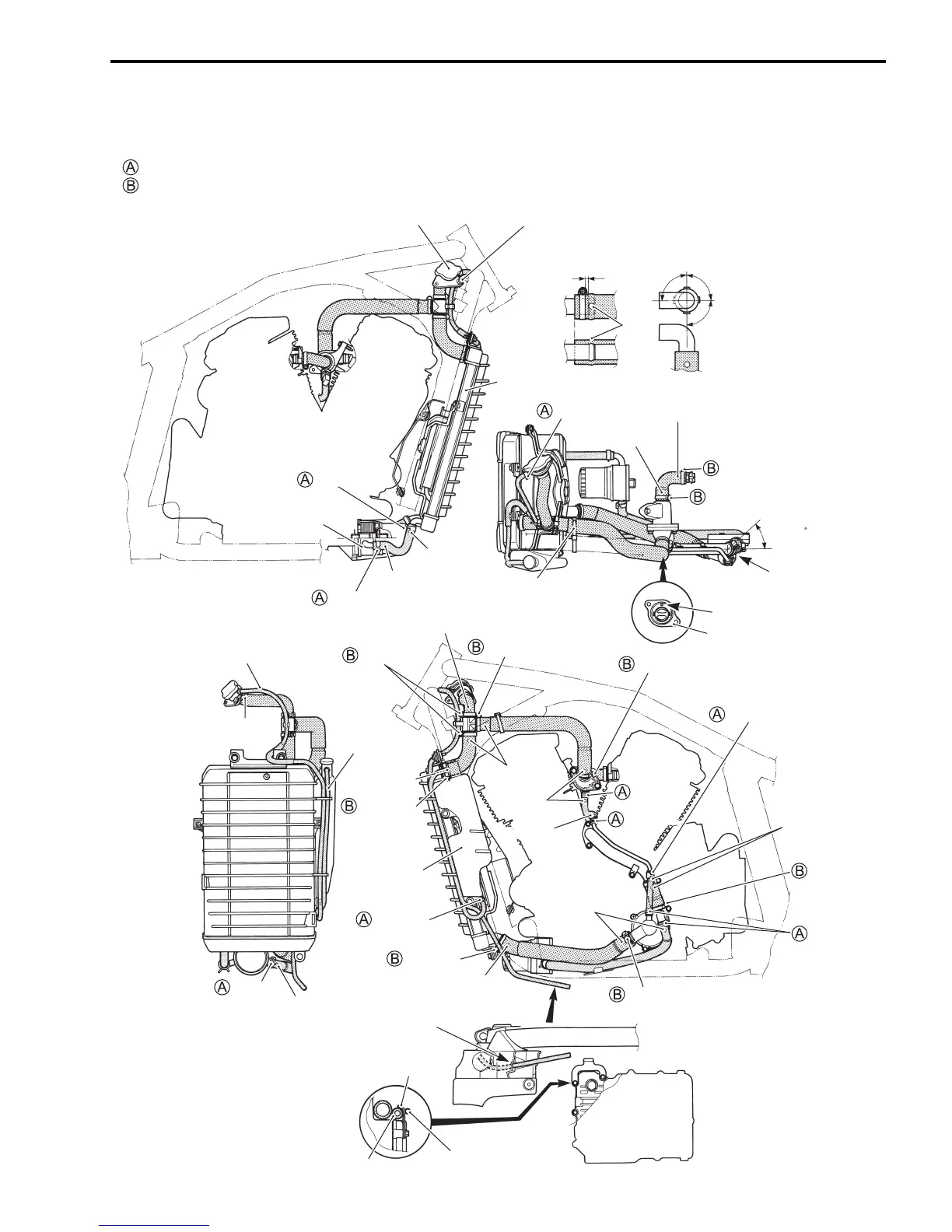

COOLING SYSTEM HOSE ROUTING
Radiator cap
Radiator
Mark
Inside.
White mark
Red mark
Thermostat
Face the tip of clip
to the inside.
Yellow mark
Red mark
Oil cooler
Red mark
Reservoir inlet hose
Reservoir
overflow hose
Red mark
White mark
White mark
Red mark
Yellow mark
White mark
Yellow mark
Reservoir
tank
Yellow mark
Pass the overflow hose into
the frame body lower cover hole.
Clutch cable
Overflow hose
Bracket
90˚
90˚
90˚
Keep clearance between
clamp and hose.
After the radiator conduction has
contacted the frame lower flange,
tighten the bolt.
: The ends of the clamp should face.....
: The clamp screw head should face.....
Right down side.
Top side.
Jiggle valve
45±30
Do not contact the tip of clamp
and water bypass lower hose.
Downward.
Forward.
Left side.
Left side.
Left side.
Left side.
Left side.
Left side.
Left side.
Left side.
Backward.
Left side.
Yellow mark
Left side.
Top side.
Backward.

Suzuki VZR1800 Specifications

General

Engine Type	4-stroke, 2-cylinder, liquid-cooled, DOHC, 54-degree V-twin
Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire	130/70R18M/C 63H, tubeless
Ground Clearance	140mm (5.5 inches)
Seat Height	705 mm
Curb Weight	347 kg
Overall Height	1185 mm
