Suzuki VZR1800 Service Manual

VZR1800/ZL0 (’10-MODEL) 25
SPEEDOMETER AND TACHOMETER
DESCRIPTION
This speedometer and tachometer mainly consists of the stepping motor (except for tachometer), LCD (Liq-
uid Crystal Display) and LED (Light Emitting Diode).
The speedometer pointer is driven by the stepping motor.
The LCDs indicate Tachometer, Gear position/Engine coolant temperature/Oil pressure temperature, Odo/
Trip1/Trip2/FI (DTC) and Clock/Fuel level respectively.
LED (Light Emitting Diode)
LED is used for the illumination light and each indicator light.
LED is maintenance free. LED is less electric-power consuming and stronger to vibration resistance com-
pared to the bulb.
Tachometer indicator lamp
The tachometer light up for 1.0 second and then it operates 9 000 → 0 r/min one time.
0
1
2
3
4
5
6
7
8
9

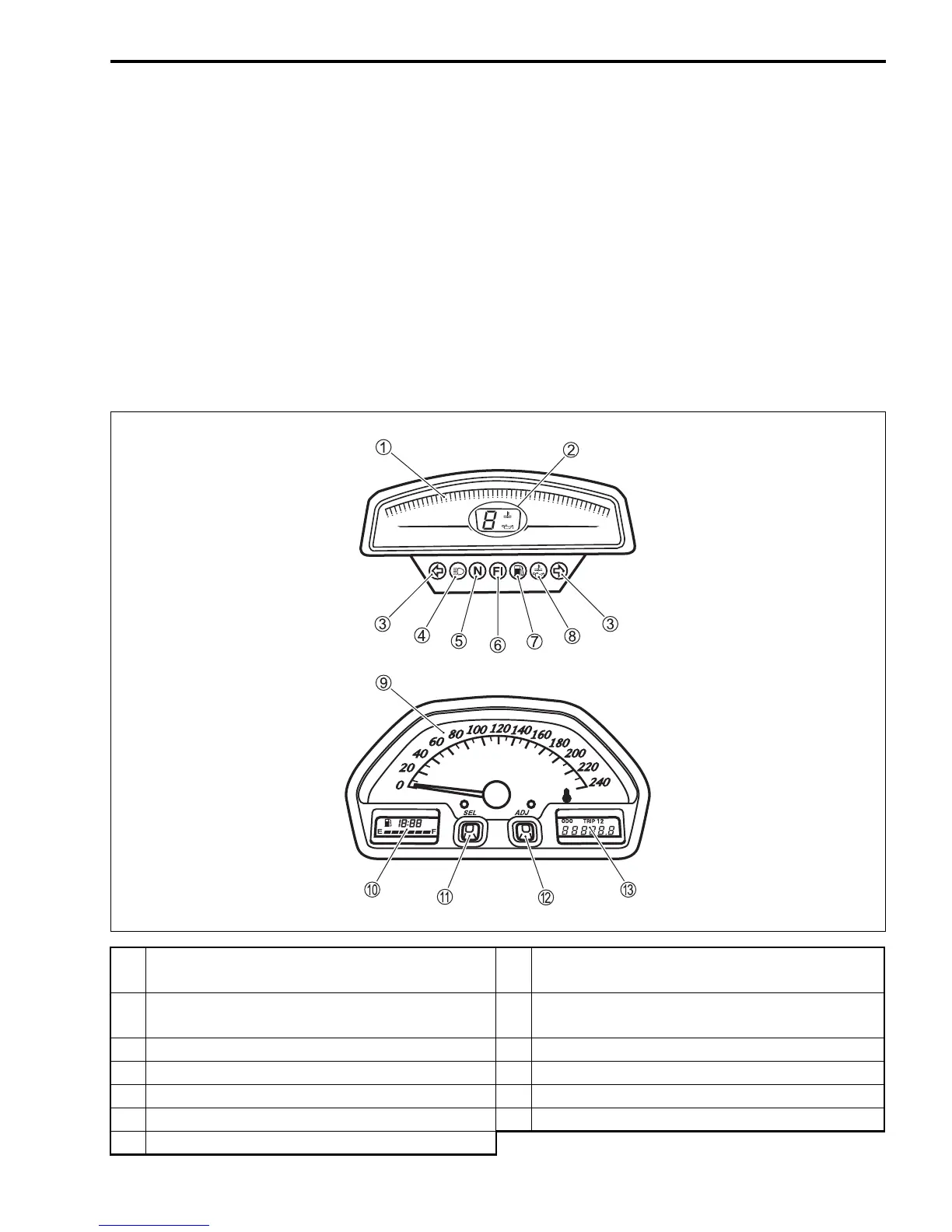

1 LCD (Tachometer) 8
LED (Oil pressure/Engine coolant temperature
indicator light)
2
LCD (Gear position indicator/Oil pressure indi-
cator/Engine coolant temperature indicator)
9 Speedometer
3 LED (Turn signal indicator light) 0 LCD (Clock/Fuel level)
4 LED (High-beam indicator light) A Select switch (Odo/Trip1/Trip2)
5 LED (Neutral indicator light) B Adjust switch (Trip/Clock)
6 LED (FI indicator light) C LCD (Odo/Trip1/Trip2)
7 LED (Fuel level indicator light)

Suzuki VZR1800 Specifications

General

Engine Type	4-stroke, 2-cylinder, liquid-cooled, DOHC, 54-degree V-twin
Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire	130/70R18M/C 63H, tubeless
Ground Clearance	140mm (5.5 inches)
Seat Height	705 mm
Curb Weight	347 kg
Overall Height	1185 mm
