Suzuki VZR1800 Service Manual

38 VZR1800/ZL0 (’10-MODEL)

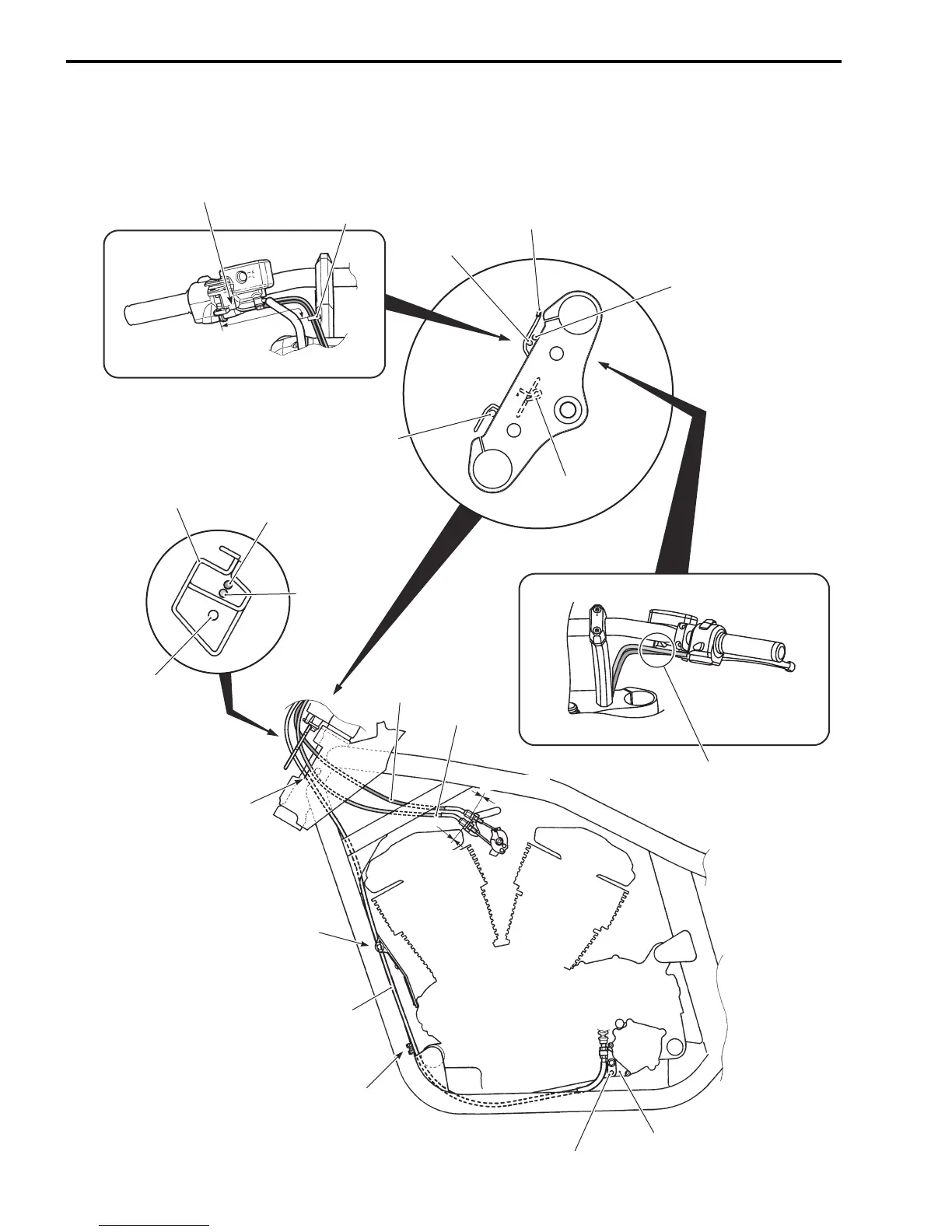

CABLE ROUTING
Pass the throttle cables behind the
right handlebar switch lead wire,
brake switch lead wire and brake hose.
Throttle cable clip
250 mm
(9.8 in)
Throttle cable No.1
Throttle cable No.2
Cable guide No.2
Headlight cover brace
Clutch cable
Cable guide No.2
Throttle cable No.1
Throttle cable
No.2
Clutch cable
Throttle cable No.1
Throttle cable No.2
0 mm (0 in)
0 mm (0 in)
Clutch cable stopper No.1
Clutch cable stopper No.2
Pass the clutch cable
between nuts.
Clutch cable
Pass the clutch cable
inside of heat shield plate.
Pass the throttle cable No.1
over the column of left frame
head cover.
Pass the throttle cable No.2
and clutch cable under the
column of left frame head cover.
Pass the throttle cable No.2
over the throttle cable No.1.

Suzuki VZR1800 Specifications

General

Engine Type	4-stroke, 2-cylinder, liquid-cooled, DOHC, 54-degree V-twin
Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire	130/70R18M/C 63H, tubeless
Ground Clearance	140mm (5.5 inches)
Seat Height	705 mm
Curb Weight	347 kg
Overall Height	1185 mm
