Suzuki VZR1800 Service Manual

40 VZR1800/ZL0 (’10-MODEL)

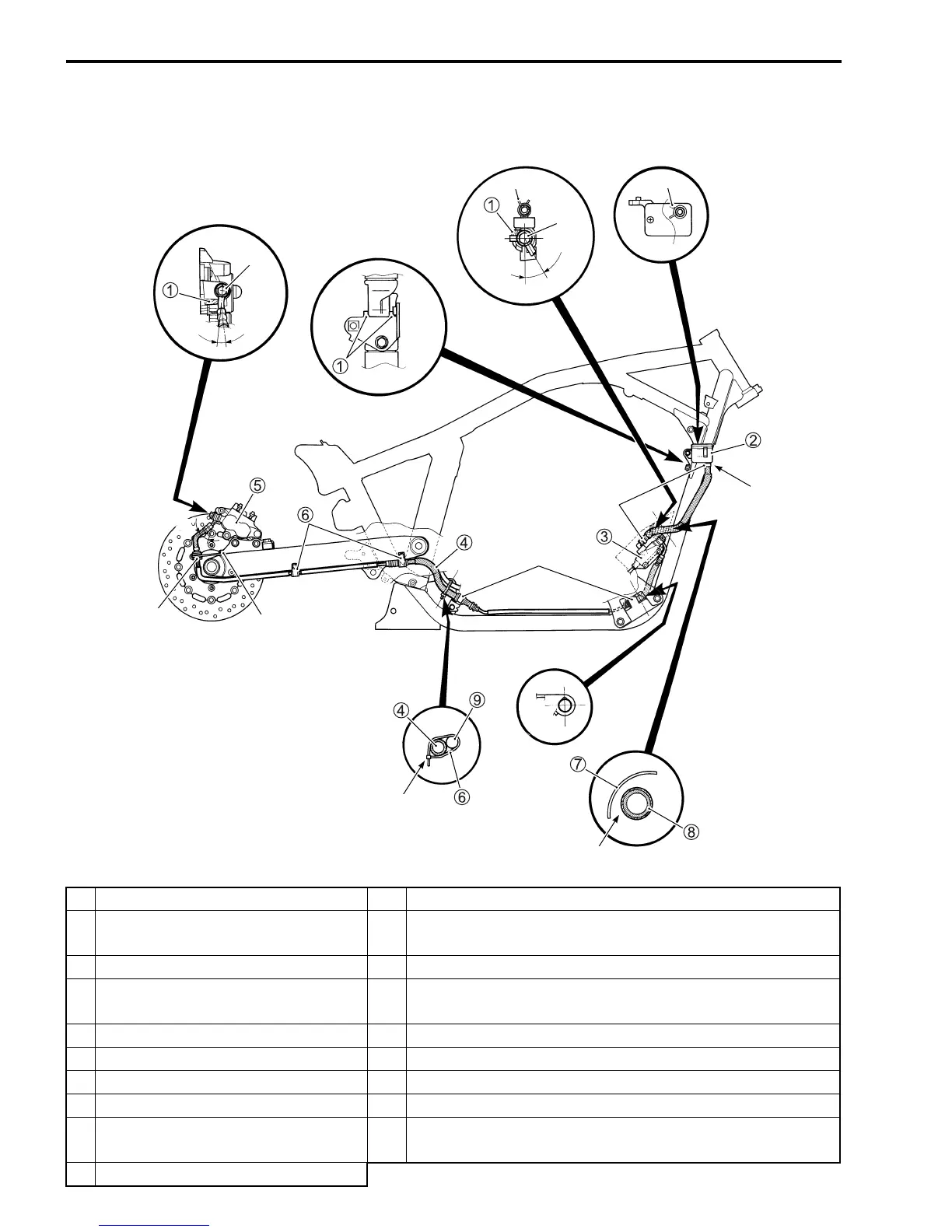

REAR BRAKE HOSE ROUTING
1 Stopper * 2 Clamp ends should face upward.
2 Reservoir tank * 3
Insert the reservoir hose fully to the reservoir tank and
brake master cylinder.
3 Brake master cylinder * 4 Face the white paint on reservoir hose to forward.
4 Brake hose * 5
Tighten the hose guide bolt after positioning the stopper of
hose guide to the swingarm.
5 Brake caliper * 6 Fix the grommet of brake hose to the hose guide.
6 Clamp * 7 Fix the brake hose to the clamp.
7 Master cylinder cover * 8 Pass the reservoir hose inside of the master cylinder cover.
8 Reservoir hose * 9 Do not contact the hose and muffler.
9 Starter motor lead wire * 10
Tighten the brake hose union bolt to the specified torque
after contacting the brake hose union to the stopper.
* 1 Clamp ends should face backward.
* 1
* 2
* 10
30˚
* 10
* 5
* 7
* 4
* 3
* 9
* 8
* 6
14˚
28˚

Suzuki VZR1800 Specifications

General

Engine Type	4-stroke, 2-cylinder, liquid-cooled, DOHC, 54-degree V-twin
Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire	130/70R18M/C 63H, tubeless
Ground Clearance	140mm (5.5 inches)
Seat Height	705 mm
Curb Weight	347 kg
Overall Height	1185 mm
