2.6 Control Panel Operation
• Power Button. Press the power button to
turn the leisure power on. Press the button
again to turn the power off. The adjacent
LED will illuminate when the power is on, and
also the voltage of the selected battery will
be displayed on the voltage gauge.
• Pump Button. With the power on, press
the pump button to turn the water pump on.
Press the button again to turn the pump off.
The adjacent LED will illuminate when the
pump is on, and also the level of the water
tank will be displayed on the water gauge.
• View Levels. To display the battery voltage
levels and the water tank levels on the
control panel gauges, press the levels
button. The display will remain illuminated for
10 seconds. It is possible to lock the display
‘on’ to allow continuous display. This can be
achieved by pressing and holding the view
levels button for 2-3 seconds until you hear
a beep. To turn this locked feature off, either
press and hold the view levels button again
for 2-3 seconds or turn the power off and
back on.
• Battery Select. By default, the leisure
battery is selected as the power source if no
mains supply is present, or as the battery
to be charged when the mains supply is
available. To change the selected battery,
press the vehicle battery select button. The
selected battery is indicated by an LED
adjacent to the caravan or car logo.
• Mains on indication. When connected to a
230v supply the LED with a “lightning strike”
shown will be illuminated.

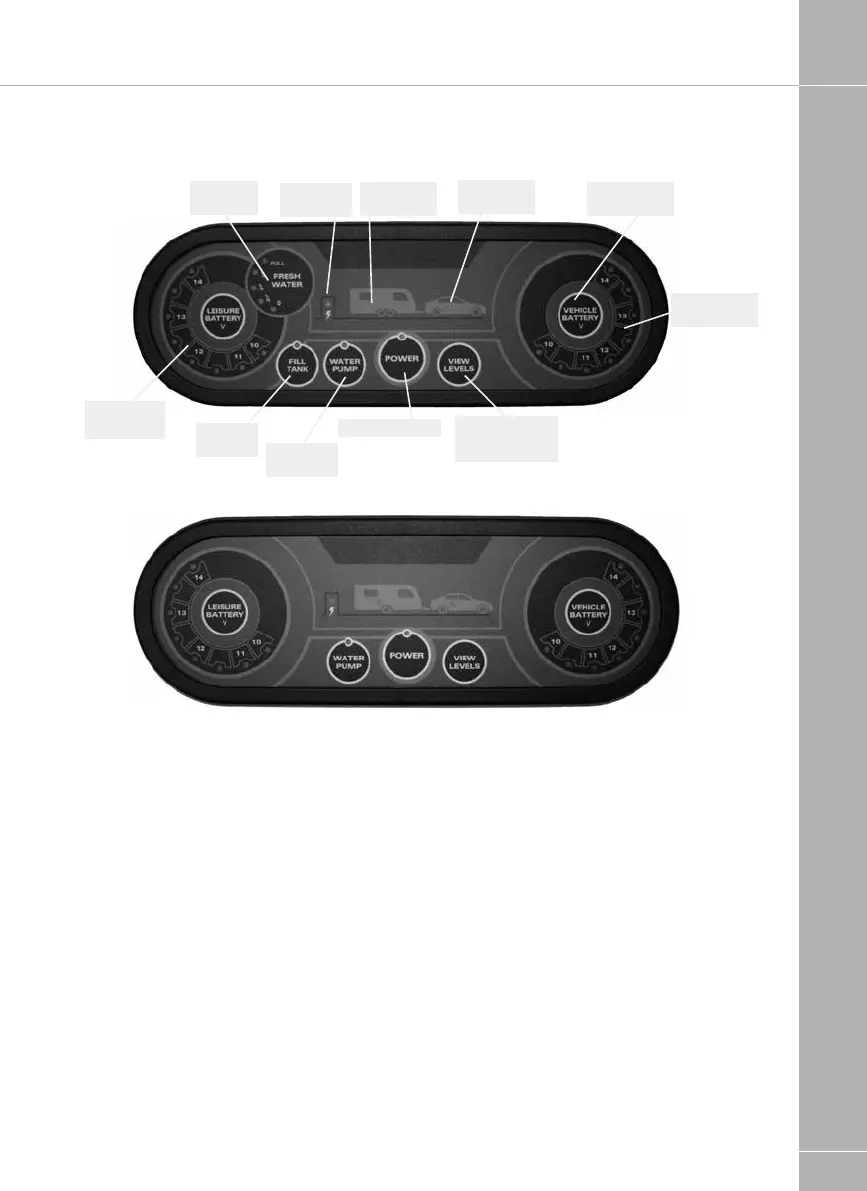

Fresh water
level gauge
Mains supply
& charger on
Leisure battery
selected LED
Vehicle battery
selected LED
Vehicle battery
selection button
Vehicle battery
voltage gauge
View levels button,
press to show bat-
tery & tank levels
Power on/off button
Water pump
on/off button
Tank fill on/
off button
Leisure battery
voltage gauge
EC451 - Caravans with water tanks
EC442 - Caravans without water tanks
