16. Rear Wheel / Rear Fork / Rear Cushion
16-3

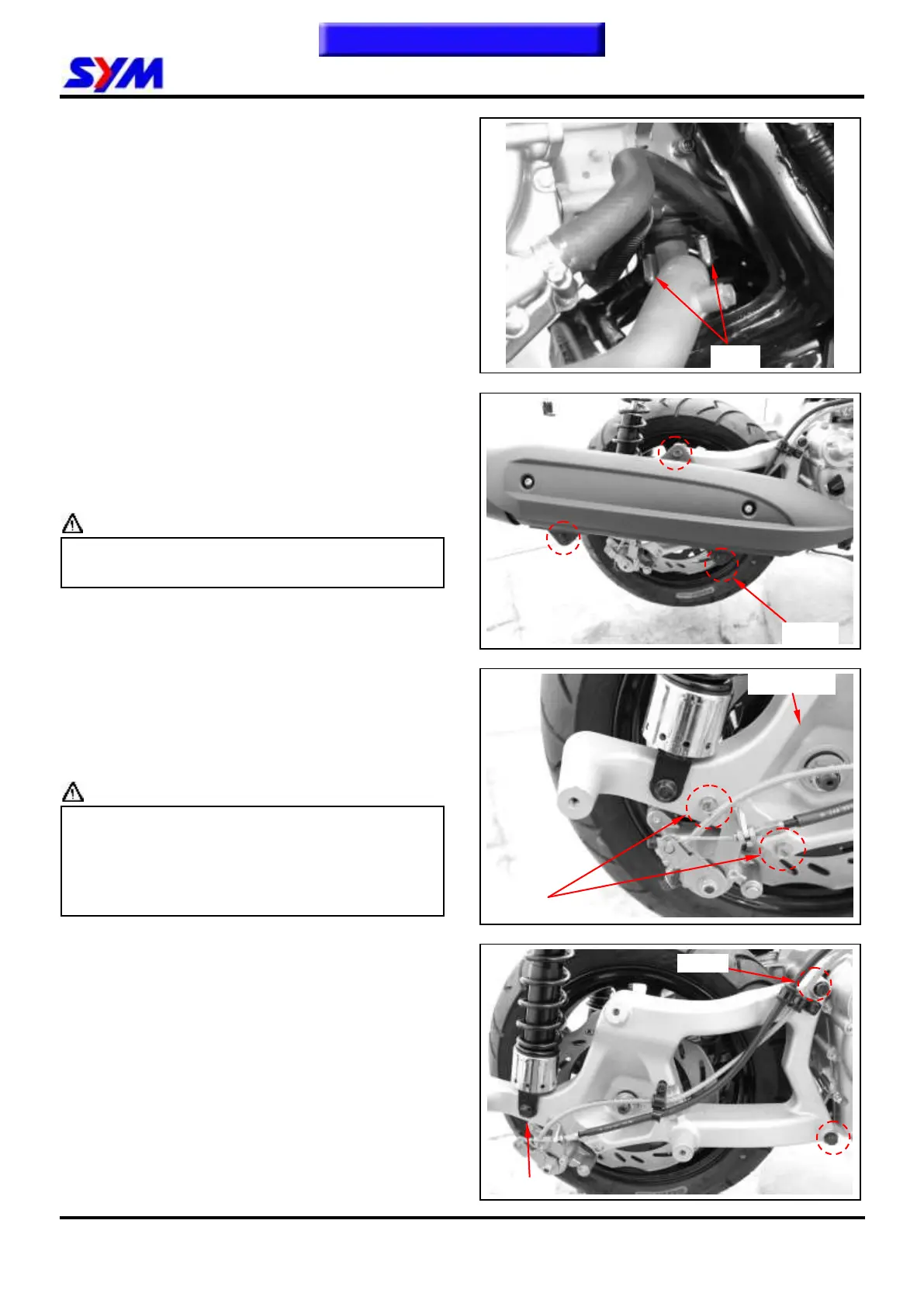

Muffler
Removal
Loosen the 2 nuts from exhaust muffler front side.
Loosen the 3 mounting bolts by exhaust muffler
right side.
Remove exhaust muffler.
Installation
Install in reverse order of removal procedures.
Caution
Replace the front side muffler pipe gasket if
worn or deformed.
Torque Value:
Muffler mounting bolt 3.2 ~ 3.8kgf-m
Muffler mounting nut 1.0 ~ 1.2kgf-m
Rear Wheel
Removal
Remove the exhaust muffler.
Remove the rear brake caliper (2 bolts) and brake
hose clamp (1 bolt).
Caution
Care shall be taken not to push the brake
lever to avoid the brake pad being squeezed
out. In case that the brake pad is accidentally
squeezed out, use a screwdriver to force it
back to the place.
Remove the lower bolt of the right side rear
cushion.
Remove 2 bolts of the rear fork.
To Next Page
