17. Electrical System
17-15
Light / Bulb

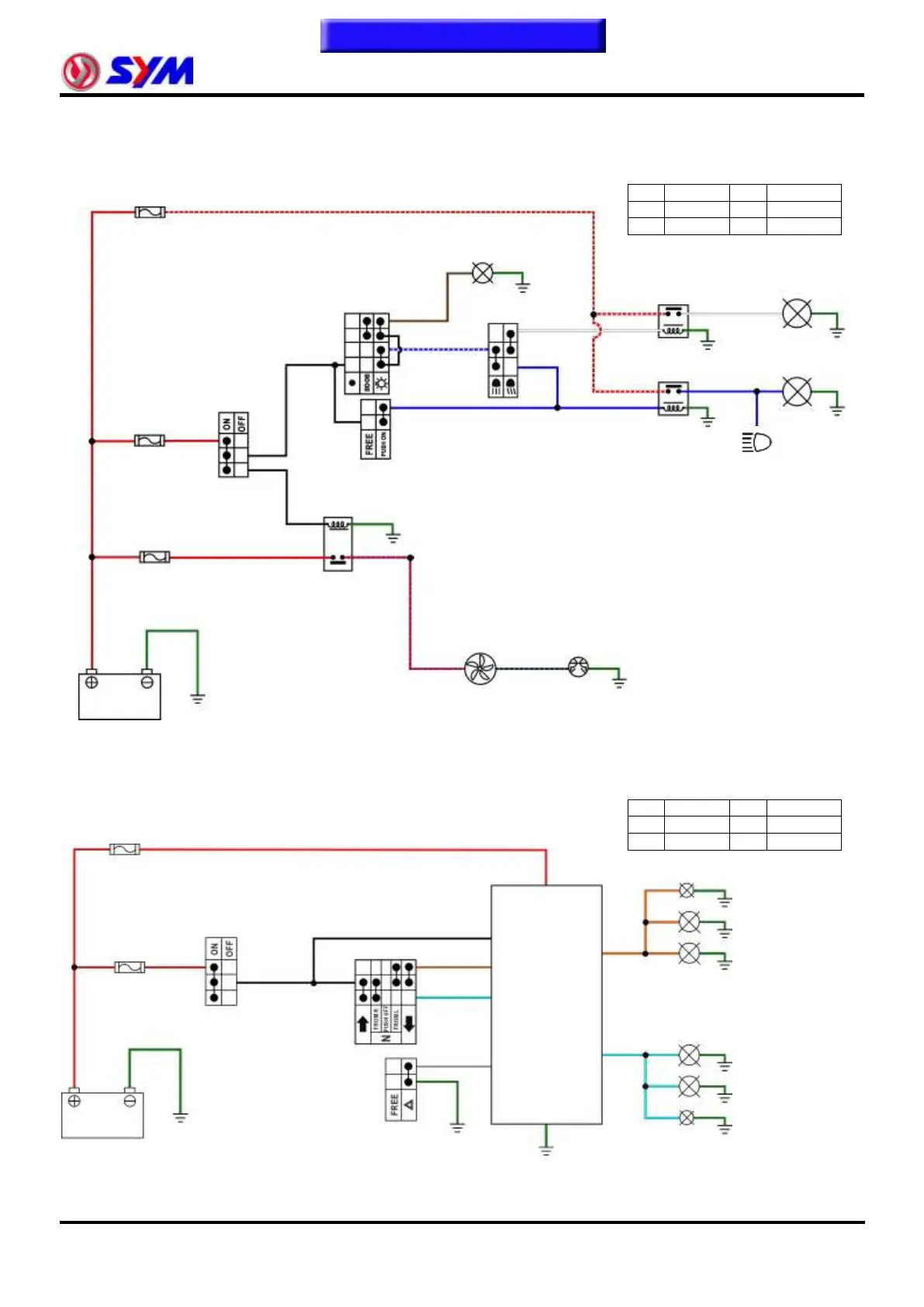

Headlight and foggy light circuit diagram
Winker light circuit diagram
Lo-beam relay
R
Main switch
Fuse 20A
Light switch
B
BR
L/W
(Headlight)
Fuse 15A
Battery
( fan)
Fuse 20A
B
Passing switch
Beam switch
Key relay
Foggy switch
Fan
Thermo switch
Foggy right indicator
Hi-beam light
Lo-beam light
Foggy right
R
Main switch
Fuse 20A
B
Battery
Winker &
Hazard control
unit
B
(Ignition)
Fuse 15A
Winker
switch
O
SB
R
O
SB
R. winker indicator
FR. R. winker light
RR. R. winker light
L. winker indicator
FR. L. winker light
RR. L. winker light
R
Red
W
White
B
Black
L
Blue
G
Green
BR
Brown
Position & meter
illumination light
L
W
R/W
L
W
R/L
R
W/B
R/L
B/L
G
G
G
G
R
Red
O
Orange
B
Black
SB
Sky blue
G
Green
GR
Gray
To this chapter contents
Hazard
switch
GR
G
G
G
Hi-beam relay
Hi-beam indicator
