17. Electrical System
17-21

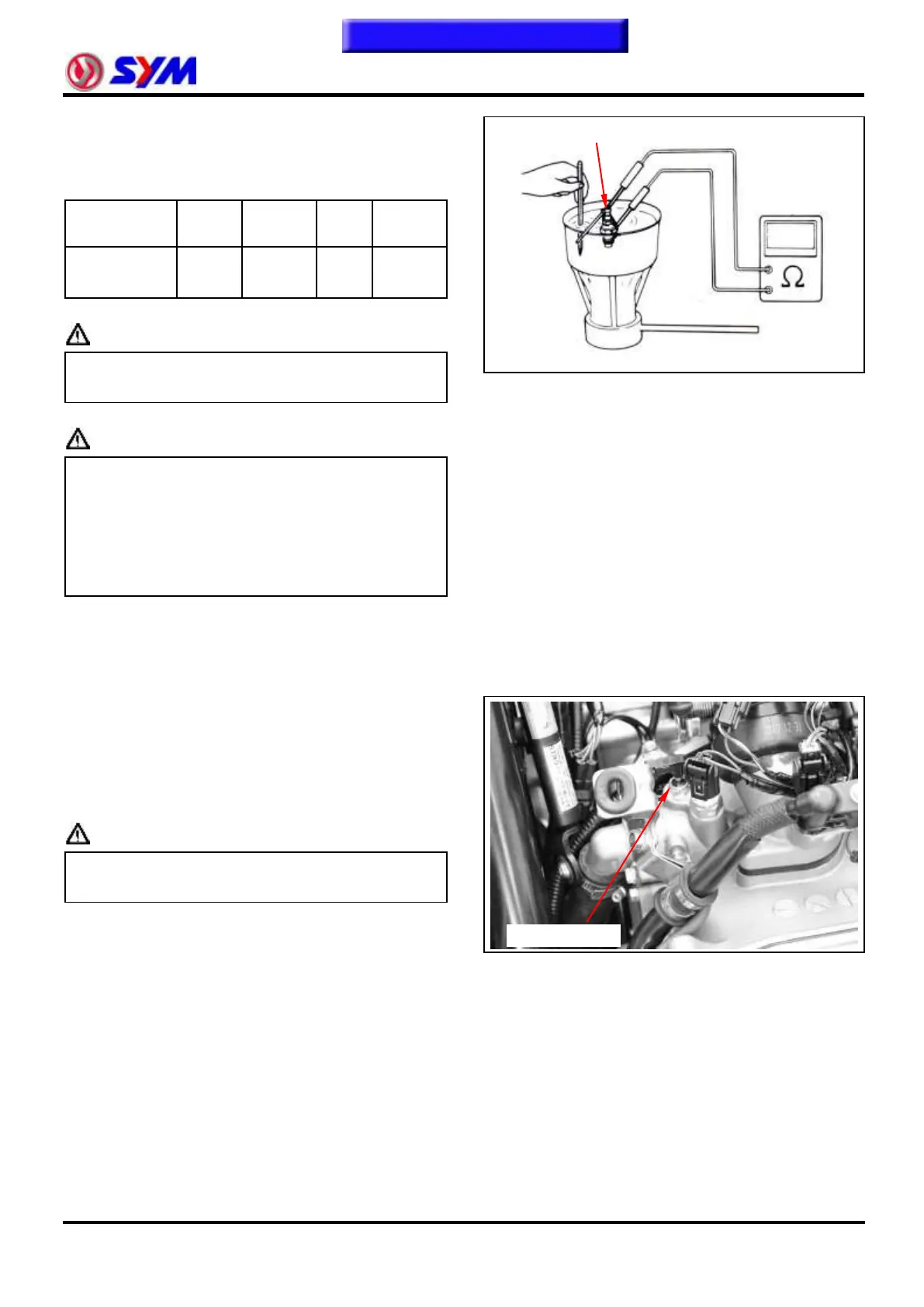

Thermo Unit
Remove the thermo unit.
Hang the thermo unit in an oil heater, heat the oil and
measure the resistance at each temperature.
Temperature
50°C
80°C
100°C
120°C
Standard (Ω )
134~149
47.5~57.0
26~29
14.8~17.2
Caution
 Wear gloves and goggles when performing this
test.
Caution
 Engine oil should be used as a heating medium
and the test temperature must be higher than
100℃.
 Contacting the container wall by the
thermometer and the thermo unit may result in
wrong readings.
Water Temperature Meter
Disconnect the thermo sensor coupler and connect it
to engine ground.
Turn on the main switch.
The needle of the water temperature meter should
move to other end, H position.
Caution
 Do not ground the sensor more than 5
seconds, or the meter will be damaged.
Thermo unit
Thermo unit
