TA2922 Universal Line Interface Service Manual 41
© Tait Electronics Limited March 2010
5.2 Programming the TA2922 board with the PGM-UIS
The PGM-UIS programming application is available from the support area of the
TaitWorld website http://www.taitworld.com/technical/. The download is
available from the Custom Solutions section after logging in.
Programming cable and connection

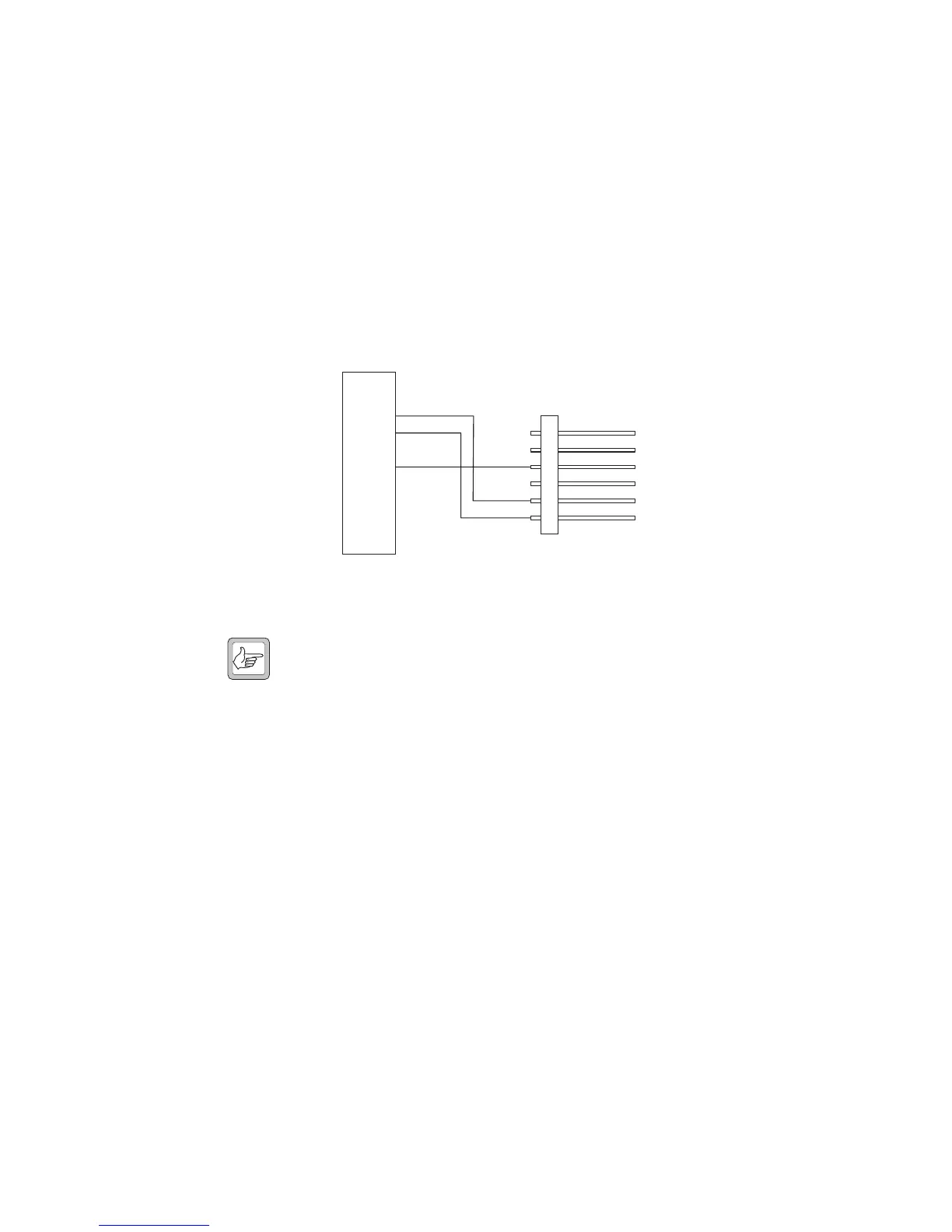

Program the TA2922-01, 03, 04 and 05 versions of the TA2922 universal line
interface board by connecting the cable shown below to a PC running the PGM-
UIS programming application.
Connect the 6-way header to S1 on the bottom side of the TA2922 universal line
interface board.
The cable is not required for the TA2922-02 2-wire interface as data lines are
available on the external options connector SK1.
1
2
3
4
5
6
7
8
9
RXD
TXD
GND
9-way D-Range socket
240-00033-00
pin 1
pin 6
6-way header
240-00020-64
