42 TA2922 Universal Line Interface Service Manual
© Tait Electronics Limited March 2010

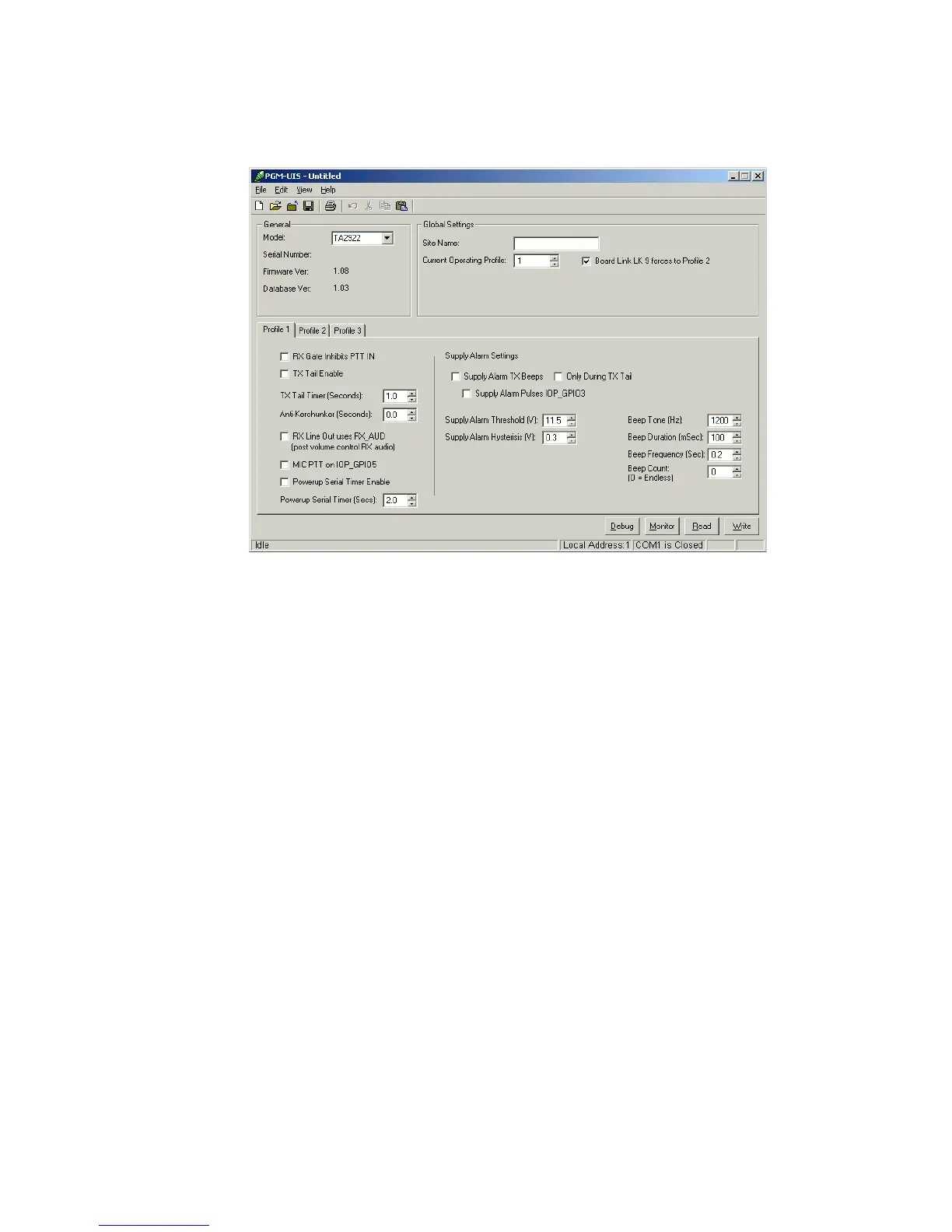

Programmable fields in the PGM-UIS programming application:
The fields shown below are the factory programmed defaults.
Site Name A 16-character description of customer's name, job, site or any other text to
identify the owner or purpose of the TA2922 board.
Current
Operating
Profile
Selects which of the three operating profiles are used. If the Board Link LK9 forces
to Profile 2 check box is selected, then this field is over-ridden and profile 2 is
selected if option link LK9 or SMD link R42 is fitted. Refer to “Additional
configuration links” on page 38.
Board Link
LK9 forces to
Profile 2
If this check box is selected, the Current Operating Profile field is over-ridden and
profile 2 is selected when option link LK9 or SMD link R42 is fitted. Refer to
“Additional configuration links” on page 38.
Profile 1, 2, 3,
tabs
Three different operating profiles contain different sets of operating parameters
which can be selected by altering the Current Operating Profile field. This is useful
when one customer has multiple operational variants of the TA2922 board as all of
the customer's data can be saved in a single data file on disk.
Each TA2922 board variant is programmed with the same data when the operating
profile field is set prior to programming.
RX Gate
Inhibits PTT
IN
If the TA2922 board has a valid RX gate output, all TX key inputs are ignored
until RX gate becomes invalid. This is useful for 2-wire line configurations where
the presence of +12V on the transformer centre tap can indicate either RX gate
output from the TA2922 board or TX key into the TA2922 board.
