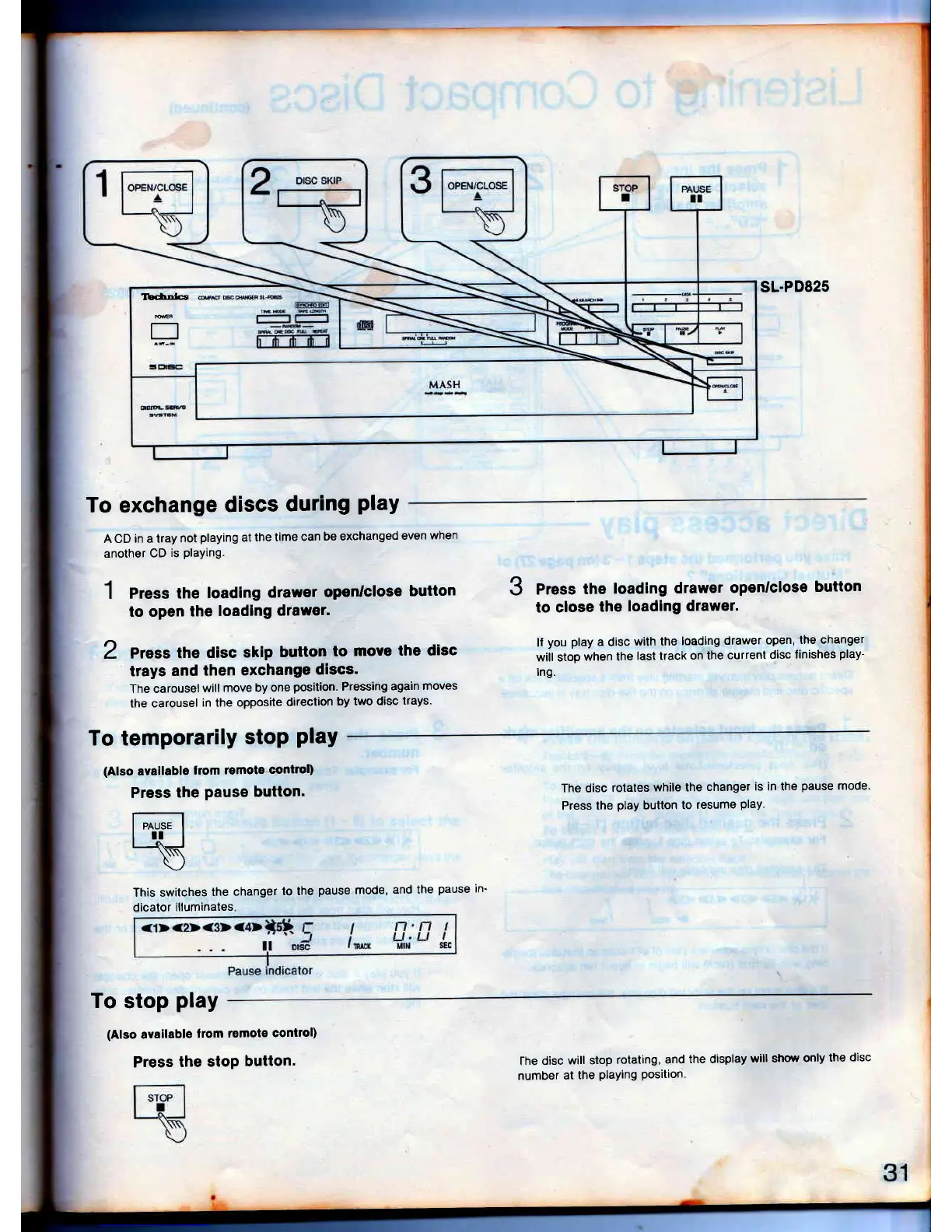

TbdDI€
E
sL.PD825
To
exchange
discs
during
PlaY
A
CD
in
a
tray
not
playing
at
the
time
can
be
exchanged
even
when
another
CD
is
Playing.
1
pr"""
the
loading
drawer
openlclose
button
to
open
the
loading
drawer.
2
Press
the
disc
skip
button
to
move
the
disc
trays
and
then
exchange
discs.
The
carousel
will
move
by
one
position.
Pressing
again
moves
the
carousel
in
the
opposite
direction
by
two
disc
trays'
Press
the
loading
drawer
openlclose
button
to
close
the
loading
drawer.
lf
you
play
a
disc
with
the
loading
drawer
open,
the
changer
will
stop
when the
last
track
on
the
current
disc
linishes
play-
lng.
3
To
temporarily
stoP
PlaY
(Also
available
lrom
remote
control)
Press
the
Pause
button.
I-"-r*l
Lxl
\\\
\J
This
switches
the
changer
to
the
pause
mode,
and
the
pause
in'
dicator
illuminates
The
disc
rotates
while
the
changer
is
in
the
pause
mode.
Press
the
play
button
to
resume
play.
To
stop
play
(Also
available
lrom
remote
control)
Press
the
stoP
button.
fhe
disc
will
stop
rotating,
and
the
display
will
show
only
the
disc
number
at
the
Playing
Position.
30
