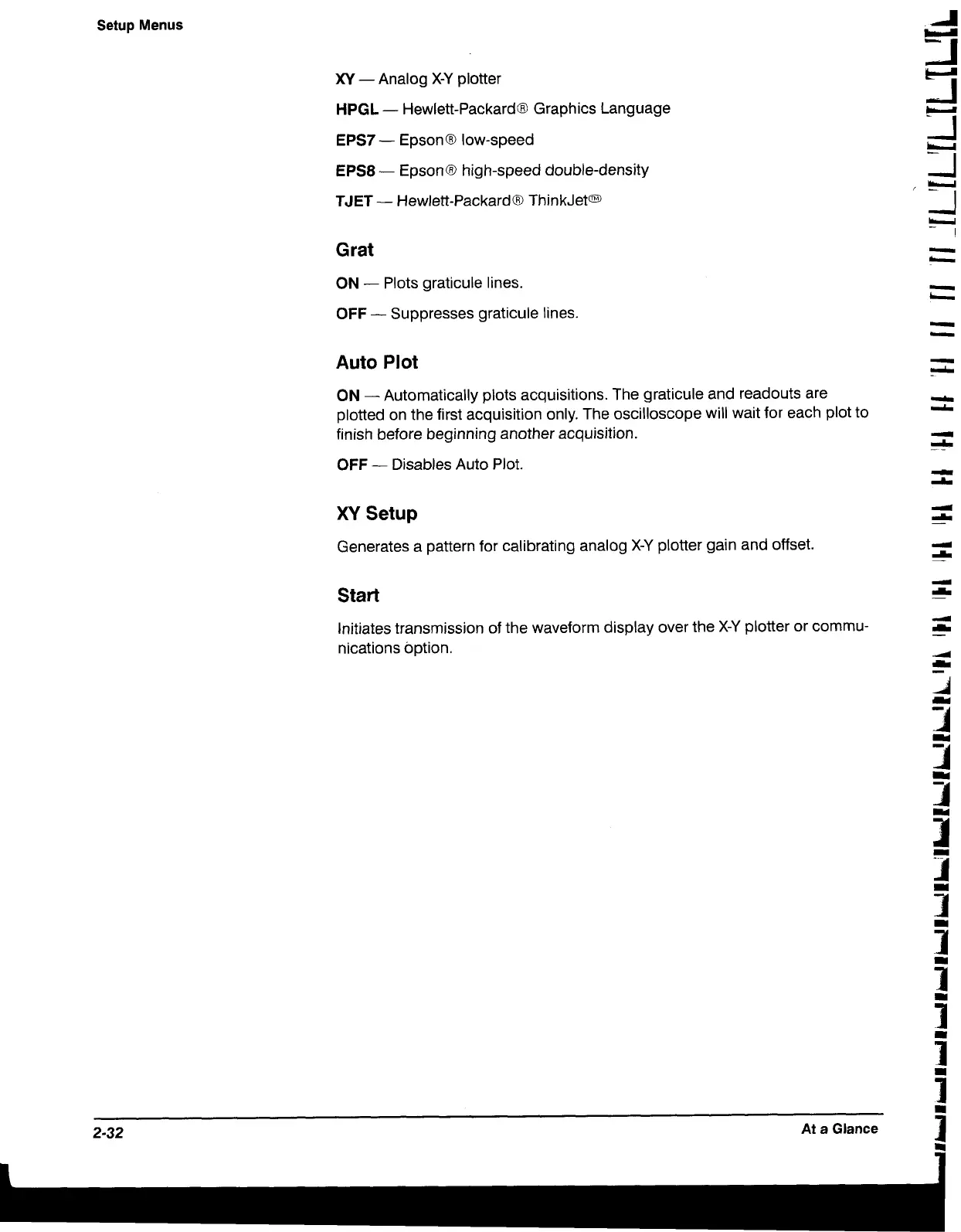

Page #59 background image
Setup Menus
XY
-
Analog X-Y plotter
HPGL
-
Hewlett-PackardB Graphics Language
EPS7
-
EpsonB low-speed
EPS8
-
EpsonB high-speed double-density
TJET
-
Hewlett-PackardB ThinkJetm
Grat
ON
-
Plots graticule lines.
OFF
-
Suppresses graticule lines.
Auto Plot
ON
-
Automatically plots acquisitions. The graticule and readouts are
plotted on the first acquisition only. The oscilloscope will wait for each plot to
finish before beginning another acquisition.
OFF
-
Disables Auto Plot.
XY
Setup
Generates a pattern for calibrating analog X-Y plotter gain and offset.
Start
Initiates transmission of the waveform display over the X-Y plotter or commu-
nications option.
At a Glance
