Tektronix 475A User Manual

I

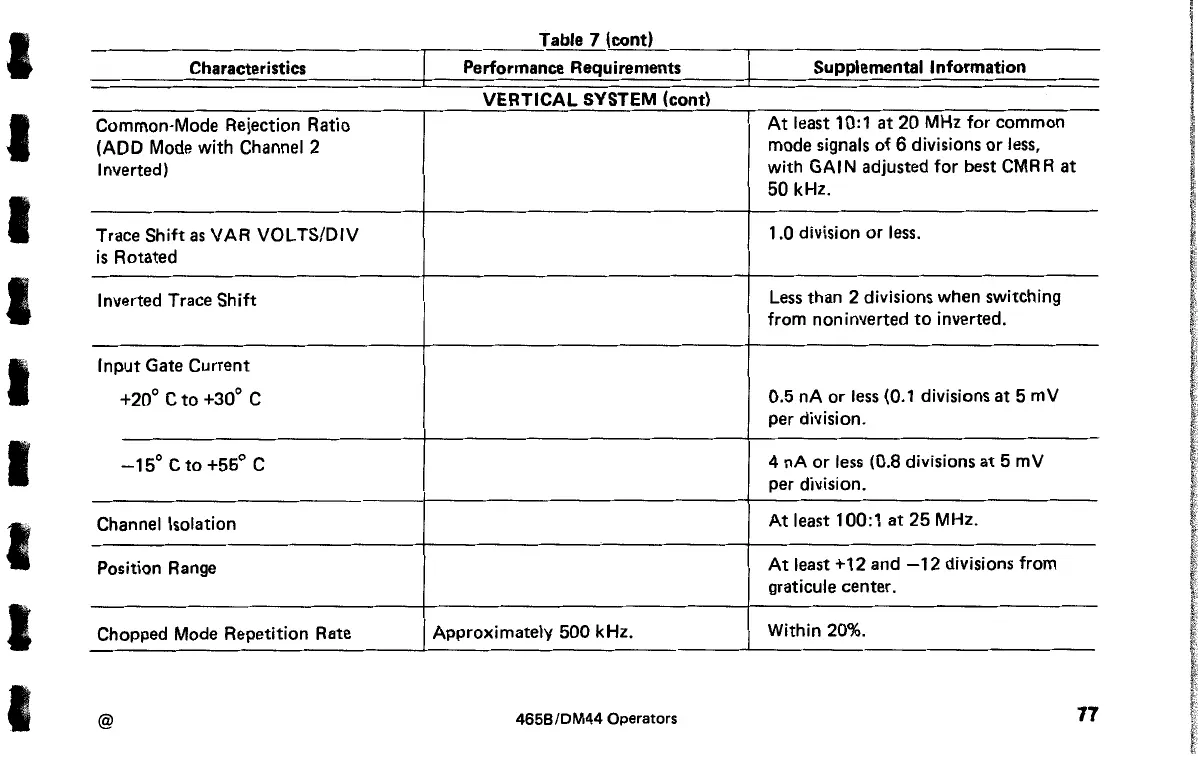

Table 7 (cont)
Characteristics
Performance Requirements
Supplemental Information
VERTICAL SYSTEM (cont)
I
Common-Mode Rejection Ratio
At least 10:1 at 20 MHz for common
(ADD Mode with Channel 2
mode signals of 6 divisions
or less,
Inverted)
with GAIN adjusted for best CMRR
at
50 kHz.
I
Trace Shift as VAR VOL TS/DIV
1.0 division or less.
is Rotated
Inverted Trace Shift
Less than 2 divisions when switching
from non inverted
to inverted. I
Input Gate Current
+20° C
to +30° C
0.5 nA or less (0.1 divisions at 5 mV
I
per division.
-15° C to +55° C
4 nA
or less (0.8 divisions at 5 mV
per division.
I
Channel Isolation
At least 100:1 at 25 MHz.
Position Range
At least +12 and -12 divisions from
I
graticule center.
I
Chopped Mode Repetition Rate
Approximately
500kHz.
Within 20%.
I
@
465B/DM44 Operators
77
