Acquire the Sign
al
Acquire the Si
gnal
This section describes concepts of and procedures for setting up the oscilloscope to acquire the signal as you want it to.

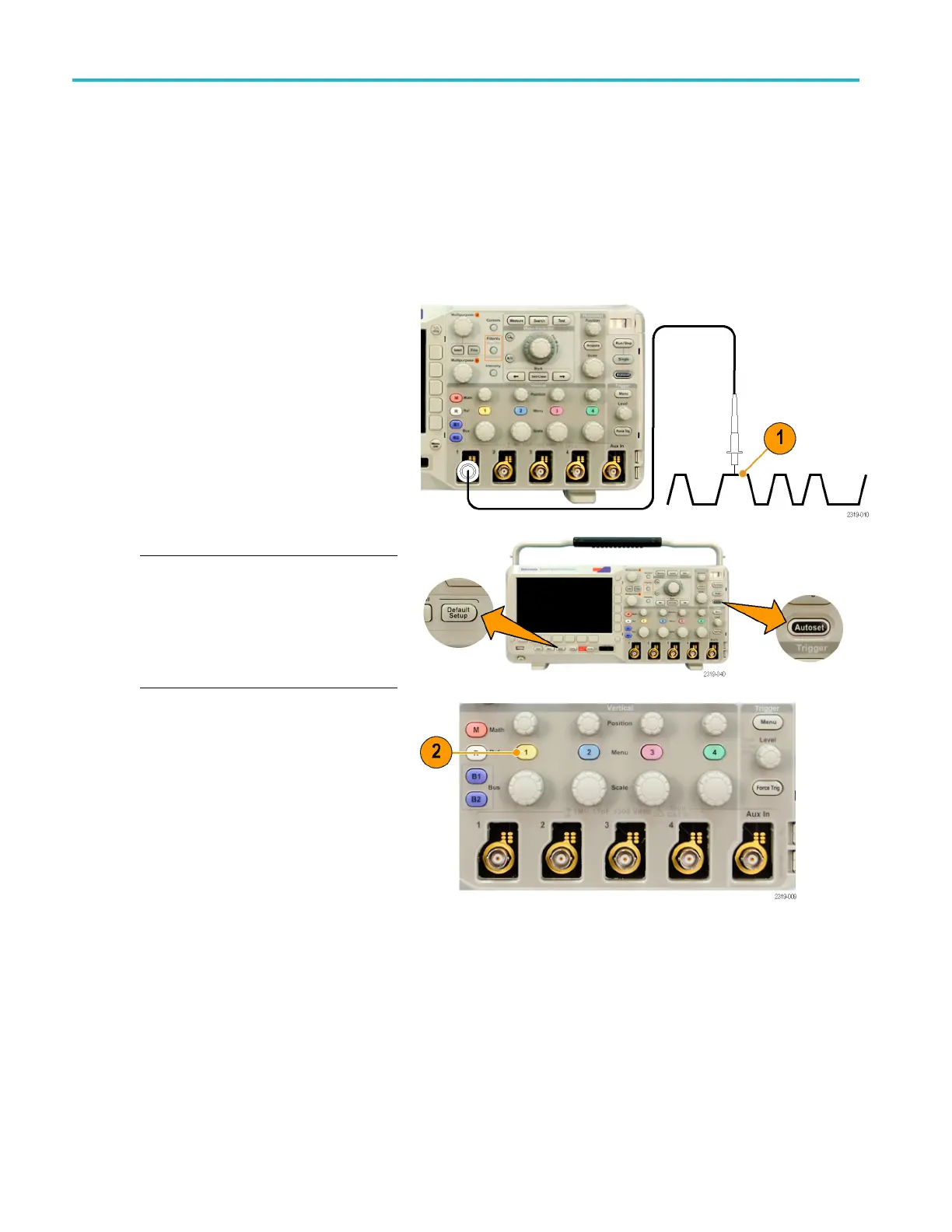

Setting Up Analog Channels
Use front-panel buttons and knobs to set up y our oscilloscope to acquire signals using the analog channels.
1. Connect a TPP0200/TPP0100 probe or a
TekVPI prob
e to the input signal source.
2. Push Default Setup.
NOTE. If you are using a probe that does not
supply p
robe encoding, set the attenuation
(probe factor) on the oscilloscope vertical
menu to match the probe. The default
attenua
tion for the oscilloscope is 10X and is
set in the Probe Setup lower-bezel menu of
any analog channel.
3. Select the input channel by pushing the
front-panel buttons.
4. Push Autoset.
40 MSO2000B and DPO2000B Series Oscilloscopes User Manual
