Tektronix MSO4000B Series User Manual

Installation
Operating Considerations

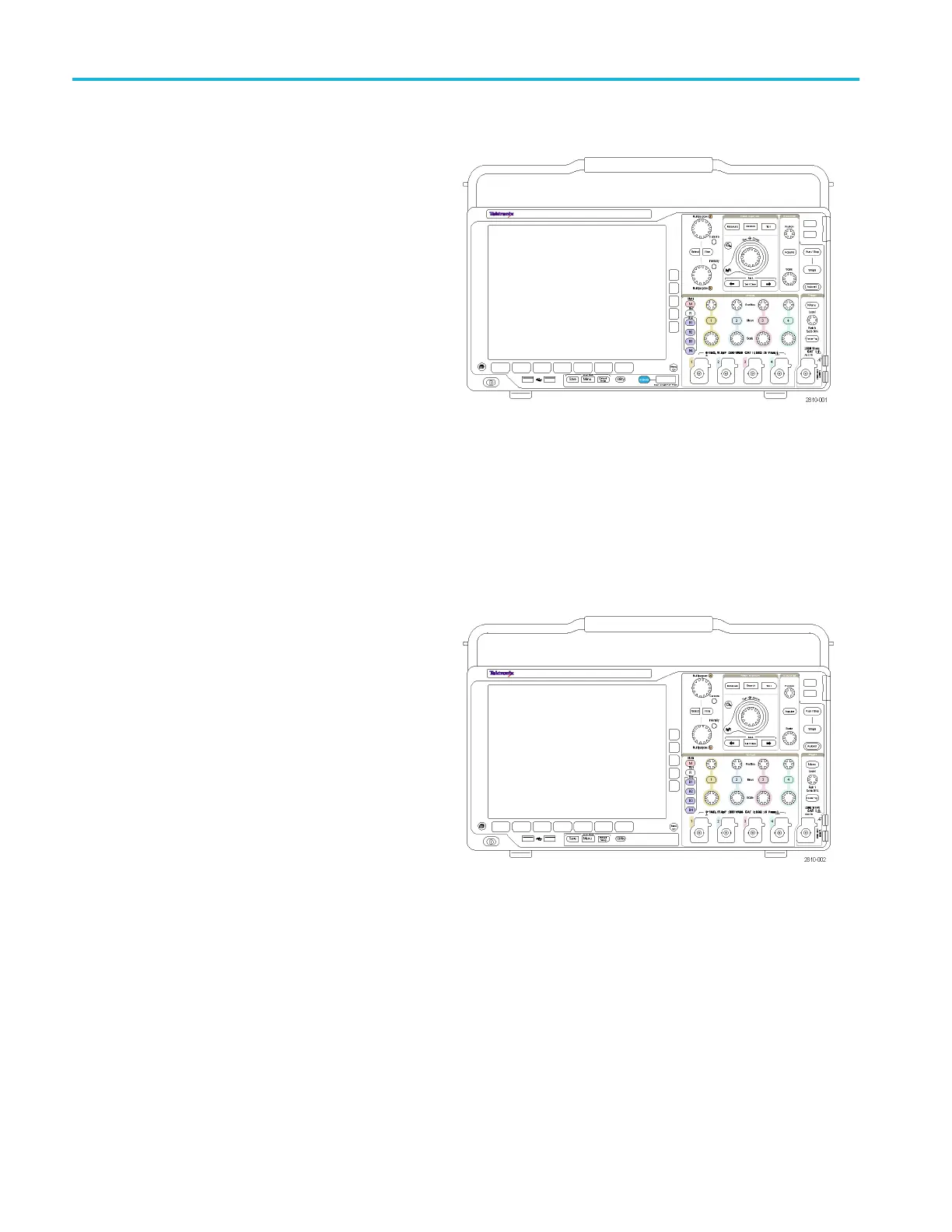

MSO4000B and D
PO4000B Series
Oscilloscopes
Operating Line Frequency and Voltage Range
Volts
100-240
115
Hz
50-60
400
Mains input voltage range: 100 V - 240 V and 115 V
Maximum Po
wer Consumption: 225 W
Weight:
5.0 kg (11.0 lbs), standalone instrument, without front
cover
Height, feet folded in, handle folded down:
229 mm (9.0 in)
Width, fr
om handle hub to handle hub: 439 mm
(17.3 in)
Depth, from back of feet to front of knobs: 1 40 mm
(5.5 in)
Depth, from back of feet to front of front cover: 155
mm (6.1 in)
MSO4000B S
eries
Temperature:
Operating: +0 °C to +50 °C (+32 °F to 122 °F)
Nonope
rating: -20 °C to +60 °C (-4 °F to 140 °F)
Humidity:
Opera
ting: High: 40 °C to 50 °C (104 °F to 122 ° F),
10% to 60% RH
Operating: Low: 0 °C to 40 °C (32 °F to 104 °F), 10
to 90
%RH
Non-operating: High: 40 °C to 60 °C (104 °F to
140 °F), 5 to 60% RH
Non-
operating: Low: 0 °C to 40 °C (32 °F to 104 °F),
5to90%RH
DPO4000B Series
Altitude:
Operating: 3,000 m (about 9,843 ft)
Non
operating Altitude: 9,144 m ( 30,000 ft)
Pollution Degree: 2, Indoor use only
6 MSO4000B and DPO 4000B Series Oscilloscopes User Manual

Tektronix MSO4000B Series Specifications

General

Analog Channels	2 or 4
Vertical Resolution	8 bits
Operating Temperature	0 °C to +50 °C
Digital Channels	16
Memory Depth/Record Length	20M standard on all channels
Display	10.4-inch (264 mm) LCD color display
Connectivity	Ethernet
Waveform Capture Rate	>50, 000 wfms/s
Trigger Types	Edge, Pulse Width, Logic, Setup/Hold, Rise/Fall Time, Video
Math Functions	FFT
Probe Interface	TekVPI
Power Requirements	100 to 240 V ±10%, 50/60 Hz
