Tenda A33 User Manual

Version1.0
33
5.2 View network status of the WiFi extender
To access the page, choose Network Status.

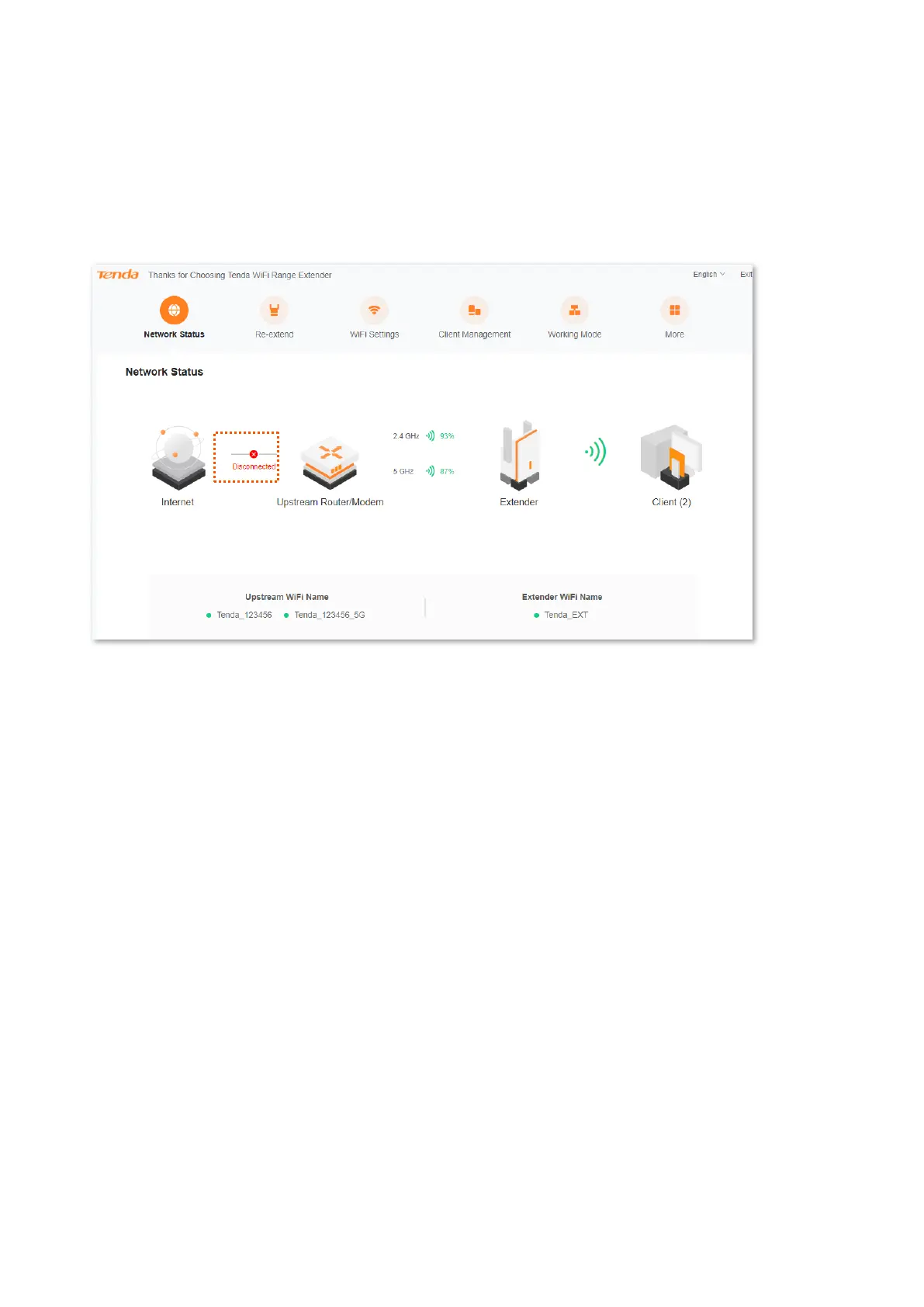

In the extender mode, if you see Disconnected between Internet and the Upstream
Router/Modem, which is shown as below:
It indicates:
The upstream device is disconnected from the internet, and the WiFi extender fails to access the
internet. You are recommended to check the network status of the upstream device.

Tenda A33 Specifications

General

Maximum data transfer rate	1000 Mbit/s
Antennas quantity	2
Antenna gain level (max)	5 dBi
Wi-Fi	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Frequency band	5/2.4 GHz
Signal strength	20 dBm
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	2402 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1
Security algorithms	WPA-PSK, WPA2-PSK, WPA3
Power LED	No
Product type	Network repeater
Product color	White
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	CE, RoHS
Certification	FCC
DC output current	1 A
DC output voltage	12 V
Power consumption (typical)	11 W

Weight and Dimensions

Depth	72 mm
Width	123 mm
Height	47.5 mm
