Page 33
SMW Oven Service ManualWarming Drawer Section
2. To replace heating element:
a. Remove screws from element brackets in back of the liner.
b Disconnect the wires from the bake element.
c. Connect wires to the new element.
3. To replace liner slides:
a. Remove two screws holding slides n liner
b. Reinstall new slides into liner with 2 screws.

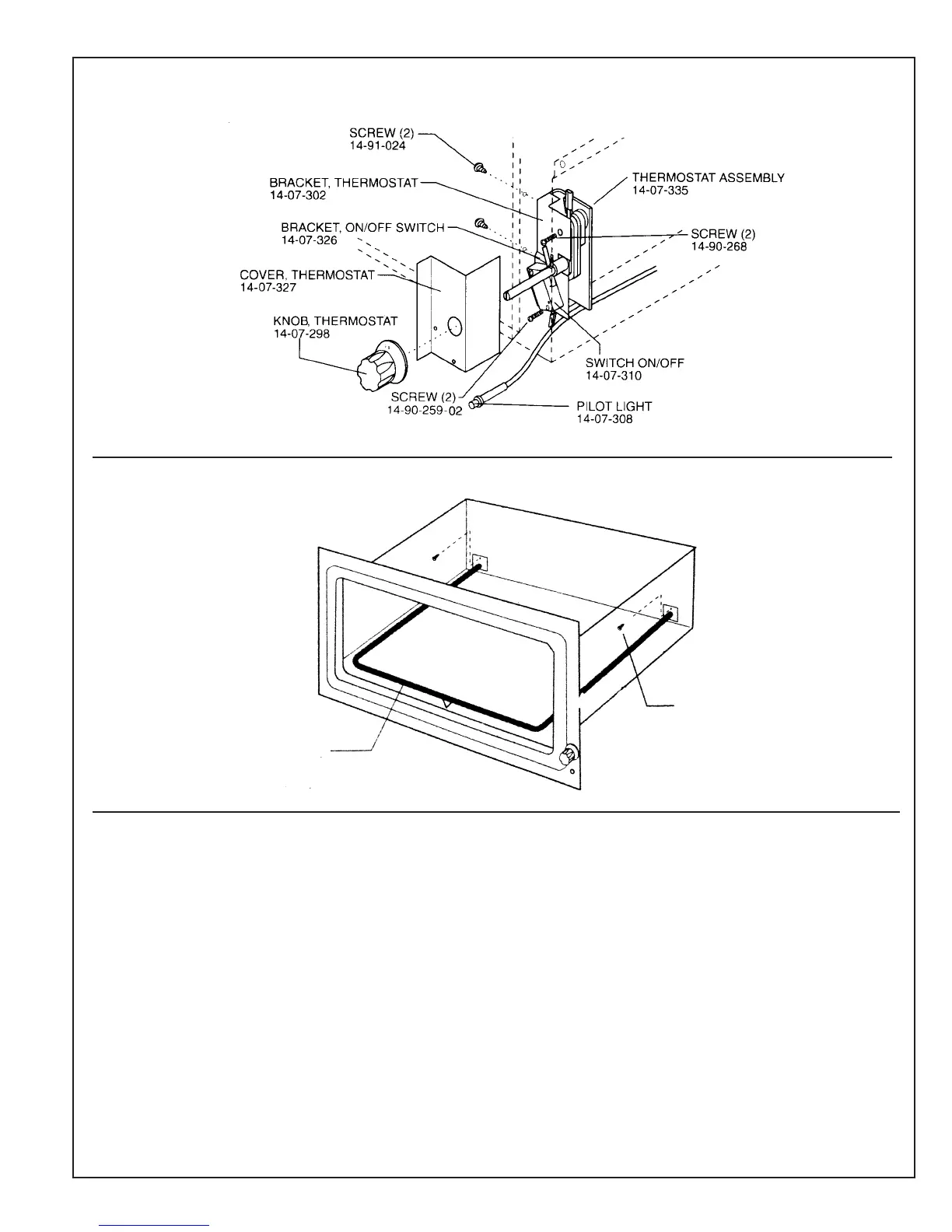

Figure 3. Control Assembly
Screw (2)
Heating Element
Figure 4. Heating Element
