Page 81
SMW Oven Service ManualLower Oven Section
NOTE: The Self-Clean cycle is a continuation of the Self-Clean Preheat cycle.
Press the SELF-CLEAN keypad and the following events will occur on the relay board:
• The L1 Relay connects L1 line voltage to the Bake and Broil Elements.
• Bake Relay K1 and Broil Relay K2 close and connect the L2 (120-volt) line to the Bake and Broil
elements. NOTE: The Broil Element is on for 44-seconds, and draws 15-amperes during each 1-
minute cycle. The Bake Element is on for 15-seconds, and draws 11-amperes during each 1-minute
cycle.
• After Self-Clean Preheat, Relay K2 cycles off, via the thermostat. When the thermostat cycles back
on, (to maintain the 850˚F self-clean temperature), Relays K1 and K2 are alternately used to maintain
the self-clean temperature until its time has expired, at which point, the oven turns off.

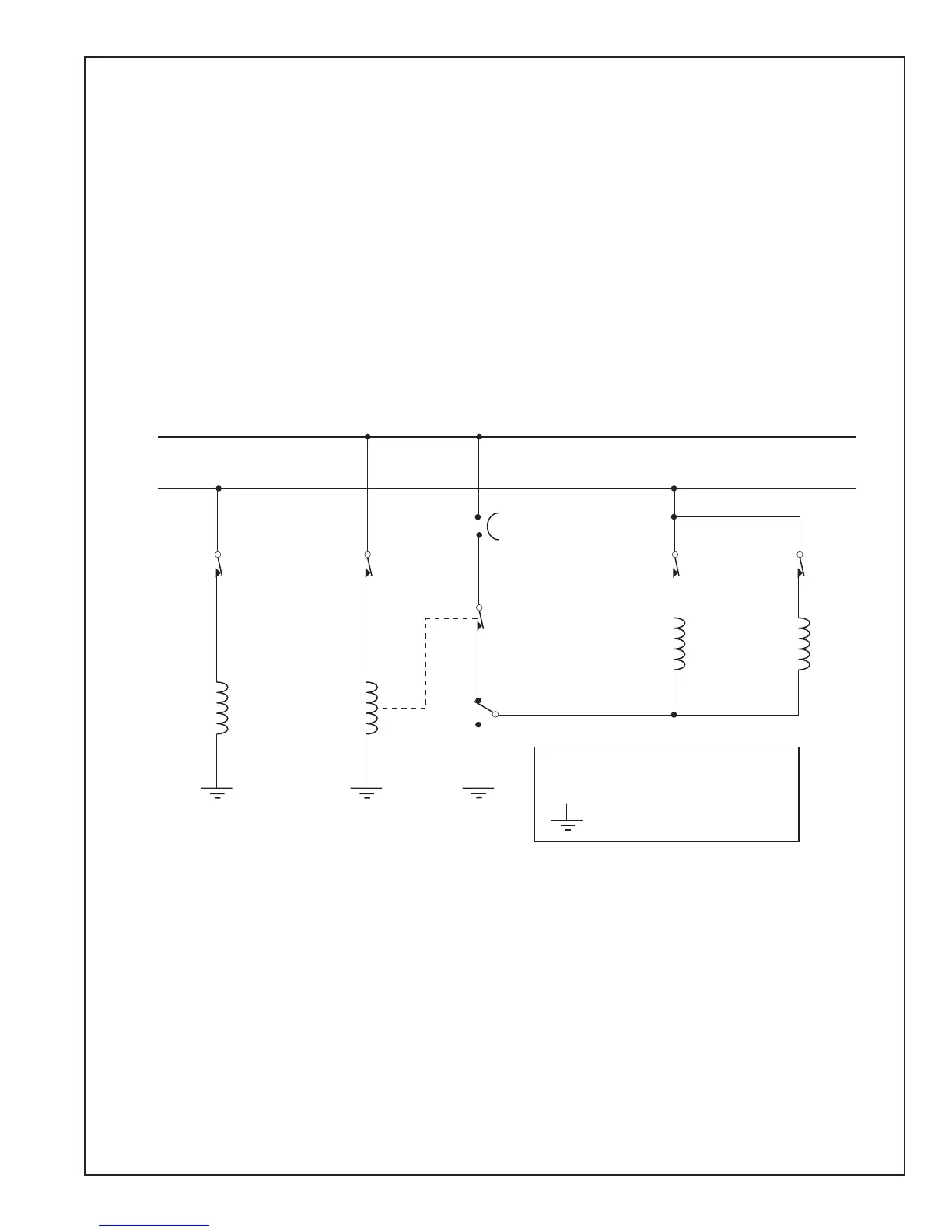

Self-Clean Cycle
L2
L1
Cooling
Fan
K6
Cooling Fan
Relay
N.O.
Stalled
Fan Relay
Air
Switch
Bake
K1
Bake
Relay
N.O.
K2
Broil
Relay
N.O.
Broil
44 Seconds
15 Amps
15 Seconds
11 Amps
N.O. = Normally Open Contacts
N.C. = Normally Closed Contacts
= Neutral Return
K8
L1 Relay
N.C.
N.O.
High-Temp
Cutout
Stalled Fan
Relay Contacts
N.O.
To Next Page
