Page 59
SMW Oven Service ManualLower Oven Section
REMOVING THE OVEN DOOR COMPONENTS
1. To remove any of the oven door components,
remove the oven door from the oven (see
Page 57).
2. Refer to Figure 25 as you remove the door
components. The illustration shows the or-
der of removal.
When you work on the oven, be careful
when handling the sheet metal parts.
There are sharp edges present and you
can cut yourself if you are not careful.
CAUTION
Door
Handle
Door Glass
W/Bracket
Assemby
Lower Door Baffle
Bottom
Bracket
Insulation Cover
Upper Door Baffle
Right Glass Support
End Cap
Door Glass Support
Door Strike
Hinge
End Cap
Inner Glass
Glass Spacer
Left Side
Glass Support

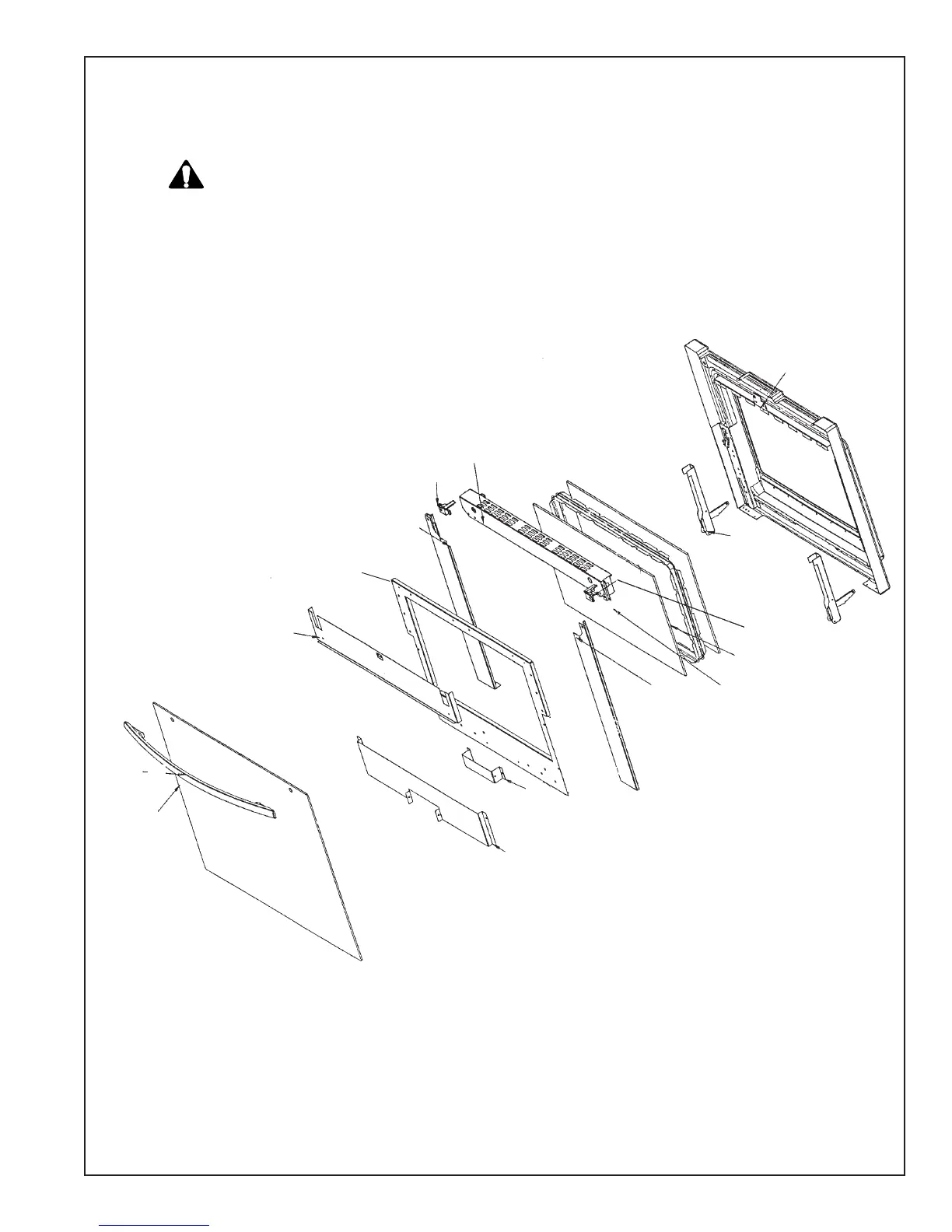

Figure 25
To Next Page
