9-10 Schematic Circuit Tracings Electrical, Refrigeration and µP-D Menu Flow Diagrams
CSR-20 & CSR-40, September 1999
1
Typical model shown with three evaporator fans.

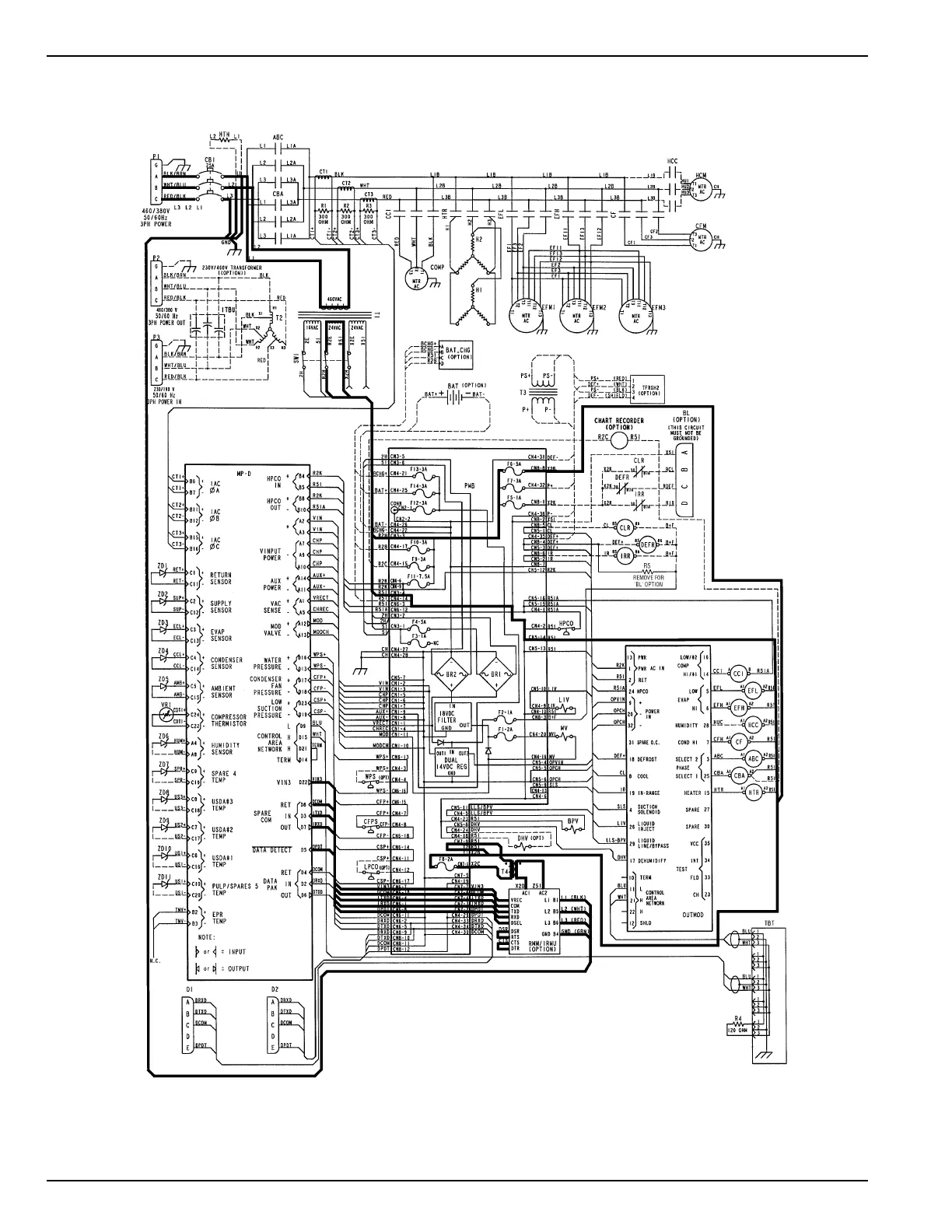

Integrated Remote Monitor System Circuit
1
(Option)
