4-22 Menu View Functions µP-D Controller
CSR-20 & CSR-40, September 1999
NOTE: The controller returns to the Standard
Display from a View Menu screen after about 10
seconds, or when the SELECT key is pressed
and held for 3 seconds.
GRADE Submenu
The Grade submenu displays the sensor grade of each sensor
installed on the unit. With the unit On/Off switch ON and the
controller showing the Standard Display:
NOTE: If a sensor grade is set to “0”, it means the
sensor has been ice bath calibrated. Original unit
sensors are ice bath calibrated at the factory. See
“Setting the Sensor Grades” in this chapter for more
information.
1. Press the SELECT key to enter menu (display shows
“MENU <--->”.
2. Press DOWN key until display shows “MENU VIEW”.
3. Press the SELECT key to enter VIEW submenu (display
shows “VIEW <--->”).
4. Press the UP key until “VIEW GRADE” shows in the
display.
5. Press the SELECT key to enter the Grade submenu.
Display will show “GRADE <--->”.
6. Press DOWN key to view functions in GRADE submenu.
Display shows submenu function and value (e.g. “RETG
5”).
NOTE: The controller returns to “GRADE <--->”
screen from a sensor grade screen after about 10
seconds. The controller returns to the Standard
Display after another 10 seconds, or when the
SELECT key is pressed and held for 3 seconds.
LOG Submenu
• The Log submenu provides two scrollback displays:
- TEMP: Display shows unit operating information record-
ed with the last 100 data logs.
- PTI: Display shows “PASS” or “FAIL” and individ-
ual test results recorded for the last 4 Full Pretrip
tests.

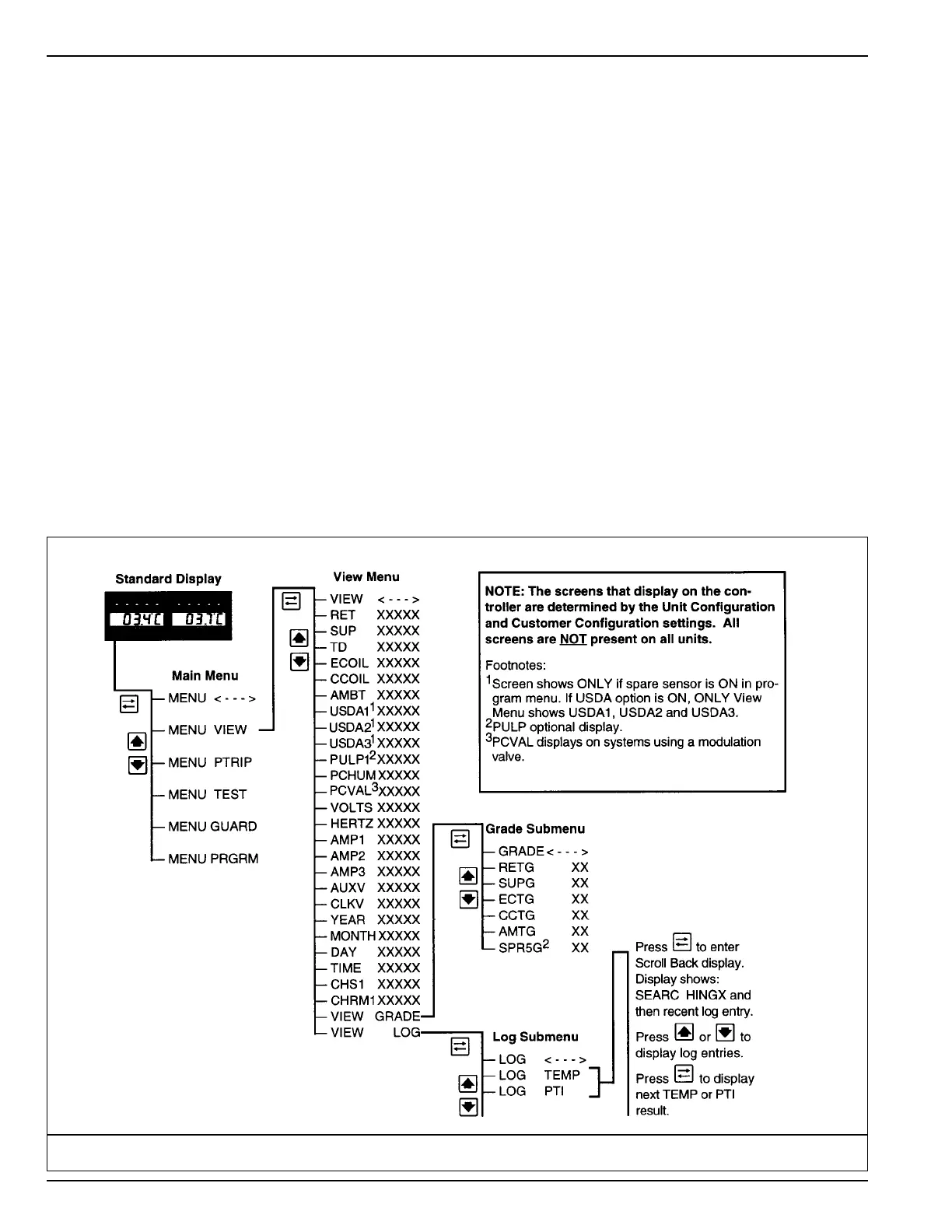

MENU VIEW Screen Flow Diagram (See Display Acronym Definitions on pages 4-4 to 4-6)
To Next Page
