Name: Thermo King CSR-40 Series
Brand: Thermo King
Rating: 5 (1 reviews)

To Next Page

To Previous Page

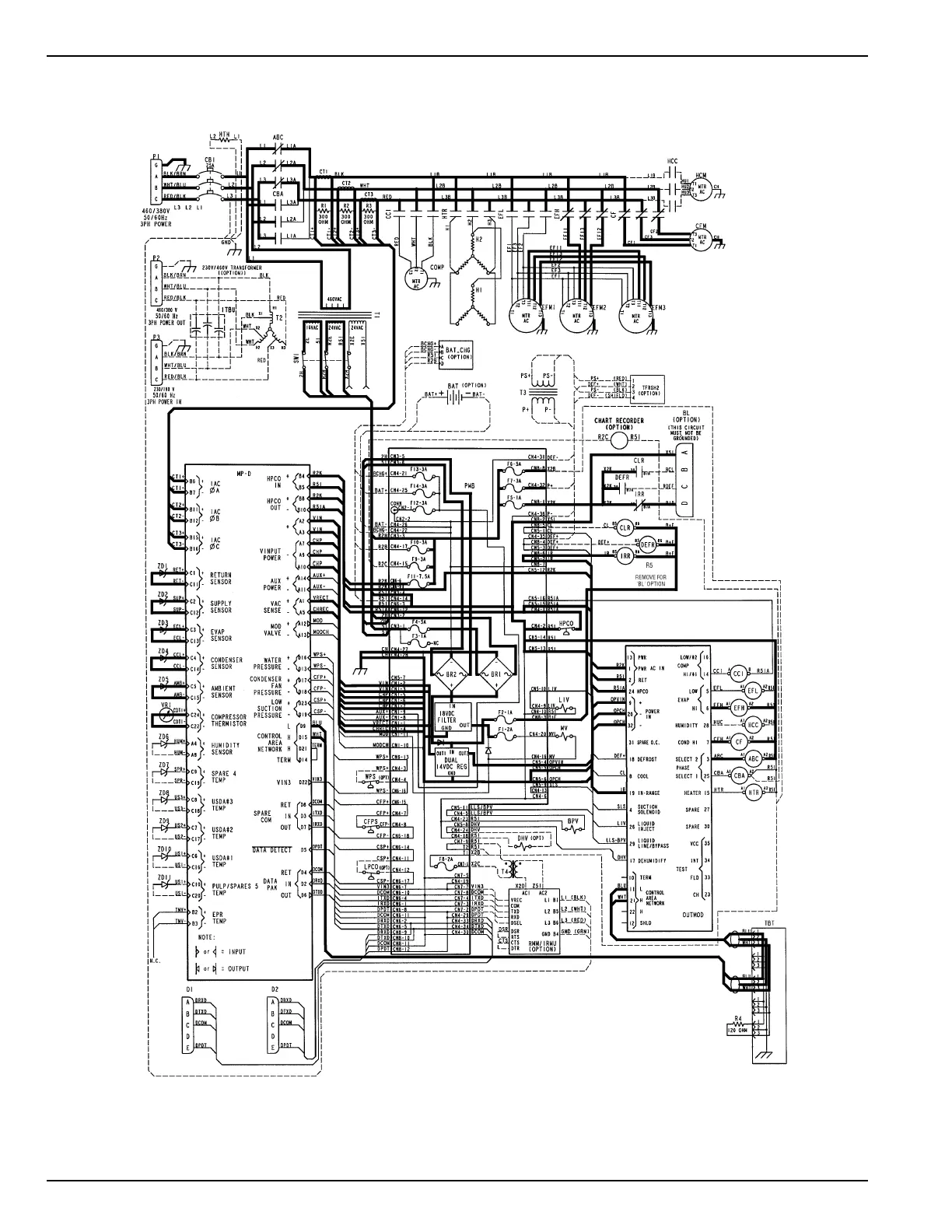

9-22 Schematic Circuit Tracings Electrical, Refrigeration and µP-D Menu Flow Diagrams

CSR-20 & CSR-40, September 1999

Typical model shown with three evaporator fans.

The controller stops the compressor. If the condenser fan was ON, it will operate for 30 seconds and then stop.

Null Mode

— Chill Load (Setpoint at -9.9 C [14.1 F] or Above), Condenser Fan ON

; Economy Mode OFF
