7 PROGRAMMING AND SETTINGS7 PROGRAMMING AND SETTINGS
All relay programming and adjustment operations may be performed through MMI (keyboard and
display) or using a Personal Computer with the aid of the ThyVisor software.
7.1 SW ThyVisor
The ThyVisor sw is a “browser” of data (setting, measure, etc..); it implements an engine that is
afford to rebuild the menu set up and the relationships to data concerning all Thytronic protective
relays by means of XML files.
ThyVisor installation
The latest release of ThyVisor can be downloaded free of charge from the www.thytronic.it site
(Products - Software).

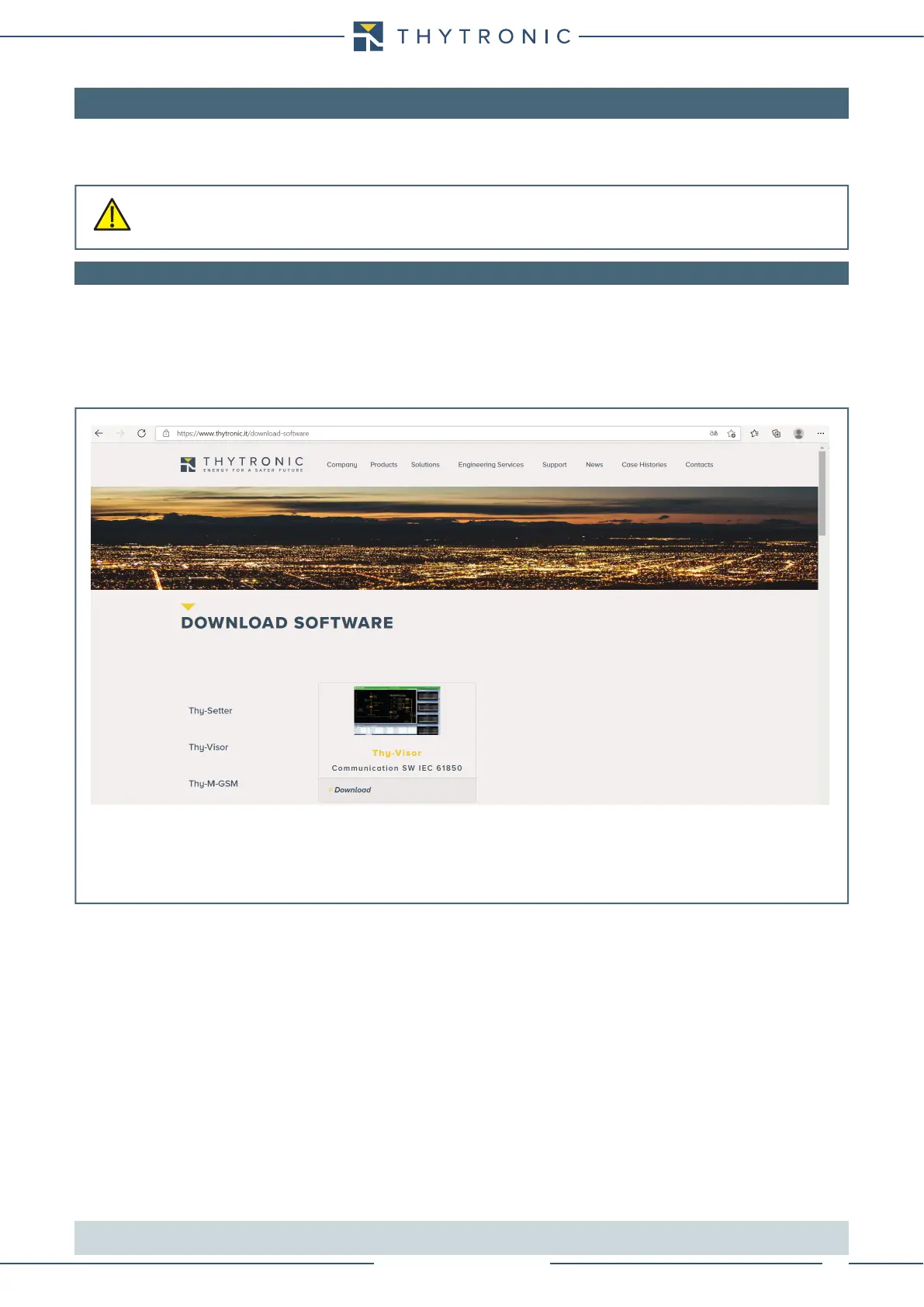

[1]
ThyVisor use
Please refer to ThyVisor user manual for detailed instructions.
The document is available on www.thytronic.it (Product / Sotware / ThyVisor - Download area).
Note 1 Starting from the 3.5.9 release it is necessary to download and install not only the application setup but the Template setup also. In case off
updating download and install only the new release.
WARNING
For safety reasons, a change of the following parameters become active only after an hw reset:
- Relay nominal frequency (f
n
)
- The changes become operational after the relay is turned off and on again.
