Tornado BD 14/4 User Manual

GB GB

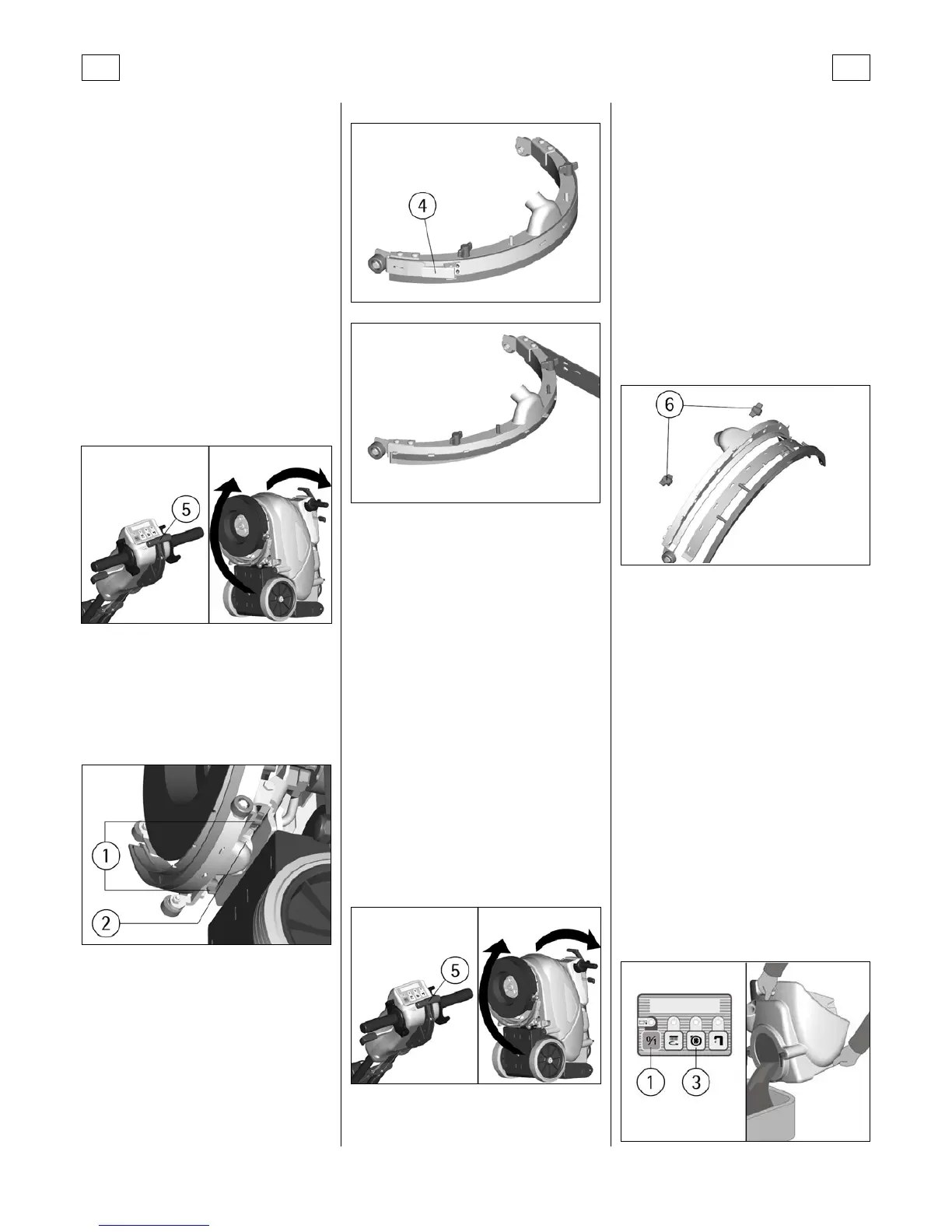

Rear squeegee rubber replacement
Check the rear squeegee rubber
wear and eventually turn or replace
it.
For the replacement it is necessary
to:
1. Rotate the squeegee lifting lever
(5) to lower the squeegee assenbly.
2. Tip over the machine backwards
(see under “POSITIONING OF
THE MACHINE FOR
MAINTENANCE AND
PARKING") remember to switch
off the main switch and to empty
the tanks before tipping over the
machine.
3. With the machine in this
position remove the wing nuts (1)
4. Remove the squeegee hose (2)
and remove the squeegee
assembly.
5. Release the catch (4) of the
rubber holder blade and take the
rubber off to turn it to a new side
or replace it.
6. Check that the coupling and the
squeegee hose are not obstructed
and clean the entire assembly.
To reassemble the squeegee,
reverse the operations above.
Front squeegee rubber replacement
Check the wear of the front
squeegee rubber and replace it
when necessary.
For the replacement it is necessary
to:
1. Rotate the squeegee lifting lever
(5) to lower the squeegee
assembly.
2. Tip the machine over backwards
(see under “POSITIONING OF
THE MACHINE FOR
MAINTENANCE AND
PARKING") remember to switch
off the main switch and to empty
the tanks before tipping over the
machine.
3. With the machine in this
position proceed to disassemble
the squeegee and then the rear
squeegee rubber (see under
“REAR SQUEEGEE RUBBER
REPLACEMENT”).
4. Take off the wing nuts (6) in the
upper part of the squeegee body,
separate the two metal parts that
form the squeegee body to take off
the front rubber.
5. Clean and rinse all of the
components.
To reassemble the squeegee
reverse the operations above.
TROUBLESHOOTING GUIDE
The suction motor does not work
1. Check the charge level of the
batteries that is visible by first
activating the main switch (1) (see
under “BATTERIES
RECHARGING”).
2. Verify that the suction motor
switch (3) is on.
3. Check the level in the recovery
tank (see under “OVERFLOW
DEVICE”) and if necessary, empty
the tank.
If the problem persists, please
contact the authorized technical
assistance.
13
