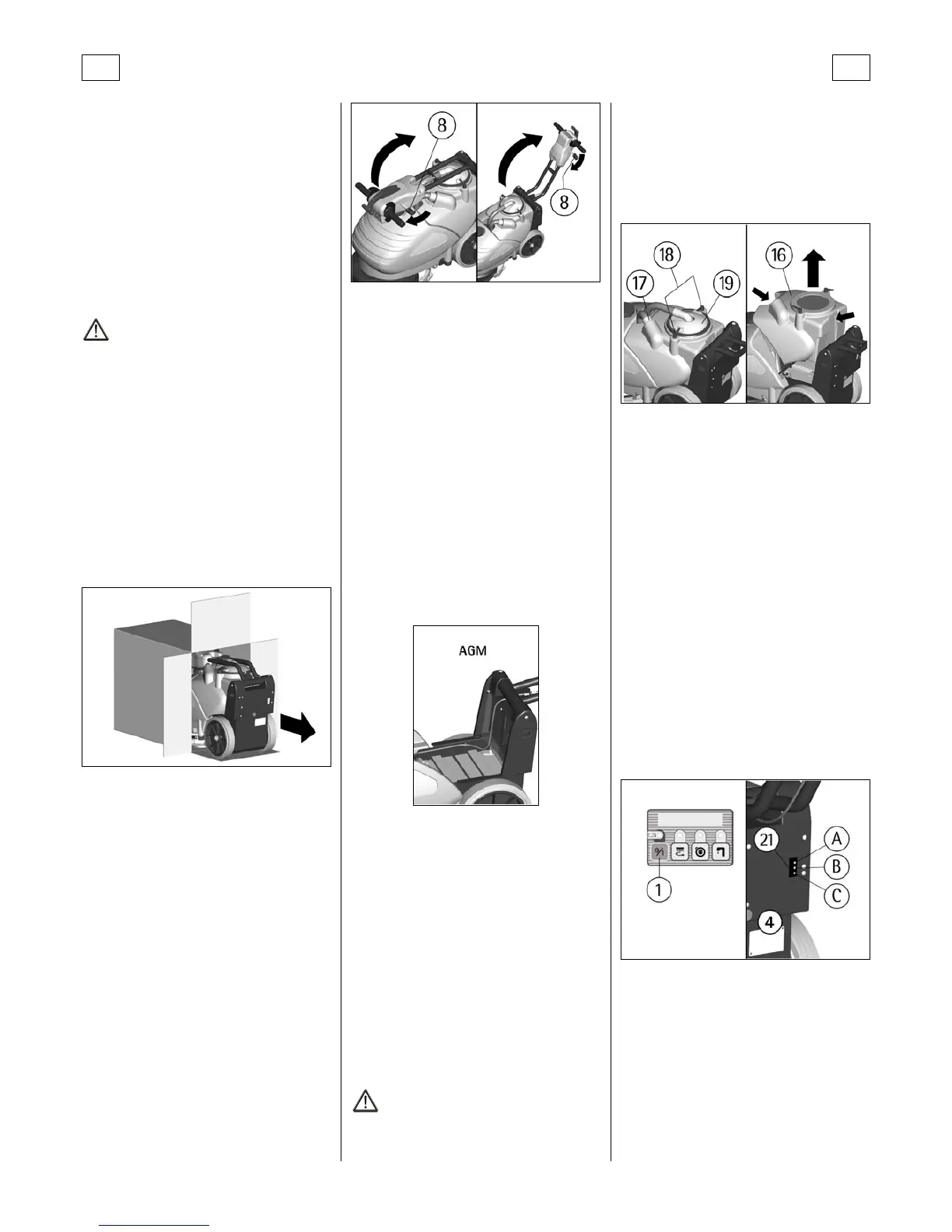

BEFORE USE
Handling of the packed machine
The machine is supplied with
suitable packing.
The total weight is 165lbs.
Packing dimensions:
Base: 30 in x 16 in
Height: 24.5 in
ATTENTION:
Do not place more than 2 packings
on top.
Unpacking of the machine
1. Open the packing as shown in
the figure.
2. Take the machine off the
packing avoiding heavy contacts to
mechanical parts.
3. Keep the packing for eventual
transport needs.
Movements of the handle bar
The handle bar in the package
arrives in closed position.
To rotate the handle bar in one of
the different working positions to
move the machine:
1. Pull up the release lever (8) near
the handle bars.
2. Rotate the handle bar into the
working position while holding the
release lever (8).
3. Release the release lever (8) to
lock the handle bar.
Use the same procedure for further
height adjustment of the handle bar
to find the most comfortable
working position.
Batteries
This machine is supplied with two
batteries already connected in
series, placed in its appropriate
compartment under the recovery
tank.
In case the batteries need to be
disassembled and/or replaced,
please contact the authorized
technical assistance.
In fact, the replacement must be
made exclusively with batteries
which have the identical
performances as the ones already
installed.
To reach the battery compartment
it is necessary to:
1. Remove the squeegee hose from
its seat (17).
2. Remove the suction filter cover
(19) after turning the blocking
levers (18).
3. Lift and remove the recovery
tank (16) holding it from the
provided handles. One on the front
and one on the rear of the tank.
ATTENTION:
Strictly follow manufacturer/distributor
indications for the maintenance and
daily recharge of the batteries.
Specialized staff, using suitable
protection accessories must execute
all installation and maintenance
operations.
Batteries recharging
(Standard version with AGM
batteries)
The charge level of the batteries is
visible by first activating the main
switch (1) placed on the instrument
board, through three luminous leds
placed on the frame in the rear part
of the machine.
A: green led on = batteries
charged.
B: orange led on = level at half
charge.
C: red led on = complete discharge
of the batteries with consequent
automatic switching off of all the
machine's function.
To prevent permanent damages to
the batteries, it is essential to arrive
to their complete discharge every
6/7 cycles, providing for the
recharge only when the red signal
of discharged batteries is activated.
In fact, an extended series of
charging cycles carried out when
the batteries still have a residual
