Tornado BD 26/27 User Manual

19
BRUSHES DISASSEMBLY
With the brushes base in lifted position
(see under paragraph "BRUSHES AS-
SEMBLY"), rotate the brushes sharply
in order to release the button from the
coupling spring until it becomes free
and wash them with a water jet. The
gure shows the rotating sense for
brushes release.
ATTENTION:
To carry out brushes disassembly
operations with the electric supply on,
may cause damages to hands.

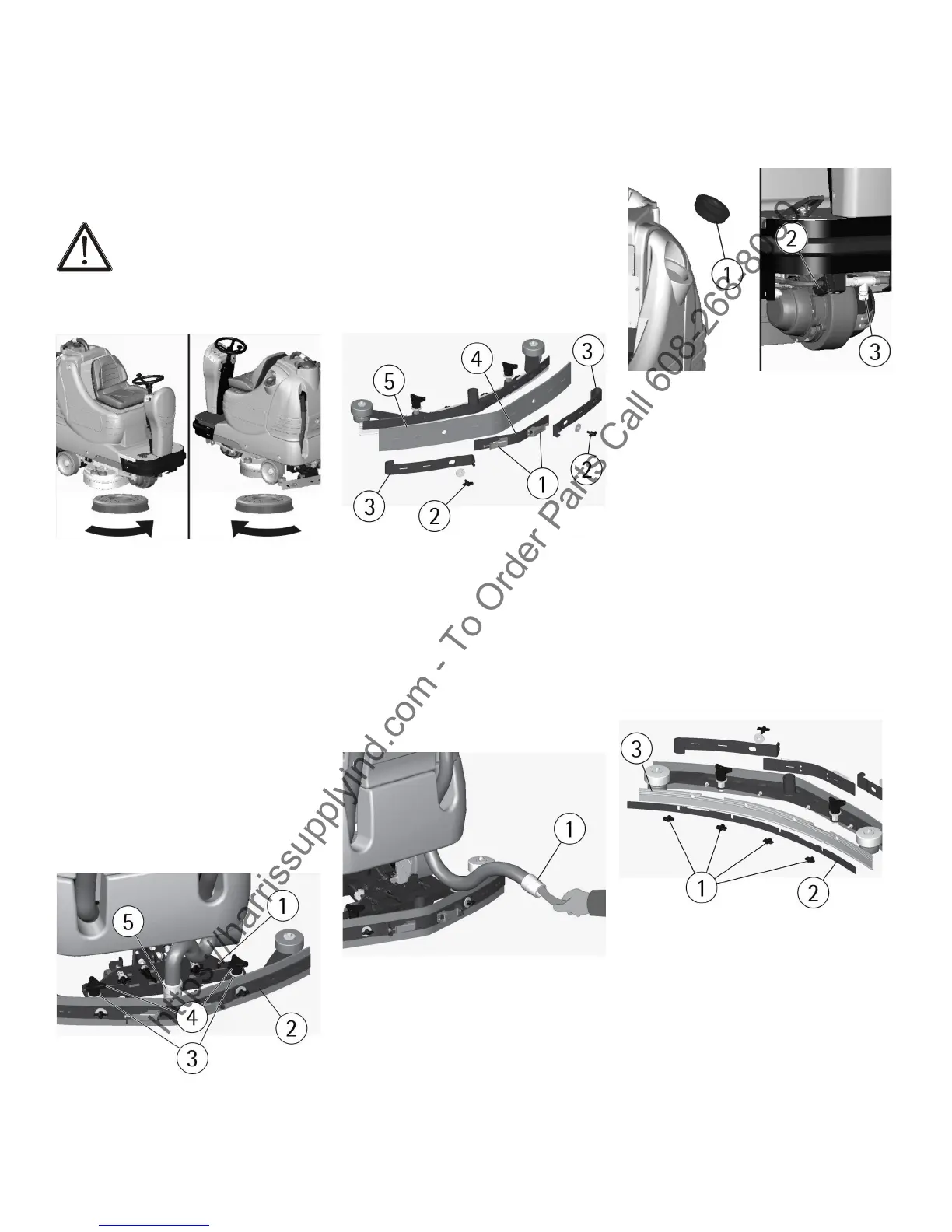

SQUEEGEE CLEANING
Keeping the squeegee clean guaran-
tees the best drying result.
For cleaning it is necessary to:
1. Take off the squeegee hose (5) from
the coupling.
2. Disassemble the squeegee (2) from
its support (1) by loosening the knobs
(4) counterclockwise.
3. Clean the internal part of the squee-
gee inlet.
4. Clean the squeegee rubbers.
5. Reassemble all parts paying atten-
tion to put the washers (3) into posi-
tion, they are two for each knob, so
that they are assembled one under
and the other on top on each of the
two slots on the support.
WEEKLY MAINTENANCE
REAR SQUEEGEE RUBBER CHECK
Check the squeegee rubber wear and
turn or replace it if needed.
For the replacement it is necessary to:
1. Lift the squeegee (see under
paragraph “STOP OF THE MACHINE
AFTER CLEANING OPERATION”). 2.
Unhook the latches (1).
3. Unscrew the wing nuts (2) to take
off the terminals of the outer rubber
holder blades (3) and then take off the
central rubber holder blade (4).
4. Take off the rubber (5), turn it to a
new side or replace it.
To reassemble the squeegee reverse
the operations.
SQUEEGEE HOSE CLEANING
Weekly or in case of insufcient suc-
tion, it is necessary to check that the
squeegee hose is not obstructed. To
clean it, proceed as follows:
1. Take off the hose (1) from the
squeegee coupling.
2. Wash the inside of the hose with a
water jet.
3. To reassemble the hose reverse the
operations.
CLEANING OF THE SOLUTION
TANK AND OF THE OUTER FILTER
1. Bring the machine to an appropri-
ate place for the detergent solution
draining.
2. Unscrew the solution tank cap (1).
3. Unscrew the lter cap (2) and take
off the lter. Be careful not to lose the
gasket of the cap.
4. Unscrew the drain plug of the deter-
gent solution (3).
5. Rinse the solution tank and the
components of the lter with a water
jet.
6. Reassemble all parts.
TWO-MONTH MAINTENANCE
FRONT SQUEEGEE RUBBER
CHECK
Check the wear of the squeegee rub-
ber and eventually replace it.
For the replacement it is necessary to:
1. Take off the squeegee (see under
paragraph “SQUEEGEE CLEANING”).
2. Disassemble the rear part of the
squeegee (see under paragraph
“REAR SQUEEGEE RUBBER
CHECK”).
3. Unscrew the wing nuts (1) and take
off the front rubber holder blade (2).
4. Replace the front rubber (3).
To reassemble the squeegee reverse
the operations.
SIX-MONTH MAINTENANCE
SPLASH GUARD RUBBER CHECK
With the brushes assembled, the
splash guards must slightly touch the
oor. If they are worn, they have to
be replaced. Just release the springs
placed in the rear part of the brushes
base group from the slots placed at
the free ends of the metal strips to
remove the rubbers and to reinsert
the new ones (see under paragraph
“SPLASH GUARD ASSEMBLY”).
