6

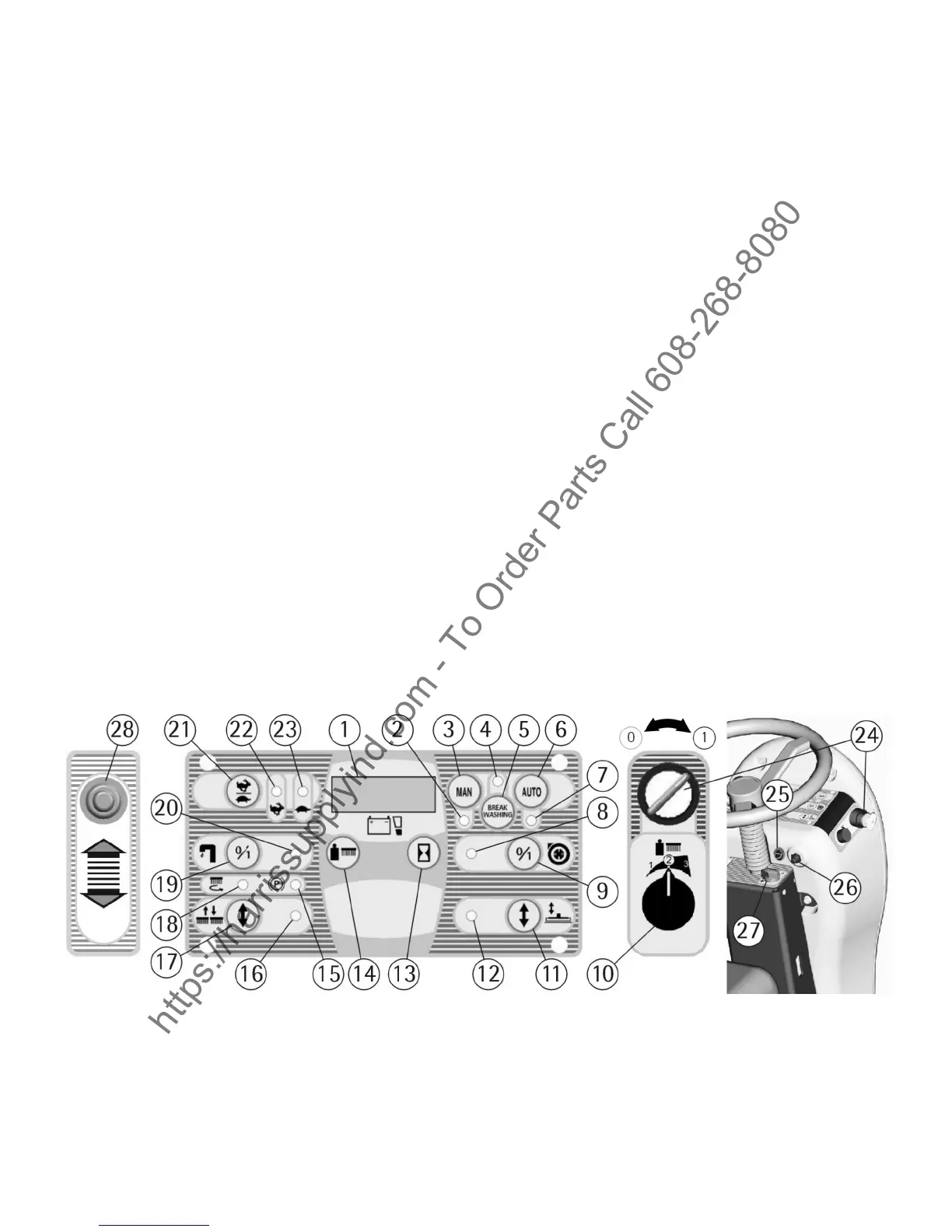

LEGEND PANEL OF CONTROLS
1
DISPLAY 15 SIGNAL LAMP PARKING BRAKE ON
2
SIGNAL LAMP MANUAL MODE ON 16 SIGNAL LAMP UP/DOWN BRUSHES
3
PUSH BUTTON FOR MANUAL MODE 17 PUSH BUTTON UP/DOWN BRUSHES
4
SIGNAL LAMP MODE BREAK WASHING ON 18 SIGNAL LAMP BRUSHES ROTATION
5
PUSH BUTTON FOR MODE BREAK WASHING 19 PUSH BUTTON WATER OPENING (SOLENOID
VALVE) or PUSH BUTTON ADJUSTMENT DETER-
GENT DOSAGE 3SD system (OPTIONAL)
6
PUSH BUTTON FOR MODE AUTOMATIC 20 SIGNAL LAMP WATER OPEN (SOLENOID VALVE)
7
SIGNAL LAMP AUTOMATIC MODE ON 21 PUSH BUTTON FOR SPEED SELECTION
8
SIGNAL LAMP SUCTION MOTOR ON 22 SIGNAL LAMP SELECTION FAST SPEED
9
SWITCH SUCTION MOTOR 23 SIGNAL LAMP SELECTION SLOW SPEED
10
BRUSHES PRESSURE ADJUSTMENT KNOB 24 KEY SWITCH MACHINE ON
11
PUSH BUTTON UP/DOWN SQUEEGEE 25 SWITCH FOR FRONT LIGHT (OPTIONAL)
12
SIGNAL LAMP UP/DOWN SQUEEGEE 26 PUSH BUTTON HORN
13
PUSH BUTTON VISUALIZATION HOUR METER
(DISPLAY)
27 KNOB FOR SOLUTION VALVE
14
PUSH BUTTON VISUALIZATION BRUSHES PRES-
SURE SET (DISPLAY)
28 DIRECTION OF DRIVE SELECTOR
