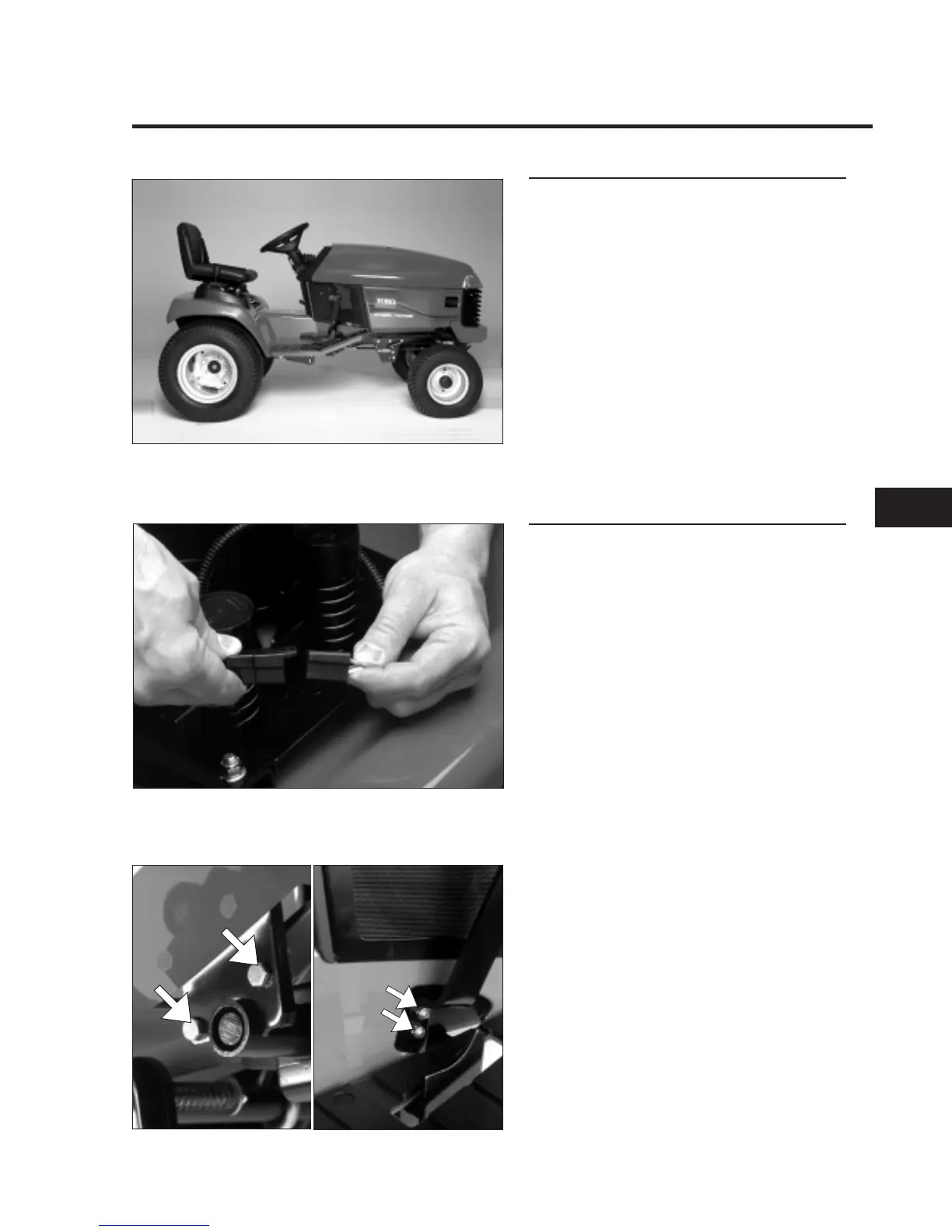

REAR FENDERS, FOOTRESTS, & TUNNEL
General Information
The seat, rear fenders, footrests, and tunnel can
be removed as a unit providing easy access to
chassis components.
Removal
1. Disconnect the electrical connections for the
seat switch, cruise control, and taillights (as
applicable) from the wiring harness.
NOTE: The cruise control and taillights
share the same connector, which is located
under the right fender.
2. Remove the brake and motion control
pedals.
2.0109.039
2.0109.003
2.0109.021
2.0109.020
2
CHASSIS
5xi Series Tractor Service Manual 2-7
