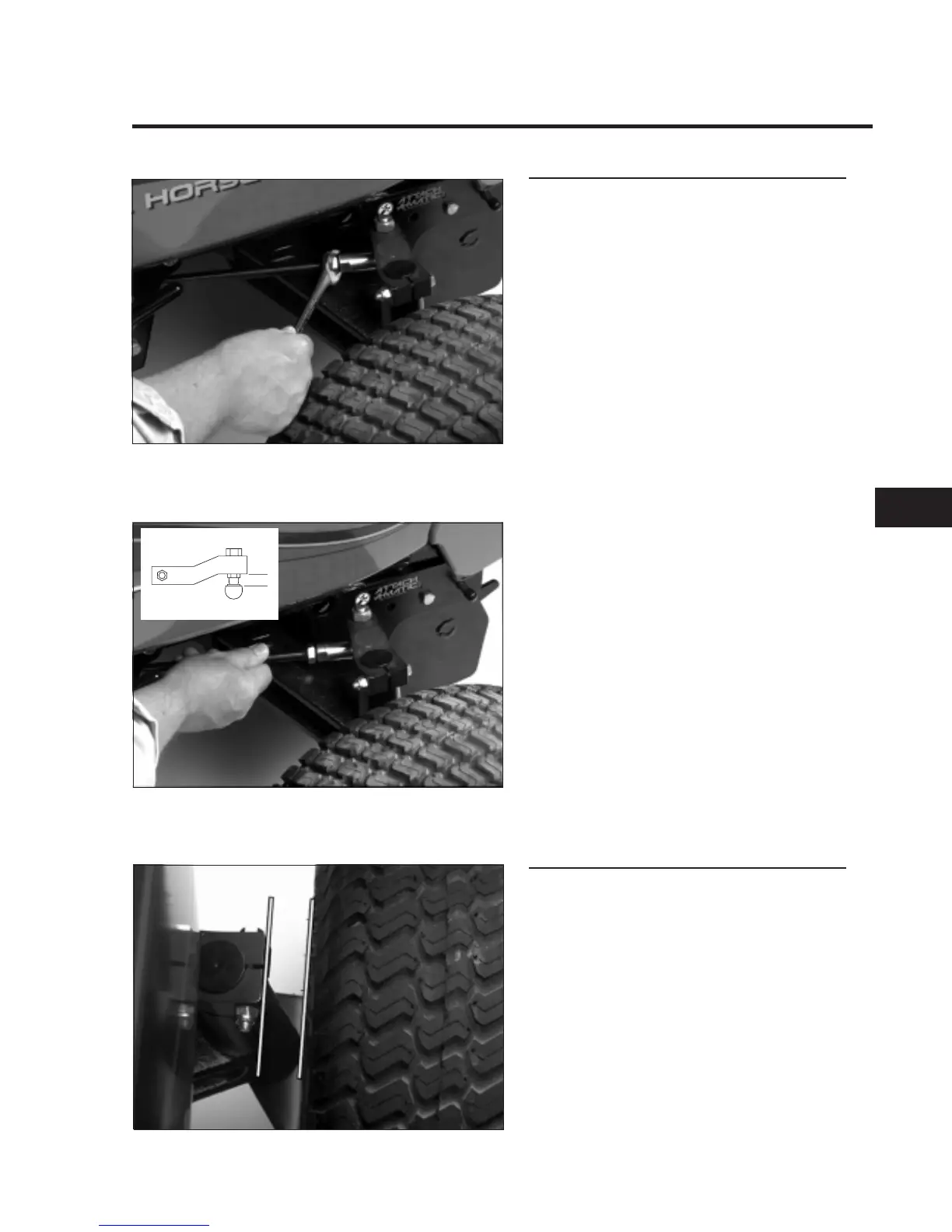

Adjustment
1. Loosen the jam nuts at the ends of the
steering rods.
2. Rotate both steering rods equal amounts to
adjust the toe-in to 1/8" to 1/4" (3 to 6 mm) .
3. Recheck the toe-in as described earlier.
IMPORTANT: Make sure that the flat surface
on the top of the front tie rod ends are
parallel to the bottom of the steering arms
(inset).
Spindle Alignment
When installing the spindle to the steering arm,
you must align the wheel so that it is parallel to
the steering arm as shown.
2.0109.047
2.0109.046
2.0109.048
2
CHASSIS
5xi Series Tractor Service Manual 2-11
