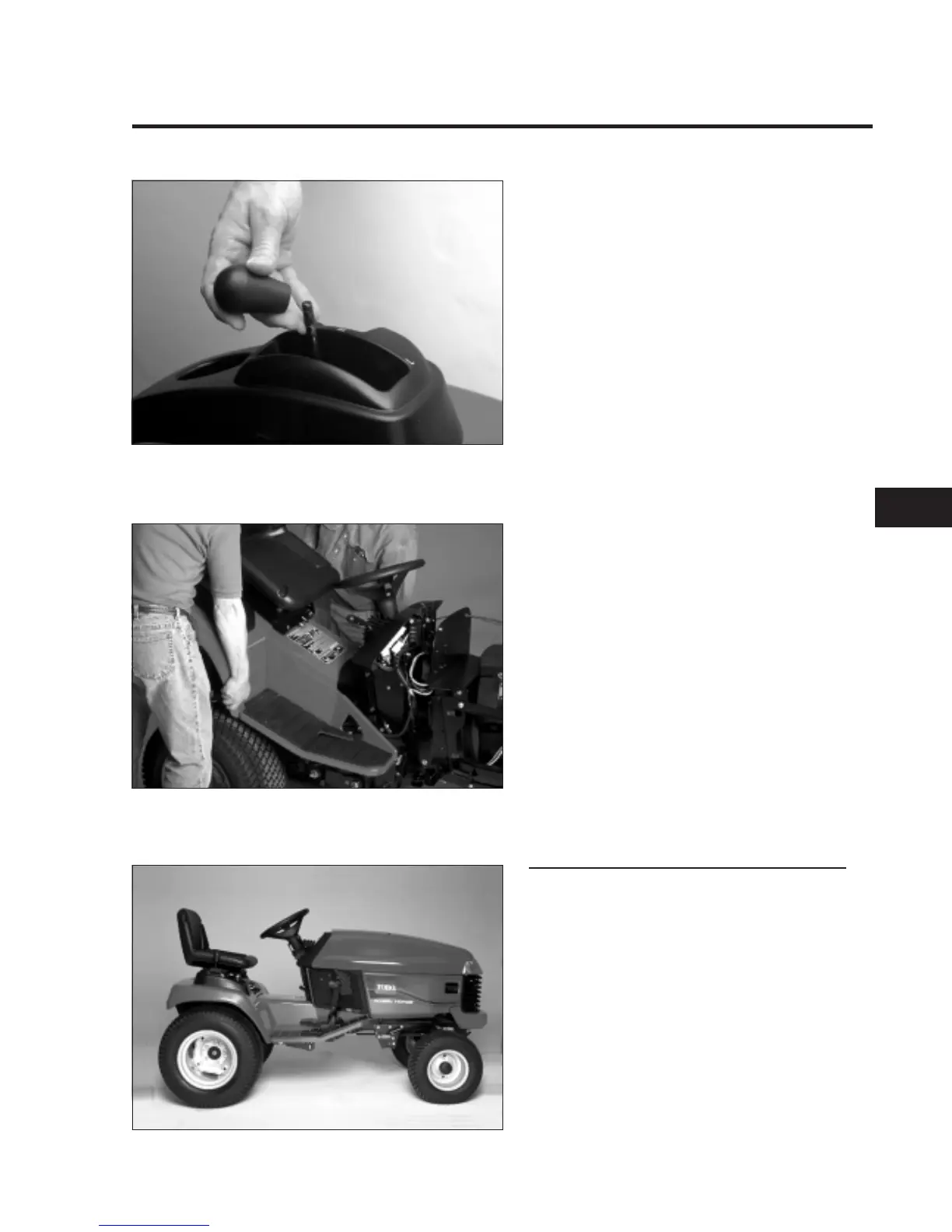

6. Remove the knob for the transaxle range
selector.
7. With the help of an assistant, lift the rear of
the fender assembly until it clears the
transaxle shift lever. Then remove the
assembly to the rear of the tractor.
Reassembly
Reverse steps 1-7 to reassemble the seat, rear
fenders, footrests, and tunnel.
NOTE: Failure to keep all hoses in place on the
top of the fuel tank could result in improper
operation of the fuel vent or supply system.
NOTE: Do not pinch any wiring between the
fender assembly and the top edges of the frame.
2.0109.017
2.0109.039
2.0109.014
2
CHASSIS
5xi Series Tractor Service Manual 2-9
