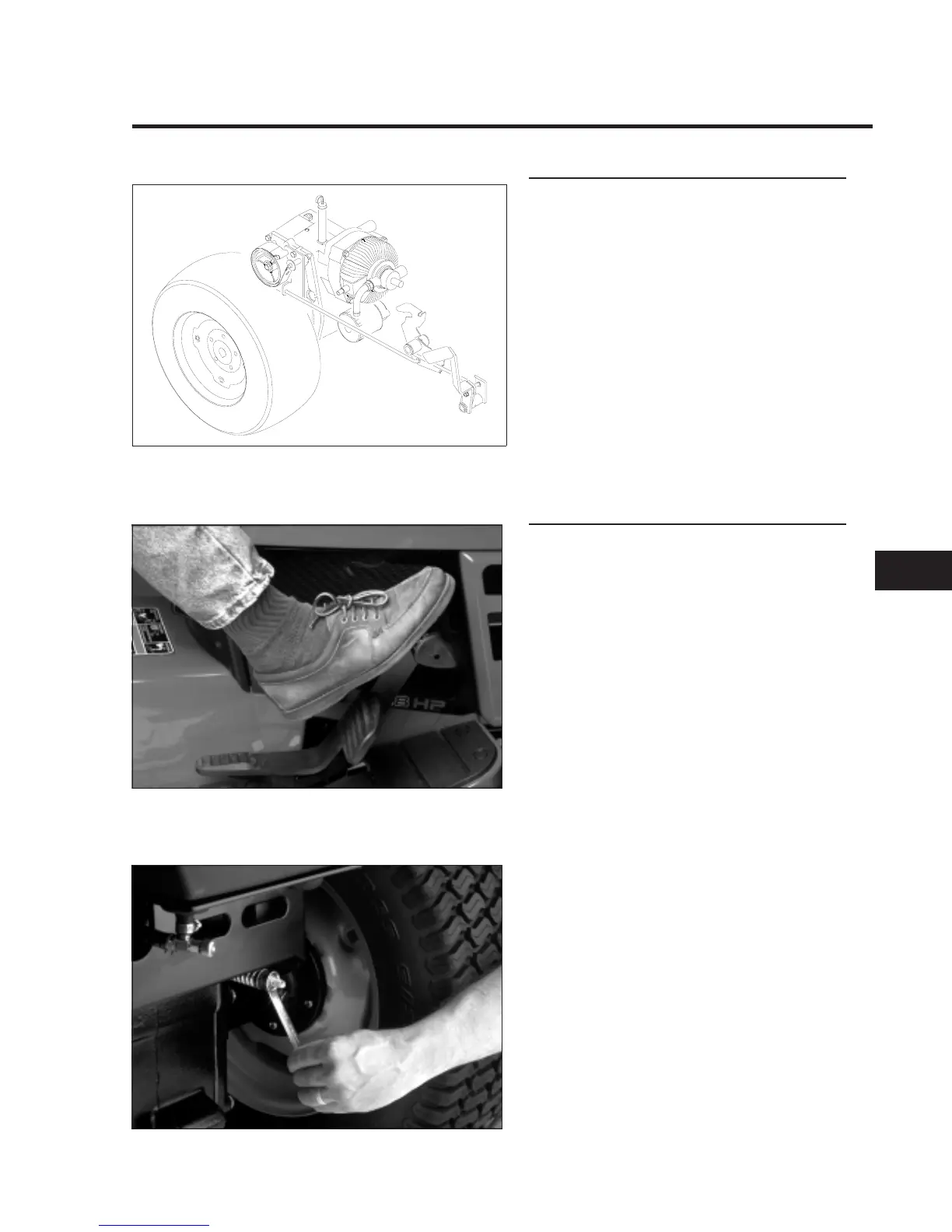

BRAKE
General Information
The 5xi series series tractor is equipped with an
external band parking brake which is located on
the right side of the transaxle.
When the brake pedal is pressed, the linkage
returns the transmission to neutral, then applies
the brake.
The primary function of the brake is to keep the
tractor from rolling after it has been stopped. It
can also be locked in the applied position and
serves as the parking brake.
Adjustment
1. Place the transmission in neutral.
2. Depress the brake pedal. There should be 2"
(51 mm) of free travel.
4. Turn the adjustment nut until the above
condition is met.
CAUTION: Do not overtighten the
adjustment nut.
3.7197.067
2.0109.010
2.0109.005
3
HYDROSTATIC DRIVE
5xi Series Tractor Service Manual 3-7
