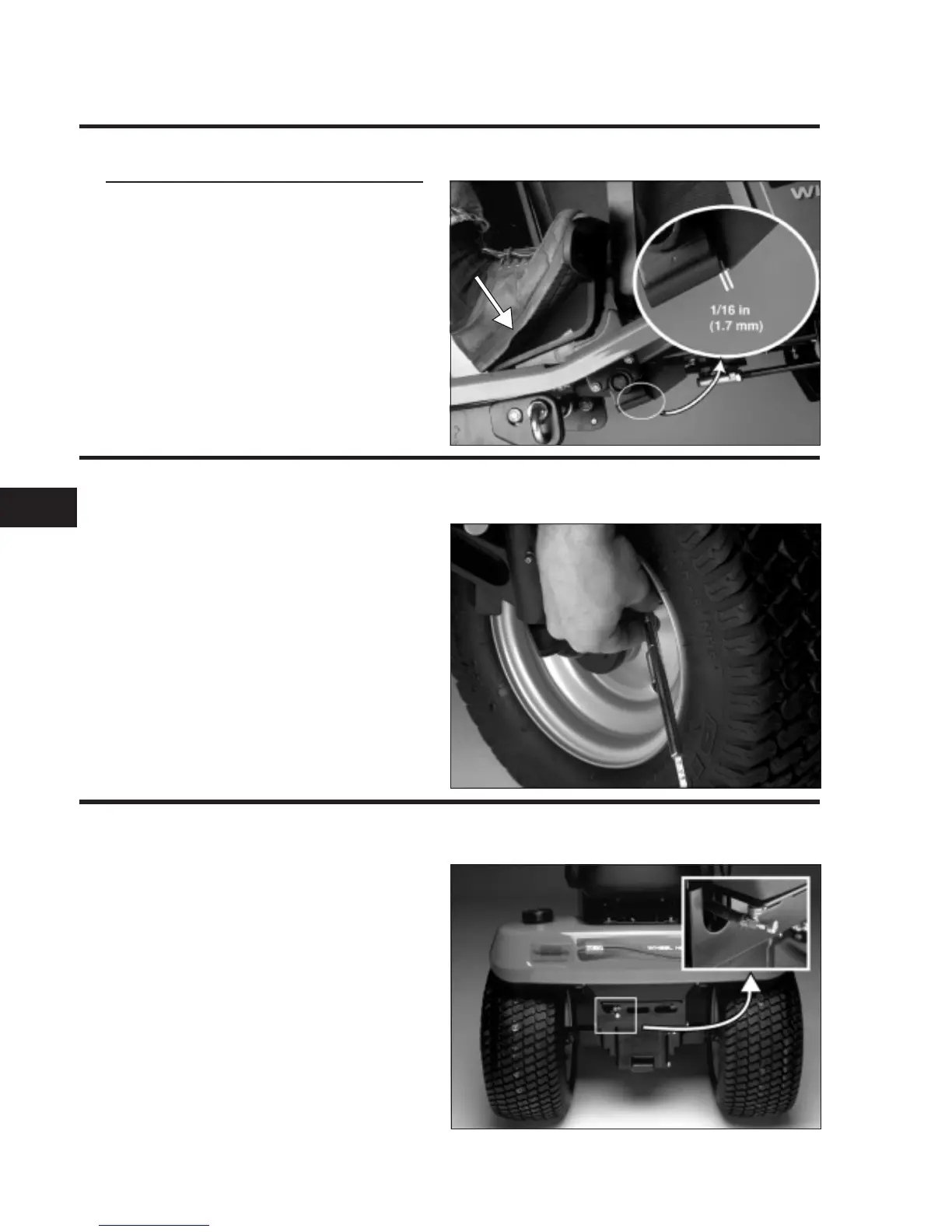

MOTION CONTROL PEDAL
Adjustment
1. Push the motion control pedal to the full
reverse position.
2. Check the clearance between the pedal
support and the reverse stop.
3. Adjust the rod as necessary to obtain the
correct clearance.
Clearance: 1/16" (1.7 mm)
TIRE PRESSURE
Pressure: 12 psi (82.7 kPa) front and rear.
Check the tire pressure after every 25 operating
hours or monthly, whichever occurs first. Check
the tires when they are cold to get the most
accurate pressure reading.
Since tire pressure affects the position of the
mower deck, it is important to check the tire
pressure before leveling the mower and to
maintain the the correct tire pressure to
preserve the level adjustment.
FUEL TANK SHUT-OFF VALVE
The fuel shut-off valve is located on the bottom
of the fuel tank.
Normally the shut-off valve is kept in the ON
position. However, if transporting the tractor on
a trailer or truck, it is good practice to place the
valve in the OFF position. Although unlikely with
this tractor’s fuel system design, closing the fuel
valve will prevent the possibility of the
carburetor flooding over while going over
bumps and filling the crankcase with gasoline.
2.0144.034
2.0109.29
2.0109.045
22
CHASSIS
2-20 5xi Series Tractor Service Manual
