Toro 520XI User Manual (English)

Questions and Answers:

K
kbradleyJul 29, 2025
What to do if my Toro Tractor will not operate in either direction and the engine bogs down?
- J
  Jennifer AndersonJul 30, 2025
  If your Toro Tractor won't operate in either direction and the engine bogs down or stalls, it could be due to several reasons. First, check the transmission oil level and fill it to the “F” mark on the dipstick when the transmission is cold. Another potential cause is the motion control linkage, which may need adjustment, repair, or replacement. Additionally, a sticking brake or a brake adjustment that is too tight can also cause this issue. In these cases, repair the linkage, replace the brake assembly, or adjust the brake accordingly.
M
Michelle FosterAug 3, 2025
Why my Toro 520XI Tractor will not operate in either direction?
- C
  christian63Aug 3, 2025
  If your Toro Tractor won't operate in either direction, the issue could stem from several causes. Begin by checking the transmission oil level and fill it to the “F” mark on the transmission oil dipstick when the transmission is cold. Another potential problem is the control linkage, which may require adjustment, repair, or replacement. Ensure that the parking brake is fully released, and if not, check its linkage. Other possible causes include a damaged drive shaft or wheel hub key (replace if necessary), a faulty transmission/transaxle (repair or replace), or a dirty power steering filter (clean it).
R
Robert CoxAug 7, 2025
What to do if my Toro 520XI Tractor operates with loss of power when hot?
- D
  Dustin RobertsAug 8, 2025
  If your Toro Tractor operates in both directions but experiences a loss of power, which worsens as the transmission heats up, there are several possible causes. Firstly, ensure that the transmission oil level is at the full “F” mark on the transmission dipstick when the transmission is cold. Secondly, if the transmission shows signs of overheating or water contamination, replace the transmission oil and filter. Also, check the cooling fan and transmission cooling fins for faults or dirt; clean the transmission and/or replace the fan if needed. Furthermore, make sure the engine is operating at full throttle. Lastly, a dirty power steering filter can contribute to this problem, so clean it.
P
Patricia JohnsonAug 12, 2025
Why is my Toro Tractor slow in forward and doesn't operate in reverse?
- J
  Julia JohnsonAug 12, 2025
  If your Toro Tractor goes forward only at partial speed and is slow or does not operate in reverse, there are several potential causes. First, ensure that the cruise control is turned off, as it may have been engaged when the High-Low range lever was in “N.” Next, verify that the engine is running at full speed by moving the throttle to “FAST.” Also, check the linkage and adjust if necessary to ensure full motion is obtained on the motion control shaft. Finally, internal hydro wear could be the issue, in which case you may need to repair or replace the transmission.
C
Carl WadeAug 16, 2025
How to prevent Toro 520XI Tractor transmission from overheating?
- E
  Eric HardyAug 16, 2025
  If your Toro Tractor transmission is overheating, there are several potential causes and solutions: 1. Ensure the engine is operating at full throttle by increasing the engine speed. 2. Check the transmission oil level and fill to the full “F” mark on the dipstick when the transmission is cold. 3. Clean any accumulation of dirt and debris on the hydrostatic transmission. 4. Inspect the fan for looseness or broken blades, and repair or replace as necessary.
G
George CarlsonAug 20, 2025
Why does my Toro Tractor operate erratically?
- M
  Michelle PierceAug 20, 2025
  If your Toro Tractor operates erratically, several factors could be responsible. The transmission control linkage may need adjustment, repair, or replacement. Additionally, a low transmission oil level could be the cause; ensure it is filled to the full “F” mark on the transmission oil dipstick when the transmission is cold. Lastly, the transmission itself might be faulty, requiring repair or replacement.

Toro 520XI Specifications

General

Fuel Type	Gasoline
Engine Cylinders	2
Transmission	Hydrostatic
Drive	2WD
Cutting Width	52 inches
Turning Radius	18 inches

Summary

Tractor Chassis Service

Chassis Model and Serial Number Location

Location of the tractor's model and serial number plate and engine identification.

Chassis Greasing and Lubrication

Procedures and service intervals for greasing and lubrication points on the chassis.

Rear Fenders, Footrests, and Tunnel Removal

Information on removing and reinstalling the rear fenders, footrest, and tunnel assembly for chassis access.

Front Wheel Toe-In Adjustment

Procedure for checking and adjusting the front wheel toe-in alignment for proper steering.

Steering Wheel Service

Procedures for removing and reinstalling the steering wheel on the tractor.

Power Steering System

General information and maintenance procedures for the tractor's power steering system.

Smart Turn Steering System

Explanation of the Smart Turn Steering feature and its impact on tractor speed during turns.

Motion Control Pedal Adjustment

Adjustment procedure for the motion control pedal to ensure correct operation.

Tire Pressure Specifications

Recommended tire pressure and its importance for mower deck leveling and tractor performance.

Fuel Tank Shut-Off Valve

Location and function of the fuel tank shut-off valve for safety and maintenance.

Electric PTO Clutch Service

General information and break-in procedure for the heavy-duty electric PTO clutch.

Drive Shaft Inspection and Assembly

Procedures for inspecting and assembling the tractor's drive shaft.

Hydrostatic Drive System

Hydrostatic Drive Troubleshooting

Common problems and corrective actions for the hydrostatic drive system, including bogging and erratic operation.

Transaxle Fluid Service

General information, checking, changing transaxle fluid, and replacing the filter.

Brake System Operation and Adjustment

General information and adjustment procedure for the external band parking brake.

Hydrostatic Neutral Adjustment

Procedure for adjusting the hydrostatic transmission linkage to ensure a proper neutral position.

Gasoline Engine Service

Gasoline Engine Troubleshooting

Common engine starting, running, and performance issues and their corrective actions.

Air Cleaner Maintenance

Service interval and cleaning instructions for foam and paper air cleaner elements.

Engine Oil Change Procedure

Service interval and step-by-step procedures for changing the engine oil.

Oil Filter Replacement

Service interval and procedure for changing the engine oil filter.

Spark Plug Service

Specifications, service interval, and installation instructions for spark plugs.

Fuel Filter Replacement

Service interval for replacing the fuel filter to ensure proper fuel delivery.

Air Cooling System Information

General information on how gasoline engines with air cooling systems function.

Liquid Cooling System Service

General information and maintenance procedures for liquid-cooled gasoline engines.

Diesel Engine Service

Diesel Engine Troubleshooting

Common diesel engine starting, running, and performance issues and their corrective actions.

Diesel Air Cleaner Maintenance

Service interval and cleaning instructions for the diesel engine air cleaner element.

Diesel Engine Oil Change

Service interval and procedures for changing the diesel engine oil.

Diesel Oil Filter Replacement

Service interval and procedure for changing the diesel engine oil filter.

Diesel Cooling System Service

General information and maintenance procedures for the diesel engine cooling system.

Diesel Engine Mounts Inspection

Inspection of diesel engine mounts for damage from chemicals or deterioration.

Diesel Fuel System Maintenance

Information on the diesel fuel filter and water separator, including draining.

Diesel Glow Plugs and Cold Start

Information on glow plugs for fast start-ups and minimizing white smoke in diesel engines.

Electrical System Service

Battery Service and Maintenance

Service interval, removal, installation, electrolyte level, and charging procedures for the battery.

Fuse Specifications and Function

General information and specification of fuses protecting the electrical system.

Headlight Bulb Service

Procedures for removing and installing headlight bulbs.

Instrument Panel Light Replacement

Procedures for removing and replacing instrument panel light bulbs.

Taillight Bulb Replacement

Procedure for removing taillight bulbs.

Electric Clutch Troubleshooting

Troubleshooting the electric PTO clutch by measuring coil resistance.

Safety Interlock System

Purpose and testing procedures for the safety interlock system to prevent accidental starting.

Cruise Control System

General information, theory of operation, and troubleshooting for the cruise control system.

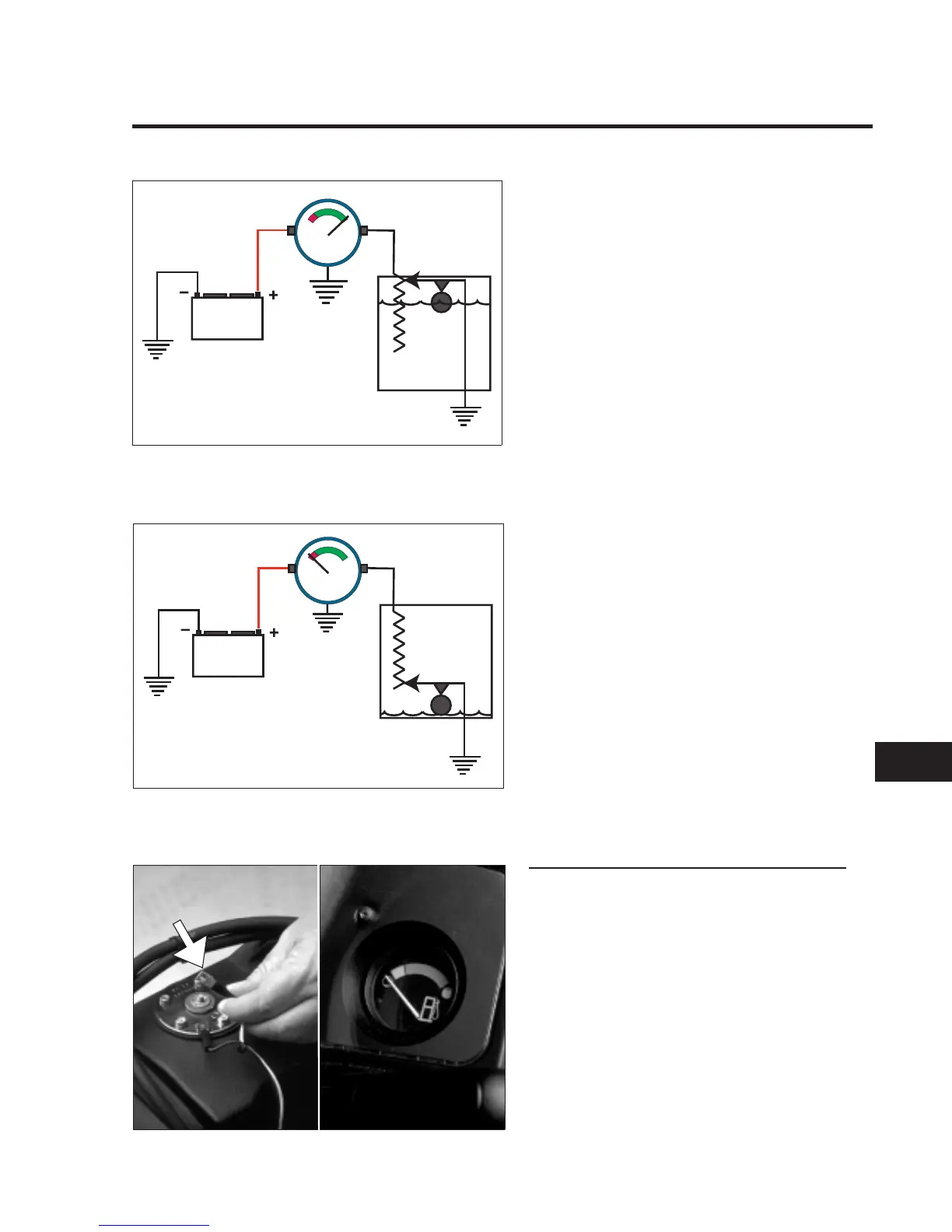

Fuel Gauge System

General information, theory of operation, and troubleshooting for the fuel gauge.

Charging System Testing

General information and testing procedures for the tractor's charging system.

Electrical Schematics

Wiring diagrams for different 5xi series tractor models.
