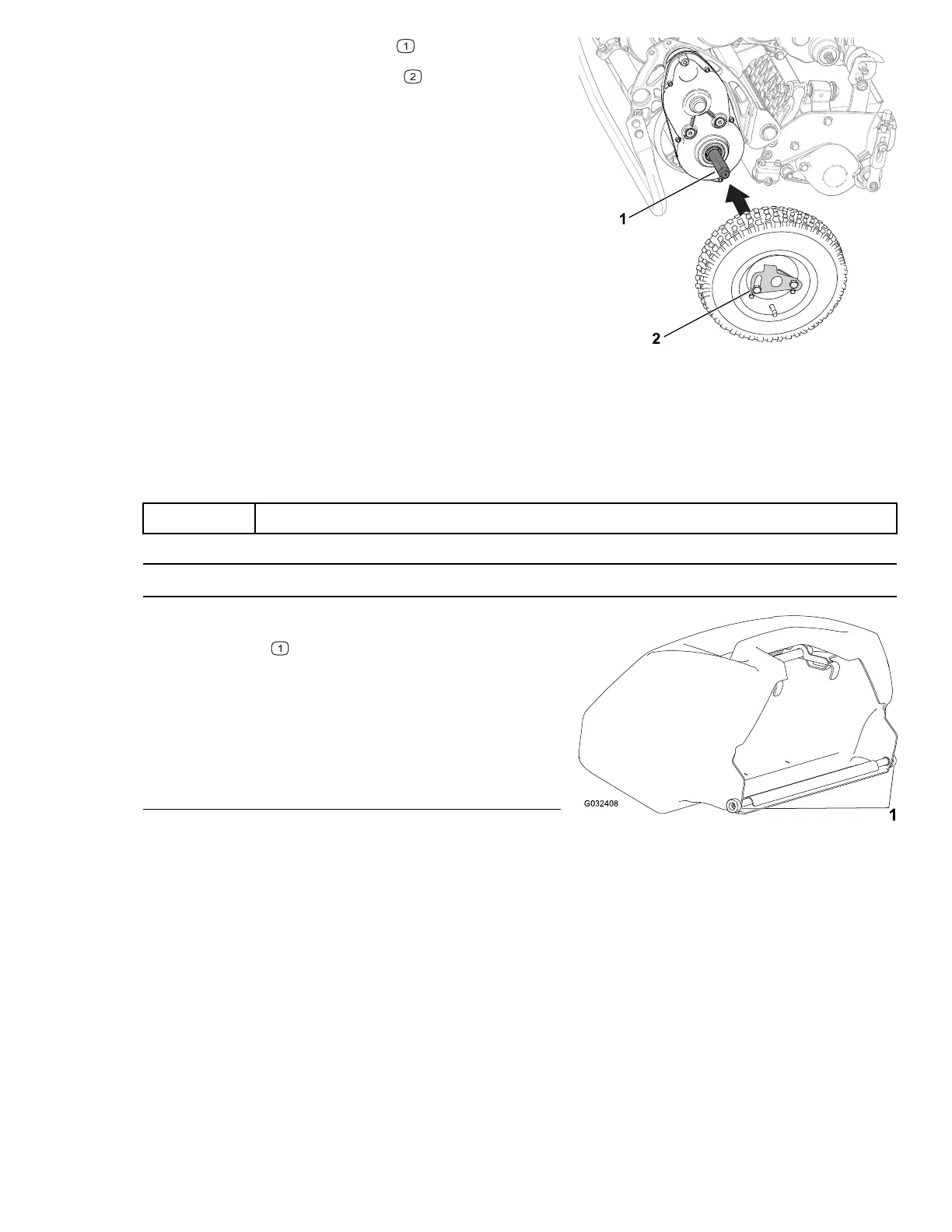

3. Slide a wheel onto an axle .
4. Pivot the wheel-locking clip
away from
center of the wheel, allowing it to slide farther
onto the axle.
5. Rotate the wheel back and forth until it slides
completely onto the axle and the locking clip is
secured in the groove on the axle shaft.
6. Repeat the procedure on the opposite side of
the machine.
7. Carefully lower the machine off the kickstand.
Installing the Grass Basket
Parts Required
1 Grass basket
IMPORTANT
G404688
If you drop the basket, examine the pitch-arm
contact points
near the lower lip of the
basket for damage. Straighten them before
using the basket.
Using the basket with bent pitch-arm contact
points may cause contact between the basket
and cutting unit, causing undesired noise and/
or damage to the basket and cutting unit.
1. Grasp the basket by the handle.
2. Guide the basket lip between the cutting unit side plates and over the front roller.
Setup: Installing the Grass Basket Page 3–2 3460-887 A
