Maintenance

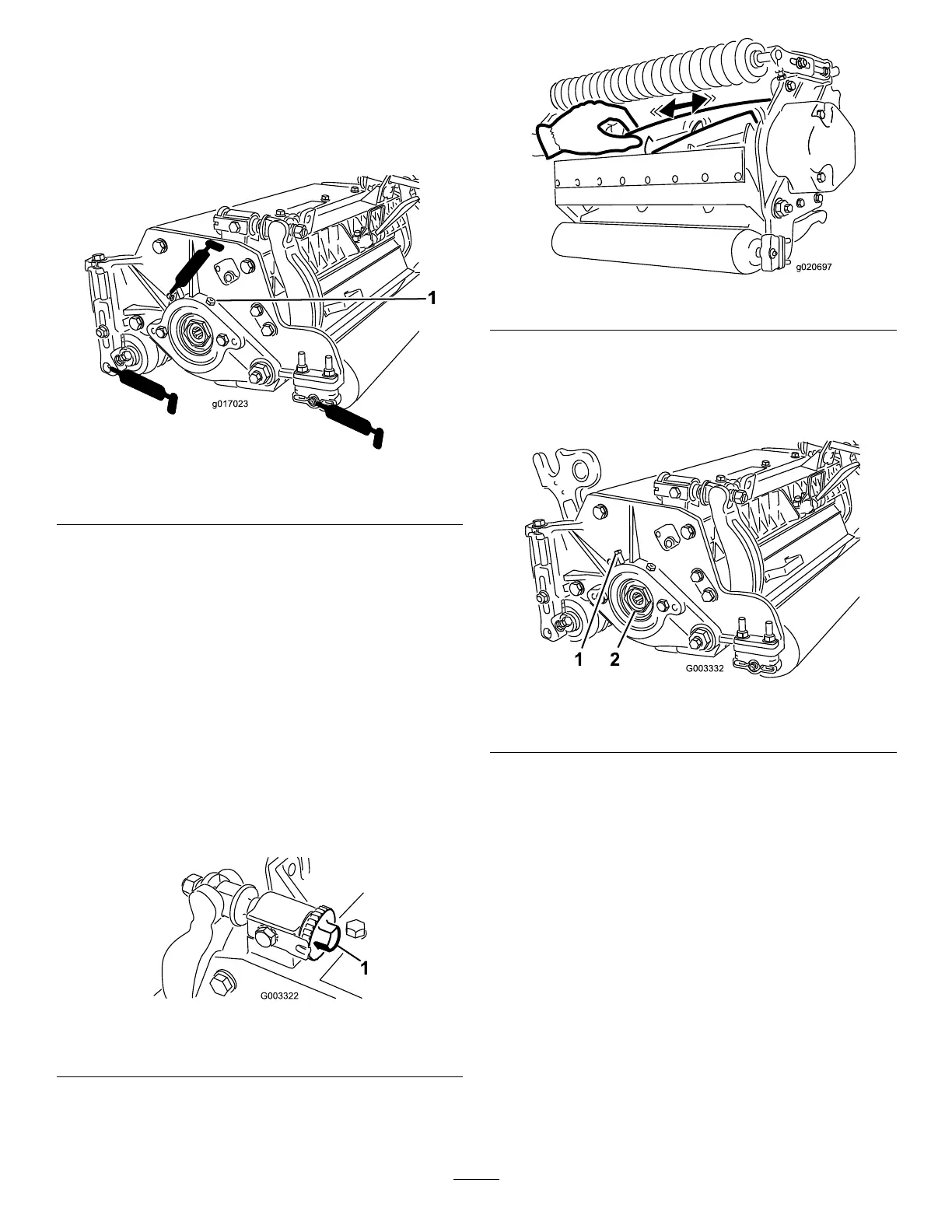

LubricatingtheCuttingUnit
Eachcuttingunithas6greasettings(Figure25)that
mustbelubricatedregularlywithNo.2lithiumgrease.
g017023
Figure25
1.Reliefvalve
Note:Lubricatingcuttingunitsimmediatelyafter
washinghelpspurgewateroutofbearingsand
increasesbearinglife.
1.Wipeeachgreasettingwithacleanrag.
2.Applygreaseuntilcleangreaseisseencoming
outofrollersealsandbearingreliefvalve.
3.Wipeexcessgreaseaway.
AdjustingtheReelBearings
Toensurelonglifeofthereelbearings,periodically
checkifreelendplayexists.
1.Loosenreeltobedknifecontactbyturning
thebedknifeadjustingknobs(Figure26)
counterclockwiseuntilnocontactexists.
g003322
Figure26
1.Bedknifeadjustingknob
2.Usingaragorthicklypaddedglove,holdonto
thereelbladeandtrytomovethereelassembly
sidetoside(Figure27).
g020697
Figure27
3.Ifendplayexists,proceededasfollows:
A.Loosenexternalsetscrewsecuringbearing
adjustingnuttobearinghousinglocatedon
theleftsideofthecuttingunit(Figure28).
g003332
Figure28
1.Setscrew
2.Nut
B.Usinga1-3/8inchsocketwrench,slowly
tightenthereelbearingadjustmentnut
untilnoendplayofthereelexists.Ifthe
adjustingnutdoesnoteliminatereelend
play,replacethereelbearings.
Note:Reelbearingsdonotrequire
preload.Overtighteningthereelbearing
adjusternutwilldamagereelbearings.
4.Tightenthesetscrewsecuringbearingadjusting
nuttothebearinghousing.Torquethesetscrew
to1.4to1.7N∙m(12to15in-lb).
