14.Repeatthisprocedureontheotherendofthe
cuttingunit.
15.Adjustthebedknifetothereel.
ServicingtheRoller
TherollerRebuildKit,PartNo.114-5430andtheRollerRebuildToolKit,PartNo.115-0803(Figure34)are
availableforservicingtheroller.TheRollerRebuildKitincludesallthebearings,bearingnuts,innersealsand
outersealstorebuildaroller.TheRollerRebuildToolKitincludesallthetoolsandtheinstallationinstructions
requiredtorebuildarollerwiththerollerrebuildkit.RefertoyourPartsCatalogorcontactyourAuthorized
ToroDistributorforassistance.

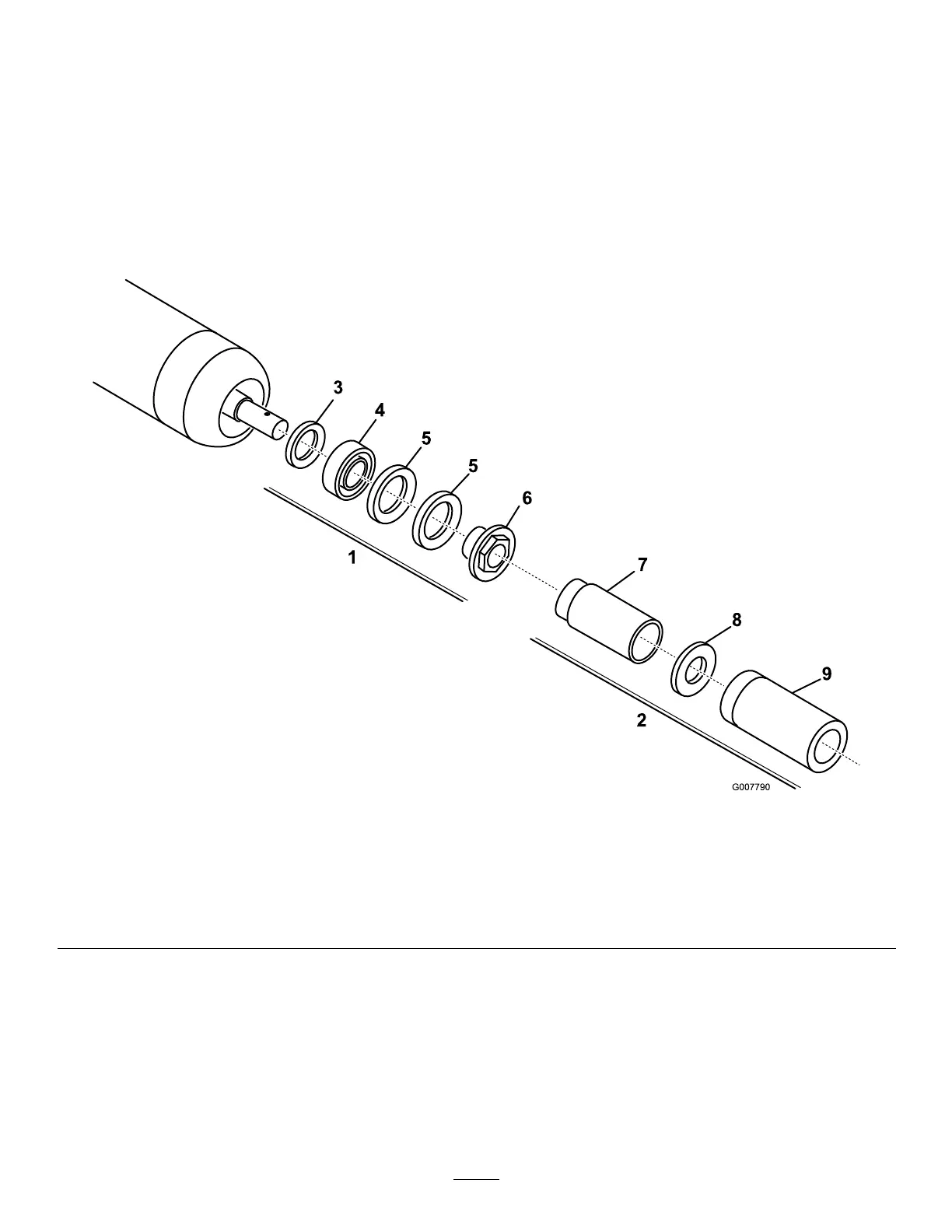

g007790
Figure34
1.RollerRebuildKit(PartNo.114-5430)
6.Bearingnut
2.RollerRebuildT oolKit(PartNo.115-0803)
7.Innersealtool
3.Innerseal8.Washer
4.Bearing
9.Bearing/outersealtool
5.Outerseal
21
