g294046

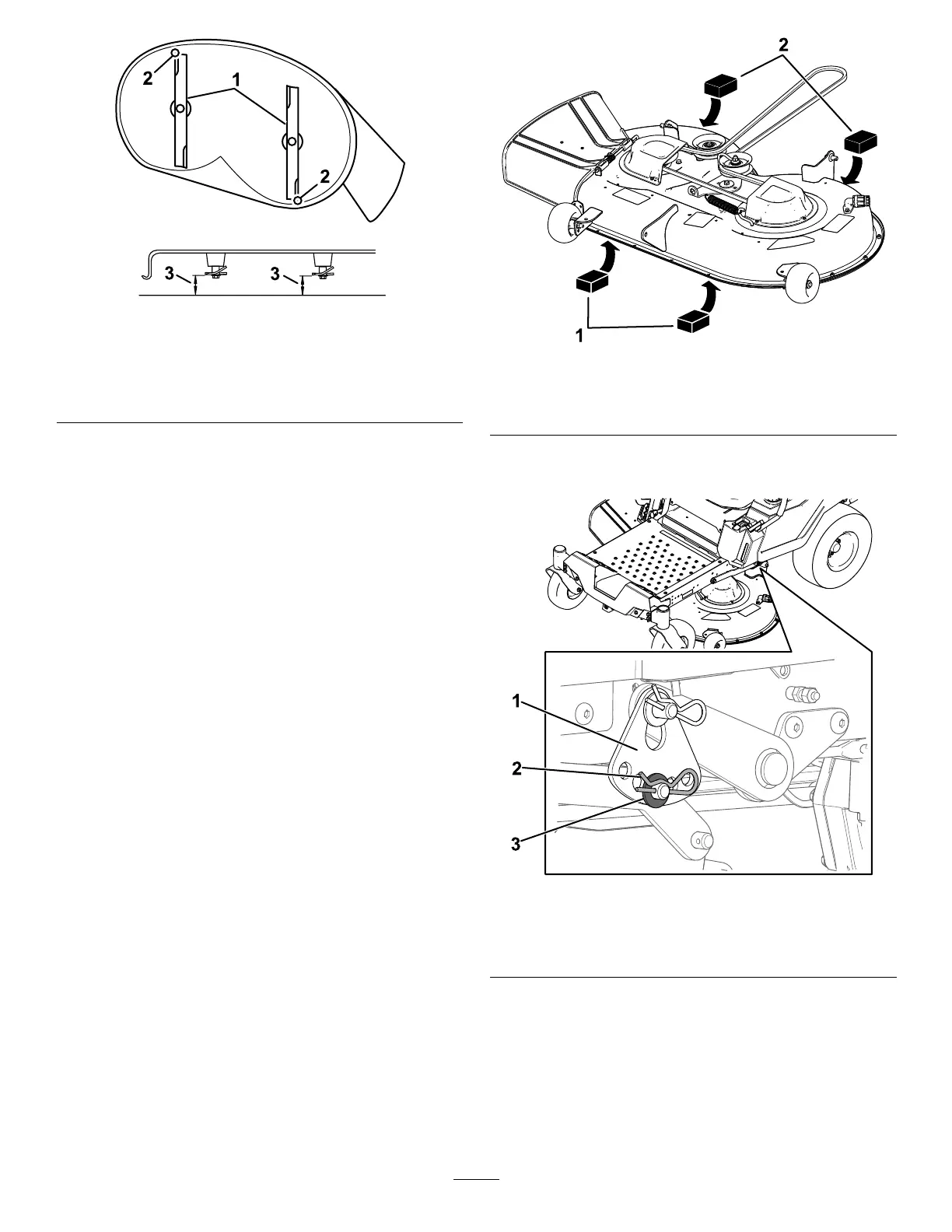

Figure 67
1. Blades front to rear 3. Measure from the tip of the
blade to the at surface
here.
2. Outside cutting edges
Leveling from Side to Side
1. Move to the left side of the machine.
2. Set the anti-scalp rollers to the top holes or
remove them completely for this procedure; refer
to Adjusting the Anti-Scalp Rollers ( page 23 ) .
3. Set the height-of-cut lever to the 76 mm (3 inch)
position; refer to Adjusting the Height of Cut
( page 22 ) .
4. Place 2 blocks, each having a thickness of 6.6
cm (2-5/8 inches), under each side of the front
edge of the deck but not under the anti-scalp
roller brackets ( Figure 68 ).
5. Place 2 blocks, each having a thickness of 7.3
cm (2-7/8 inches), under the rear edge of the
cutting deck skirt, 1 on each side of the cutting
deck ( Figure 68 ).
g294196
Figure 68
1. W ood block—6.6 cm
(2-5/8 inches) thick
2. W ood block—7.3 cm
(2-7/8 inches) thick
6. Remove the hairpin cotter and washer from the
lower lift-arm pin ( Figure 69 ).
g294197
Figure 69
1. Height-of-cut plate
3. W asher
2. Hairpin cotter
7. Rotate the height-of-cut plate to a dif ferent hole
so that it supports the weight of the mower deck
after you install the plate ( Figure 70 ).
45
