Dec. 1996 © TOSHIBA CORP. 1 - 35 2060, 2860/70 ADJUSTMENT

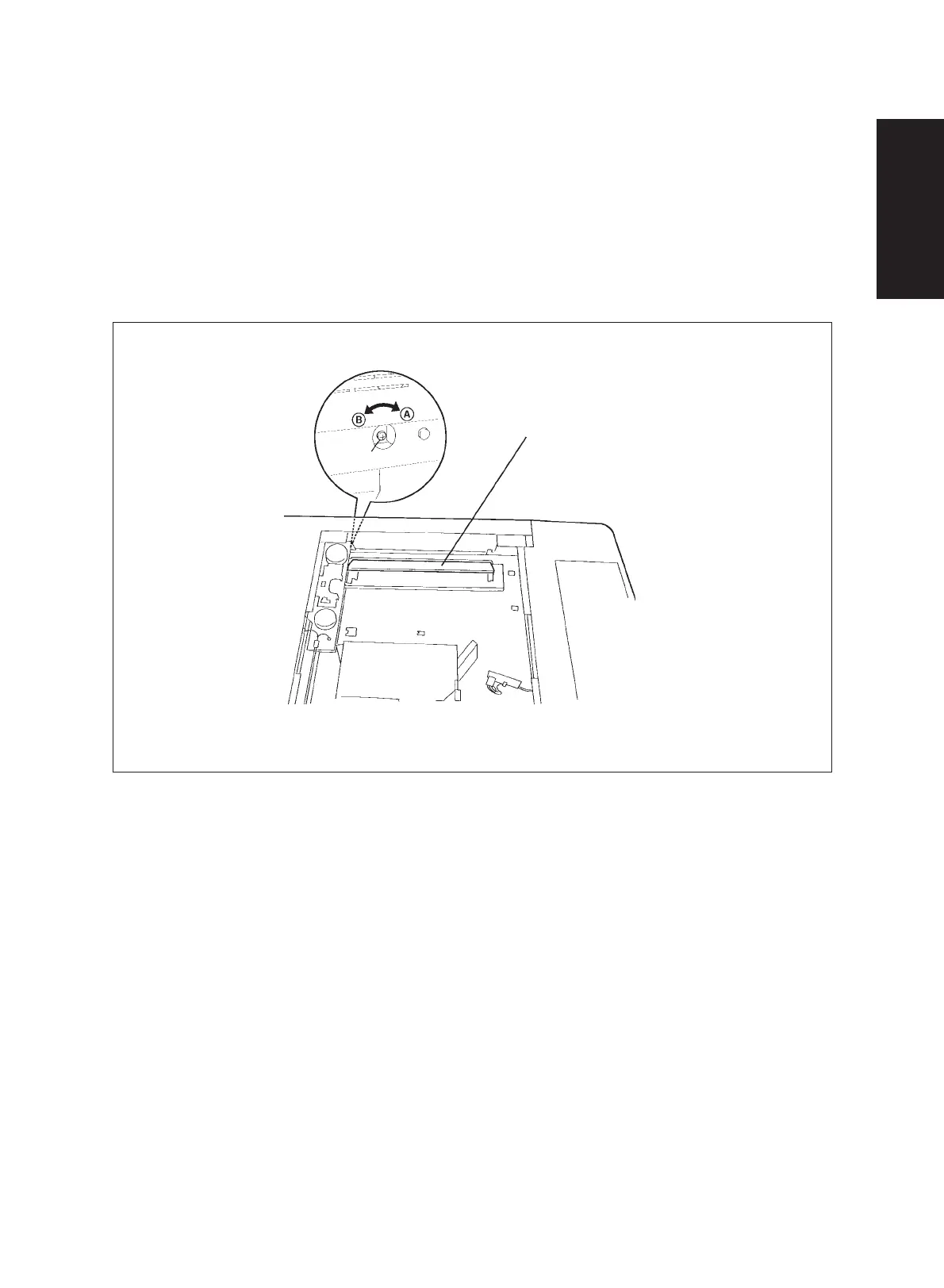

(8) Slant the mirror unit by turning the adjustment screw for the mirror unit. Compare values estab-
lished in steps (4) (front side) and (5) (rear side).
In case of value “A” > value “B”: rotate the screw in direction of the arrow A.
In case of value “A” < value “B”: rotate the screw in direction of the arrow B.
(9) Reinstall the feed cover.
(10) Make a copy to check the focus. If necessary, repeat 1 to 8.
Mirror unit
Adjustment screw
To Next Page
