No. Part to be replaced Work procedure Remarks
1 Cabinet
(continued)

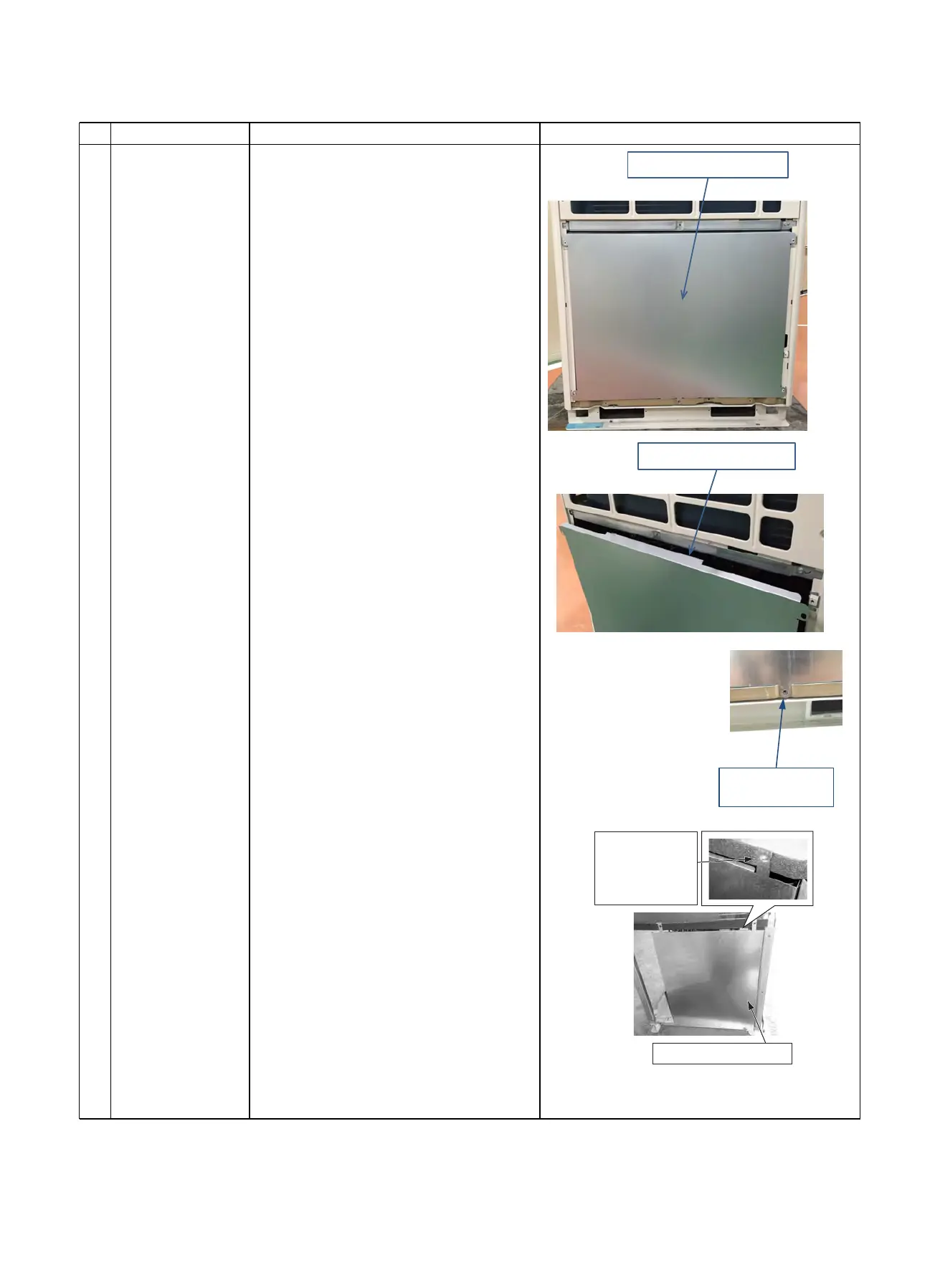

6) Remove the protective plate (1) (back).
Remove the upper hook from the middle partition
plate, and then remove the lower hook from the
center hole of the bottom plate.
7) Remove the screws for the discharge cabinet side
cabinet.
Left and right: (M5 × 0.4" (10mm), 6 pcs. each)
8) Remove the hook of the protective plate (side)
from the hole of the middle partition plate.
(2 locations)
2.. Attachment
Carry out installation by following the detachment
procedure in reverse 8) → 1).
Be careful of the hooks provided on the suction
cabinet, service panel and lower cabinet.
6) Remove the lower
hook of the protective
8)) Protective plate (sid
8)
Remove the hook
of the protective plate
(side) from the hole of
the middle partition
plate (2 locations)
− 237 −
6)
Protective plate ( back )
6)
Protective plate ( back )
To Next Page
