− 263 −

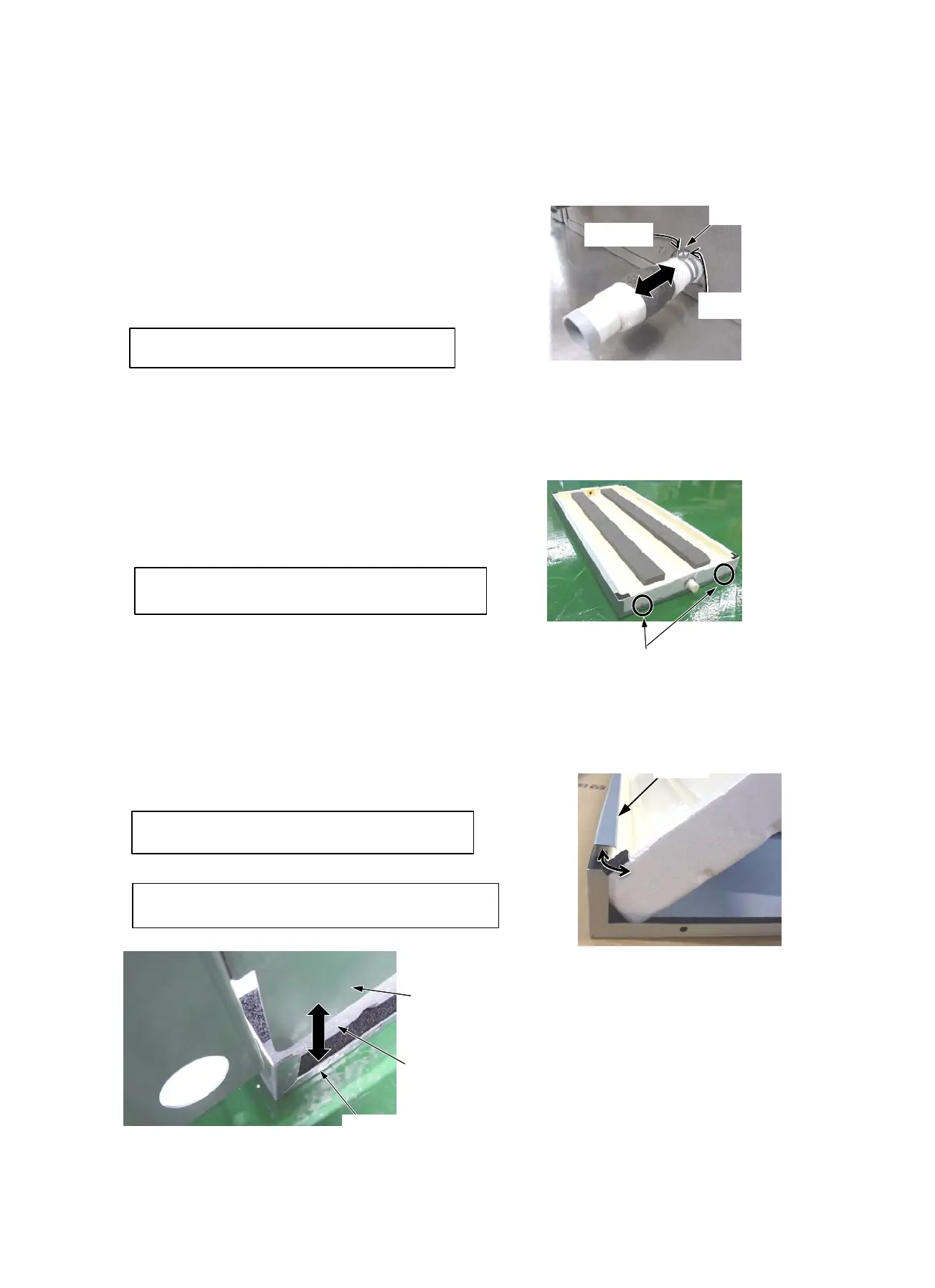

8. Drain hose
1 Detachment
1) Drain the drain water accumulated in the Drain pan.
2) Remove the Drain hose while picking the claws
of the hose band.
2 Attachment
1) Pinch the claw of the horse band and make it loosen,
then insert the drain horse.
9. Bottom plate, Drain pan
1 Detachment
1) Perform work of procedure 8. -1). (Drain hose)
2) Take off the fixing screws (φ 4 x 0.3" (8mm), 4 pcs)
3) Remove the Bottom plate and Drain pan together.
4) Remove the Drain pan from the Bottom plate while
tilting it.
2 Attachment
1) Fit the Drain pan to the Bottom plate while tilting
it as before.
2) Fit the Bottom plate and Drain pan together to the cabinet.
3) Fit the fixing screws. (φ4 x 0.3" (8mm), 4 pcs)
4) Attach the Drain hose. (Refer to 8. -2))
Cabinet
Drain pan
Bottom plate
Edge
Claws
Picking
Picking
Position of the screw holes
(both side of the Bottom plate)
Insert the hose surely to the end of Drain pan
that the joints does not have water leak
Be careful, the Drain pan should not be damaged by
the edge of Bottom plate.
Be careful, the Drain pan should not be damaged by
the edge of Bottom plate.
The flange of the bottom plate is located outside of
sheet metal of the cabinet.
To Next Page
