– 264 –

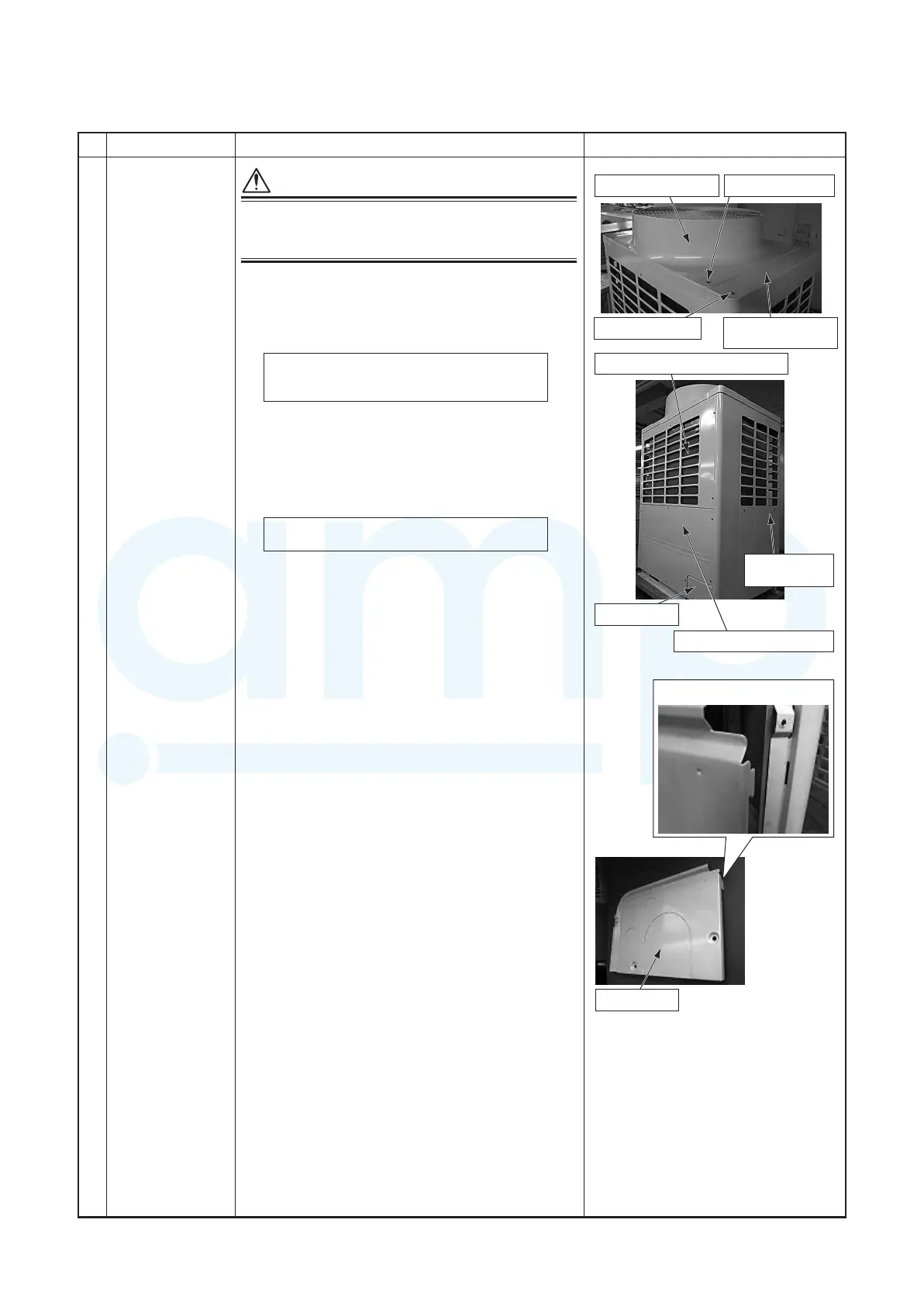

12. OUTDOOR UNIT PARTS REPLACEMENT METHODS
Cabinet
No. Part to be replaced Work procedure Remarks
1
WARNING
Wear a pair of gloves.
Otherwise, you will risk an injury involving a
replacement part or some other object.
1. Detachment
1) Stop the air conditioner operation, and turn off the
circuit breaker.
2) Remove the screws for the discharge cabinet.
(M5 × 16, 4 pcs.)
With a 12, 14 HP unit, the discharge cabinet
side covers need to be removed.
Left and right: (M5 × 16, 2 pcs.) – 2 sets
In the case of a 12, 14HP unit: M5 × 10, 5 pcs.
each
3) Remove the screws for the lower cabinet.
Front and rear: (M5 × 10, 7 pcs. for front and 6 pcs.
for rear)
4) Remove the screws for the service panel.
(M5 × 10, 2 pcs.)
5) Remove the screws for the suction cabinet.
Front and rear: (M5 × 10, 4 pcs. each)
6) Remove the screws for the discharge cabinet side
cabinet.
Left and right: (M5 × 10, 6 pcs. each)
2. Attachment
Carry out installation by following the detachment
procedure in reverse (6) → 1)).
Be careful of the hooks provided on the suction cabinet,
service panel and lower cabinet.
2) Discharge cabinet Screws (4 corners)
Screws (4 corners)
5) Suction cabinet (front and rear)
4) Service panel
3) Lower cabinet (front and rear)
6) Side cabinet
(left and right)
Discharge cabinet
side cover
Hook
Service panel
