– 96 –

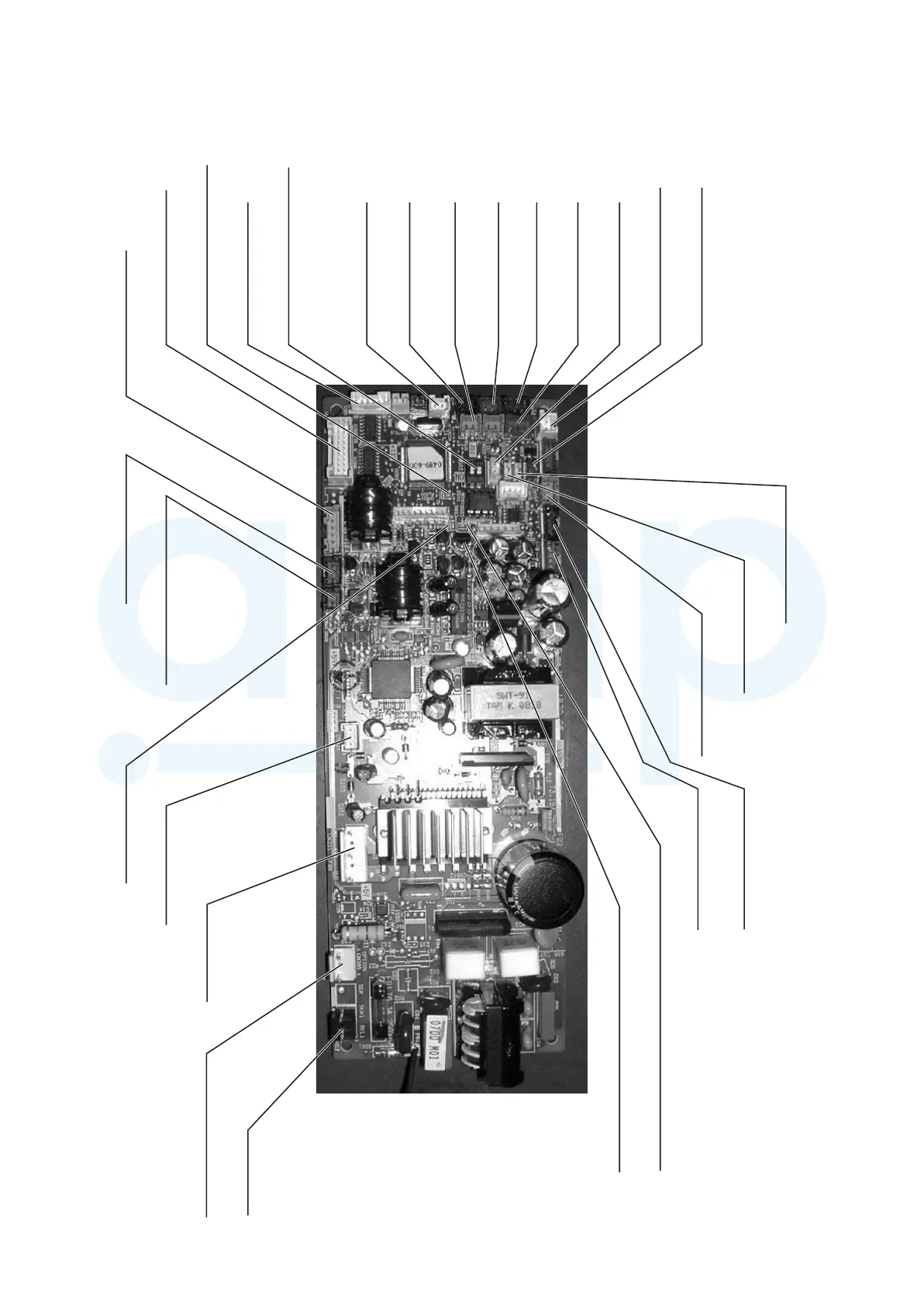

6-2. Indoor Printed Circuit Board
MCC-1570 <4-way Cassette Type> (MMU-AP
∗∗∗
2H)
TA sensor CN104(yellow), DC5V TCJ sensor CN102(red), DC5V TC2 sensor CN101(black), DC5V FAN DRIVE CN32(white), DC12V . Optional output CN60(white), DC12V
Optional power supply CN309(yellow), AC200V
Power supply CN67(black)
Microcomputer power source LED D501(red)
DC fan output CN333(white)
Louver CN510(white), DC12V
Indoor/outdoor communication CN40(blue)
DC fan return CN334(white)
HA(T10) CN61(yellow), DC12V
Remote controller CN41(blue), DC20V
Remote controller communication LED D504(green)
High-ceiling adjustment SW SW501 TC1 sensor CN100(brown), DC5V Float SW CN34(red), DC12V FILTER CN70(white), DC5V Drain pump CN504(white), DC12V
Indoor/outdoor-cum-central control communication D503(yellow) Remote controller power source LED D403(red)
EXCT CN73(red), DC5V
External error input CN80(green), DC12V
CHK CN71(white), DC5V
Output for FS unit CN81(black), DC12V
PMV output CN82(blue), DC12V
DISP CN72(white), DC5V
* Doubling as central
control communication
