– 54 –

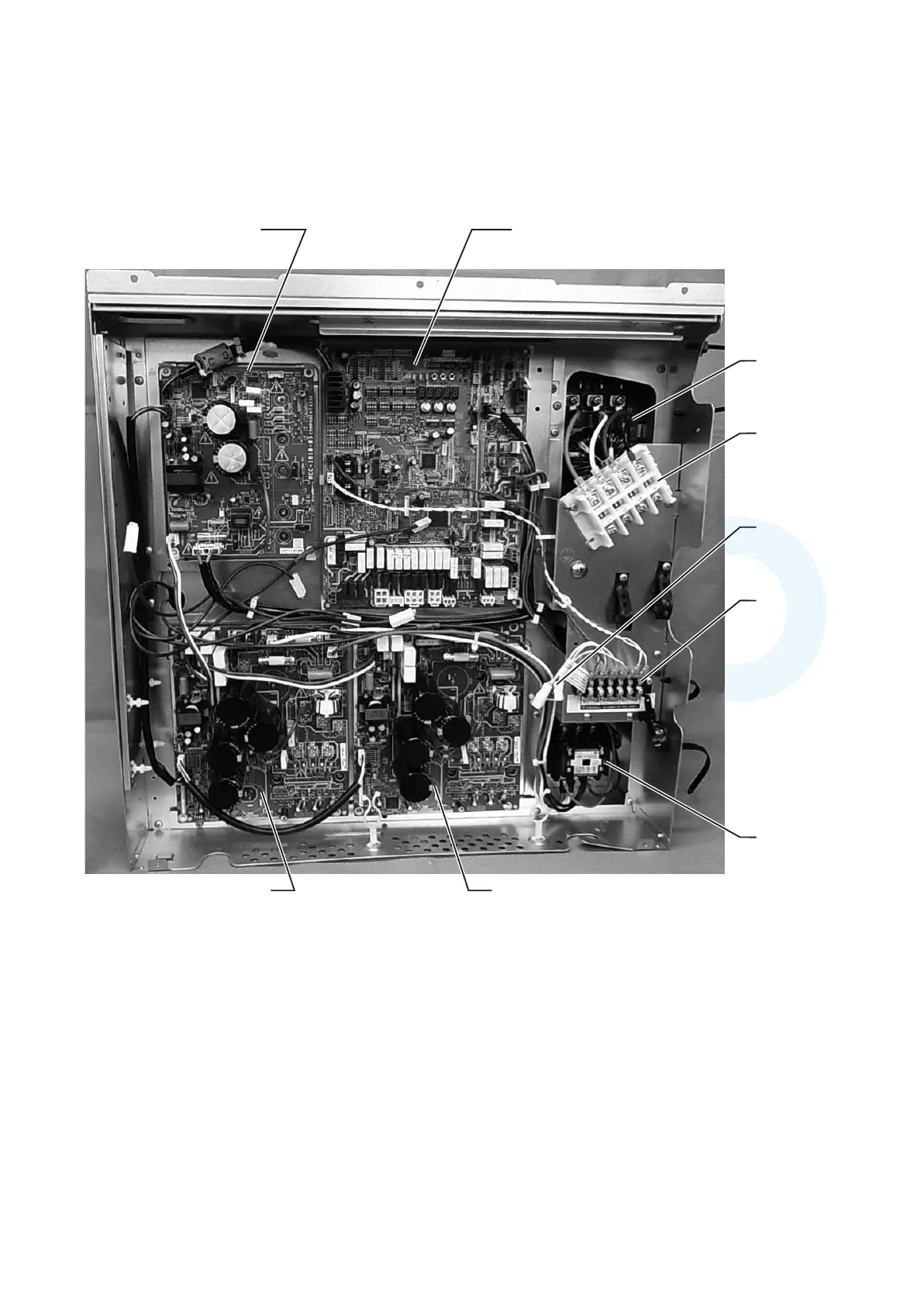

2-6. Parts Layout in Inverter Assembly
Outdoor Unit (8, 10, HP)
Model: MMY-MAP0804FT
∗
, MAP1004FT
∗
Inverter P.C. board for fan
[Fan IPDU]
(MCC-1610)
Inverter P.C. Board for
Compressor 1
[A3 IPDU]
(MCC-1596)
Inverter P.C. Board for Compressor 2
[A3 IPDU]
(MCC-1596)
Interface P.C. board
[Outdoor control P.C. board]
(MCC-1606)
Power supply
terminal block
Noise Filter
P.C. board
(MCC-1608)
Communication
terminal block
Relay
connector for
central control
Magnet switch
