– 58 –

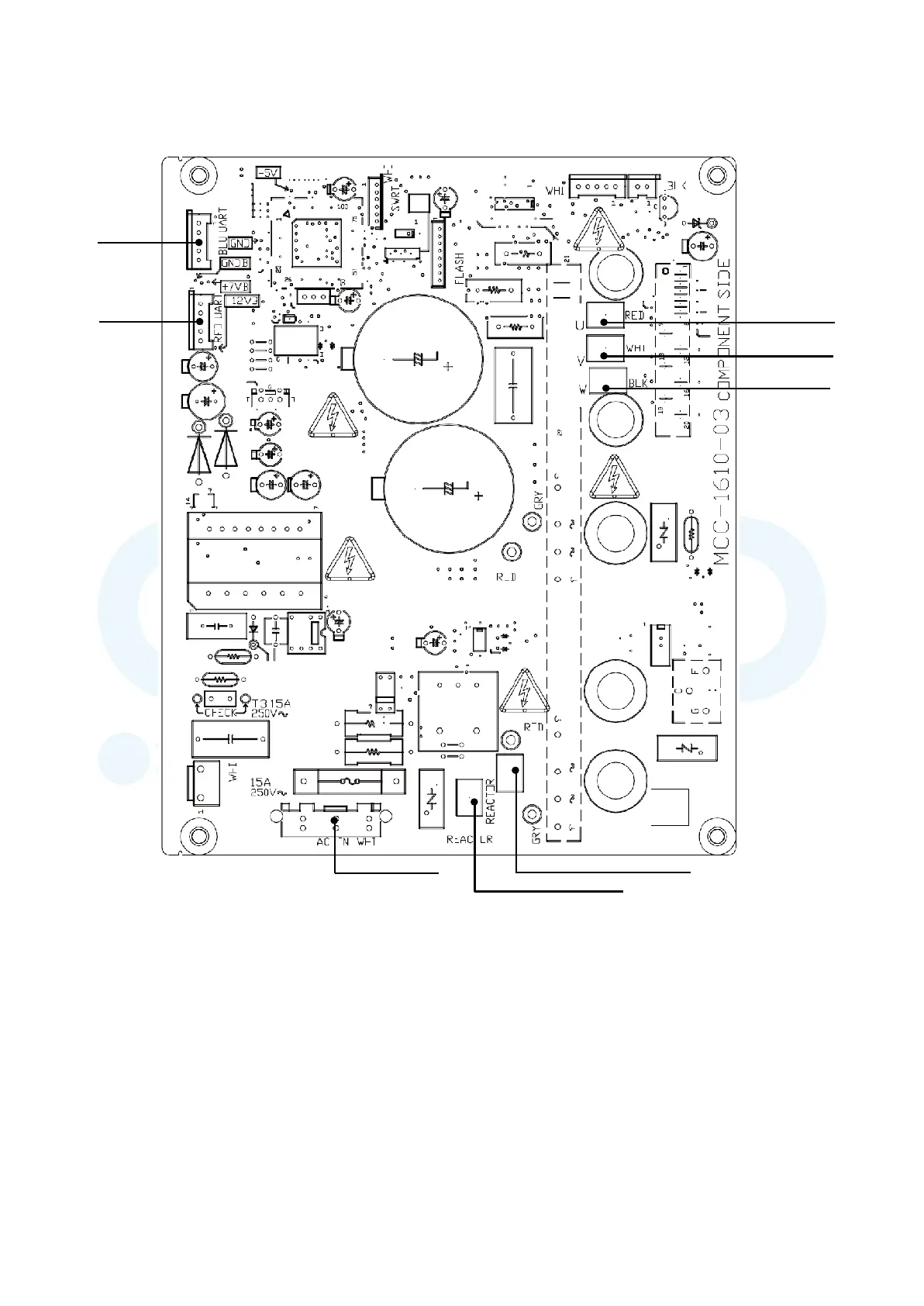

2-7-3. Inverter P.C. board for fan (MCC-1610)
CN505
CN504
CN500
CN702
CN602
CN705
CN704
CN703
CN705
CN704
CN703
CN504
CN505
Power supply input
CN500
CN510
CN511
CN502
CN511
CN510
Fan motor output U-phase
Fan motor output V-phase
Fan motor output W-phase
UART
communication
between
interfaces
UART
communication
between
A3-IPDU
Reactor connecting terminal
Reactor connecting terminal
